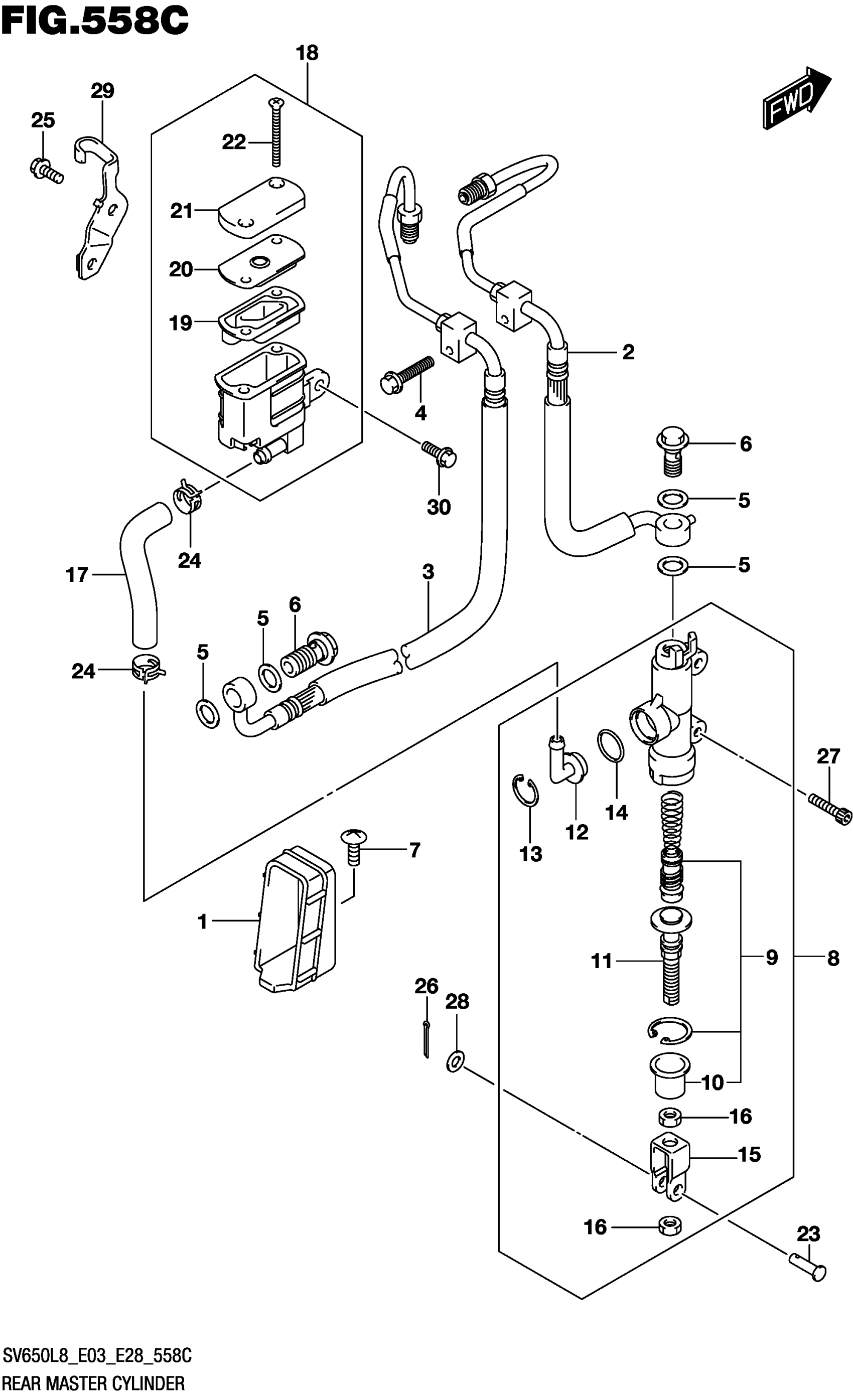

Suzuki SV650AL8 (2018) REAR MASTER CYLINDER (SV650AL8 E28) Diagram

#

Description
Price

1

GUIDE,RR BRAKE HOSE

69243-44H00

Unavailable

2

HOSE ASSY, RR MASTER TO UNIT

69200-18K00

$98.30

3

HOSE ASSY, RR UNIT TO CLPR

69400-18K00

$109.73

4

BOLT

01547-0630B

$2.73

5

WASHER (10X15X1.5)

09161-10009

$1.84

6

UNION (10X1.25X22)

09360-10062

$6.43

7

SCREW

02142-0616A

$1.49

8

CYLINDER ASSY,RR MASTER

69600-44H00

Unavailable

9

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

10

.BOOT

69691-00A00

$5.30

11

.ROD,PUSH

69670-48B00

$26.97

12

.CONNECTOR

69672-00B20

$7.01

13

.CIRCLIP

69674-00B20

$3.97

14

.O-RING

69686-34200

$2.93

15

.YOKE

69692-44H00

$16.87

16

.NUT

69693-05A00

$1.96

17

HOSE, REAR RESERVOIR TANK

69731-18K00

Unavailable

18

TANK ASSY,RESERVOIR

69740-18K00

$28.10

19

.DIAPHRAGM

69667-01H00

$6.30

20

.PLATE,DIAPHRAGM

69668-01H00

$5.98

21

.CAP

69669-18K00

$14.37

22

.SCREW

69689-01H00

$4.45

23

PIN (6X18.2)

09200-06068

$4.11

24

CLIP (ID:12)

09401-12404

$2.34

25

BOLT

01547-0612A

$2.03

26

PIN

04111-2015A

$1.49

27

BOLT (6X25)

07130-0625A

$2.62

28

WASHER

08322-0106A

$1.84

29

BRACKET,RR RESERVOIR TANK

69750-18K10

$13.63

30

BOLT

01547-0616A

$2.03
