2018 Suzuki SV650AL8 Headlamp Cover Diagram

← All diagrams

Find the part on the Headlamp Cover diagram for your 2018 Suzuki SV650AL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

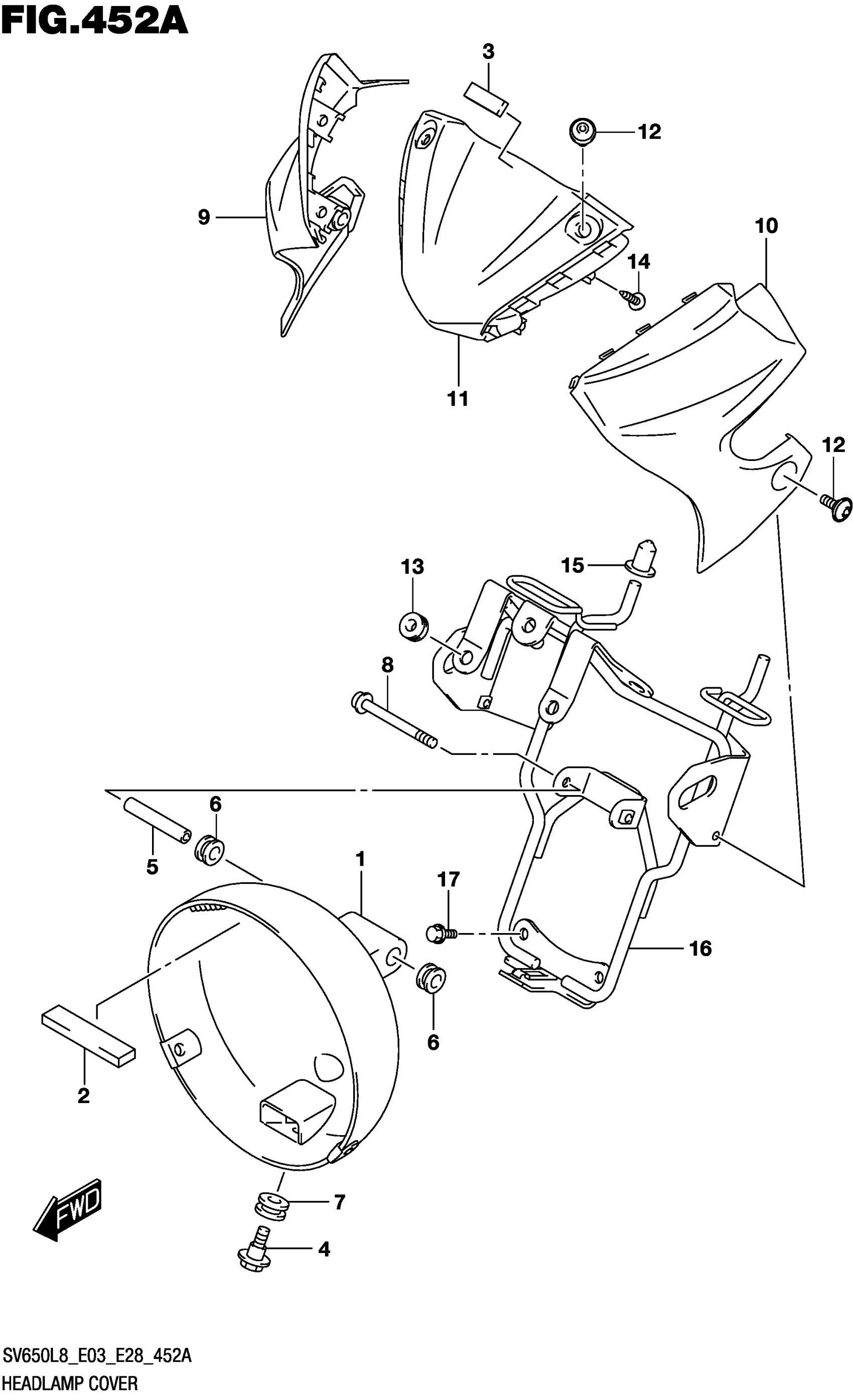

2018 Suzuki SV650AL8 Headlamp Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,HEADLAMP

51811-18K01

1
Out of stock

2

CUSHION (15X70X7)

51827-13G00

1
Out of stock

3

CUSHION,METER COVER (10X30X5)

51827-18K00

1
Out of stock

4

SCREW (6X22.5)

09139-06118

1
Out of stock

5

SPACER (6.5X9X51)

09180-06368

1
Out of stock

6

CUSHION (9X18X9.5)

09320-09016

2
Out of stock

7

CUSHION

09320-10501

1

$6.73

In stock

8

BOLT

07120-0665B

1
Out of stock

9-1

COVER,METER,R (BLACK) | FOR YKV

51821-18K00-YKV

1
Out of stock

9-2

1

$98.78

In stock

9-3

1

$95.17

In stock

10-1

COVER,METER,L (BLACK) | FOR YKV

51831-18K00-YKV

1
Out of stock

10-2

1

$96.95

In stock

10-3

1

$95.17

In stock

11

COVER,METER CENTER

51841-18K00

1
Out of stock

12

BOLT (5X13)

09139-05074

4
Out of stock

13

CUSHION (6X18X6)

09320-06504

2
Out of stock

14

SCREW

03541-0512A

4
Out of stock

15

CUSHION,HEADLAMP BRACE

51831-21D00

2
Out of stock

16

BRACE,HEADLAMP This part replaces 51850-18K00.

51850-18K20

1
Out of stock

17

BOLT

01547-0612A

2
Out of stock

18

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR:AGQ=YWW(WHITE)/YSF(BLUE)

SPECIAL NOTE

—
Out of stock
