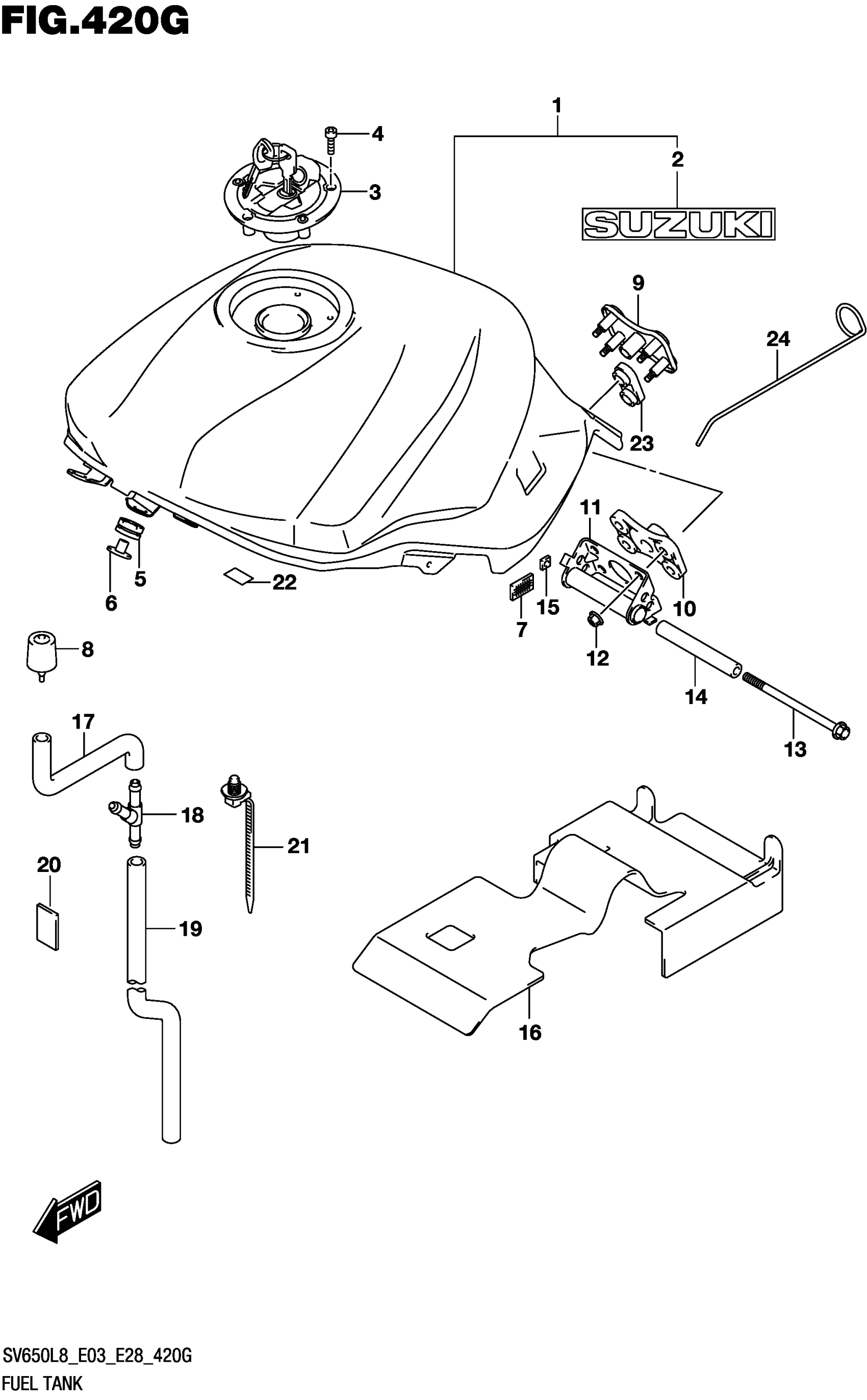

Suzuki SV650AL8 (2018) FUEL TANK (SV650AL8 E33) (FOR YVB,YKV) Diagram

#

Description
Price

1-1

TANK ASSY,FUEL (BLACK) This part replaces 44100-18K60-YVB.

44100-18K61-YVB

$943.77

1-2

TANK ASSY,FUEL This part replaces 44100-18K70-YKV.

44100-18K71-YKV

$918.68

2-1

.EMBLEM (GRAY) | FOR YVB

68111-47C10-YLF

$15.37

2-2

.EMBLEM, "SUZUKI" (BLACK) | FOR YKV

68111-47C20-KGL

$20.07

3

CAP SET,FUEL TANK FILLER

44200-17820

$218.08

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

5

CUSHION,FUEL TANK FRONT

44511-18K00

$6.47

6

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

7

FASTENER (33X25X2.6)

44572-13G00

$11.07

8

CUSHION,FUEL TANK RR This part replaces 44542-29G00.

44542-29G01

$7.72

9

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

10

CUSHION,FUEL TANK RR LWR

44542-18K00

$17.95

11

BRACKET,FUEL TANK RR

44530-44H00

Unavailable

12

NUT

08319-3106A

$2.03

13

BOLT (6X100)

09103-06060

$2.50

14

SPACER,FUEL TANK

44561-35F00

$13.88

15

NUT

08318-1106A

Unavailable

16

SHEET,HEAT SHIELD RUBBER

44191-18K00

$57.25

17

HOSE, FUEL TANK DRAIN NO.1

44423-18K00

Unavailable

18

JOINT,DRAIN HOSE

09367-08010

Unavailable

19

HOSE, FUEL TANK DRAIN NO.2

44423-18K10

Unavailable

20

SHIELD,DRAIN HOSE HEAT

44427-18K10

$17.18

21

CLAMP (L:170)

09407-17403

$4.91

22

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

23

CUSHION,FUEL TANK RR UPR

44541-18K00

Unavailable

24

STAY, FUEL TANK | OPT

44560-23H00

$44.95
