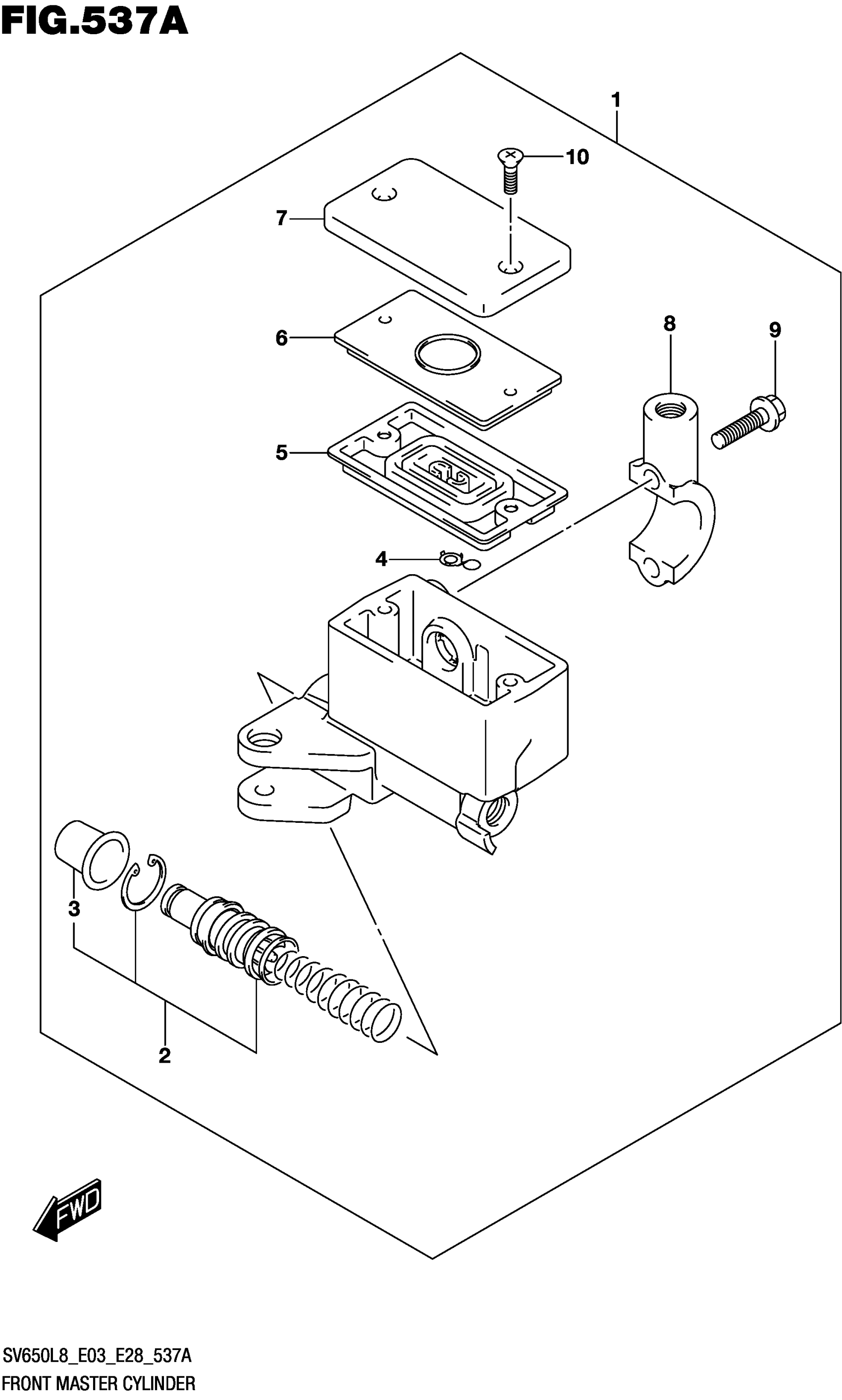

Suzuki SV650AL8 (2018) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,FRONT MASTER

59600-10G50

$277.45

2

.PISTON & CUP SET

59600-45870

$52.73

3

..BOOT

59666-44300

$5.80

4

.PROTECTOR

59664-32F00

$11.68

5

.DIAPHRAGM

59667-49460

$9.78

6

.PLATE,DIAPHRAGM

59668-41C00

$9.32

7

.CAP

59669-10G20

$57.33

8

.HOLDER

59671-32F00

$19.52

9

.BOLT (6X22)

59675-02FA0

$3.82

10

.SCREW

69689-49300

$1.91
