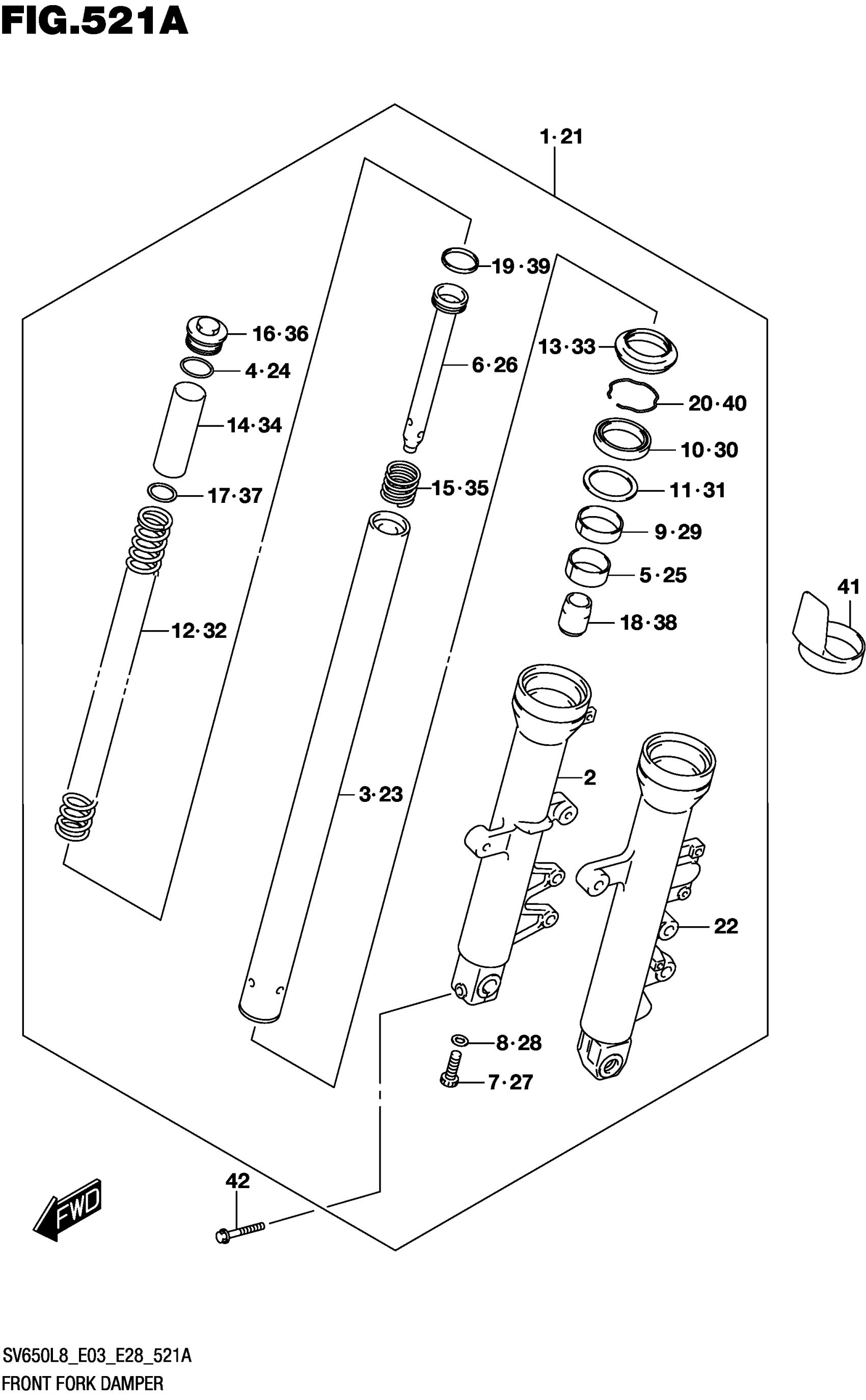

Suzuki SV650AL8 (2018) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH | (BLACK)

51103-44HA0-291

$873.40

2

.TUBE, OUTER RH (BLACK)

51130-44HA0-291

Unavailable

3

.TUBE, INNER

51110-44H00

$472.30

4

.O-RING

51117-12C00

$3.89

5

.BUSH,SLIDE

51121-44H00

$22.80

6

.CYLINDER

51146-17G20

Unavailable

7

.BOLT (8X27)

51147-48130

$4.34

8

O RING This part replaces 51148-31030.

51148-36011

$3.56

9

.BUSH,GUIDE

51152-01H10

$18.25

10

.SEAL,OIL

51153-01H10

$26.91

11

.SPACER, SEAL

51168-17G80

$6.40

12

.SPRING, FRONT

51171-44HA0

Unavailable

13

.SEAL,DUST

51173-01H00

$11.64

14

.COLLAR, SPRING

51176-19C10

Unavailable

15

.SPRING,REBOUND

51177-17G50

Unavailable

16

.BOLT,FORK

51189-47D50

$52.23

17

.JOINT,SPRING

51192-19C00

$5.02

18

.PIECE,OIL LOCK

51195-48B31

$30.22

19

.RING,PISTON

51196-12C00

$8.42

20

.RING,STOPPER

51556-38B00

$7.22

21

DAMPER ASSY, FRONT FORK LH | (BLACK)

51104-44HA0-291

$873.40

22

.TUBE, OUTER LH (BLACK)

51140-44HA0-291

$449.82

23

.TUBE, INNER

51110-44H00

$472.30

24

.O-RING

51117-12C00

$3.89

25

.BUSH,SLIDE

51121-44H00

$22.80

26

.CYLINDER

51146-17G20

Unavailable

27

.BOLT (8X27)

51147-48130

$4.34

28

O RING This part replaces 51148-31030.

51148-36011

$3.56

29

.BUSH,GUIDE

51152-01H10

$18.25

30

.SEAL,OIL

51153-01H10

$26.91

31

.SPACER, SEAL

51168-17G80

$6.40

32

.SPRING, FRONT

51171-44HA0

Unavailable

33

.SEAL,DUST

51173-01H00

$11.64

34

.COLLAR, SPRING

51176-19C10

Unavailable

35

.SPRING,REBOUND

51177-17G50

Unavailable

36

.BOLT,FORK

51189-47D50

$52.23

37

.JOINT,SPRING

51192-19C00

$5.02

38

.PIECE,OIL LOCK

51195-48B31

$30.22

39

.RING,PISTON

51196-12C00

$8.42

40

.RING,STOPPER

51556-38B00

$7.22

41

PROTECTOR

51201-32F00

$20.95

42

BOLT | RH

51166-01H10

$8.13
