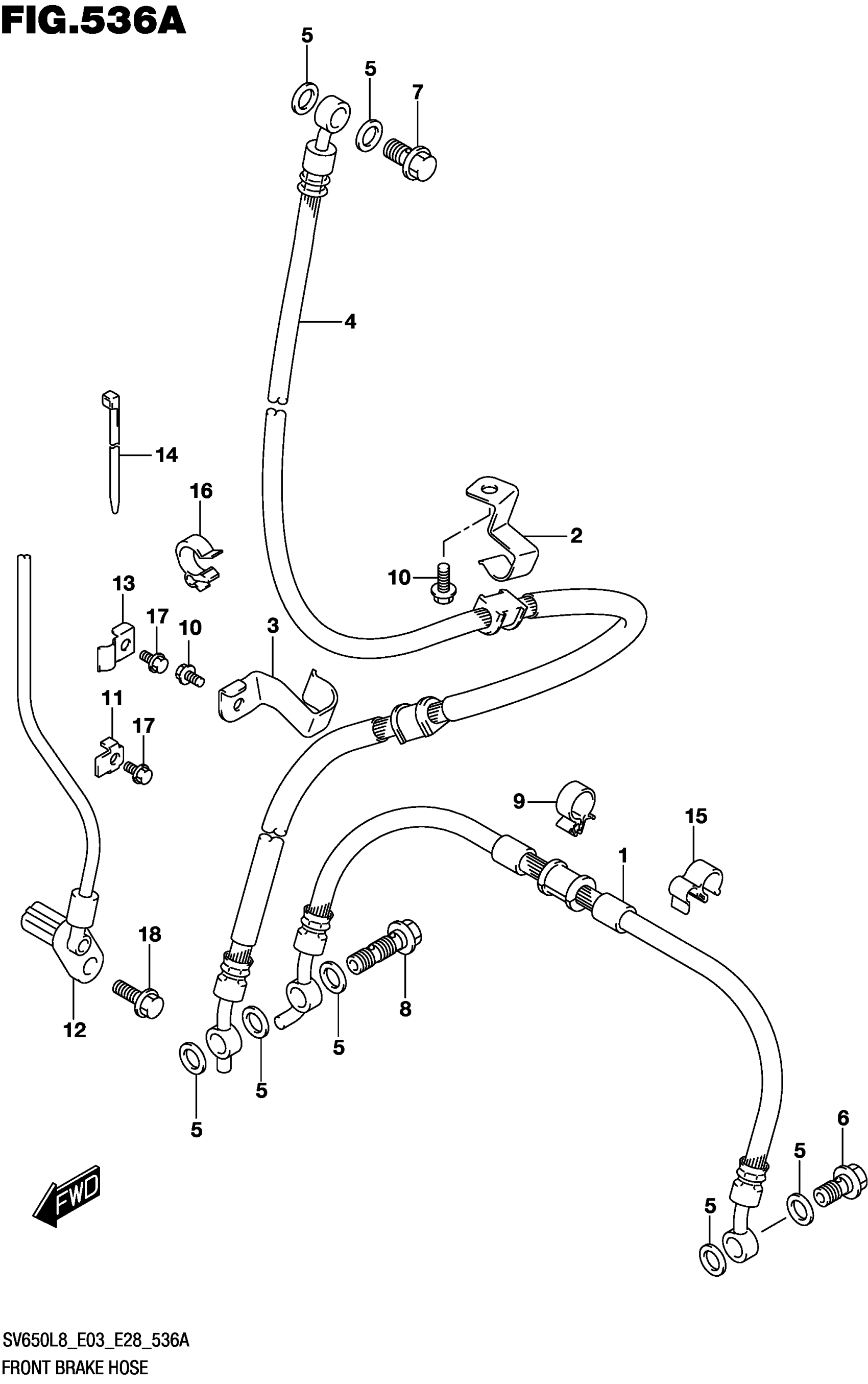

Suzuki SV650AL8 (2018) FRONT BRAKE HOSE (SV650L8 E03) Diagram

#

Description
Price

1

HOSE, FR CLPR TO CLPR

59240-18K00

Unavailable

2

CLAMP,FR BRAKE HOSE NO.1

59261-44H00

Unavailable

3

CLAMP,FR BRAKE HOSE NO.2

59263-44H10

$9.88

4

HOSE, FRONT MASTER TO CALIPER

59480-18K10

$108.17

5

WASHER (10X15X1.5)

09161-10009

$1.84

6

UNION (10X1.25X22)

09360-10062

$6.43

7

UNION This part replaces 09360-10042.

09360-10062

$6.43

8

UNION (10X1.25X36)

09360-10064

$6.43

9

CLAMP

09403-16412

$3.37

10

BOLT

01547-0612A

$2.03

11

GUIDE, SENSOR LEAD

34938-14F00

$6.30

12

SENSOR, FR WHEEL SPEED

55710-18K10

$233.37

13

CLAMP,SENSOR LEAD FR NO.3

55733-44H00

Unavailable

14

CLAMP (L:145)

09407-14407

$3.57

15

CLAMP

09408-00266

$2.51

16

CLAMP

09408-00307

$2.97

17

BOLT

01547-0612A

$2.03

18

BOLT

01547-0616B

$2.45
