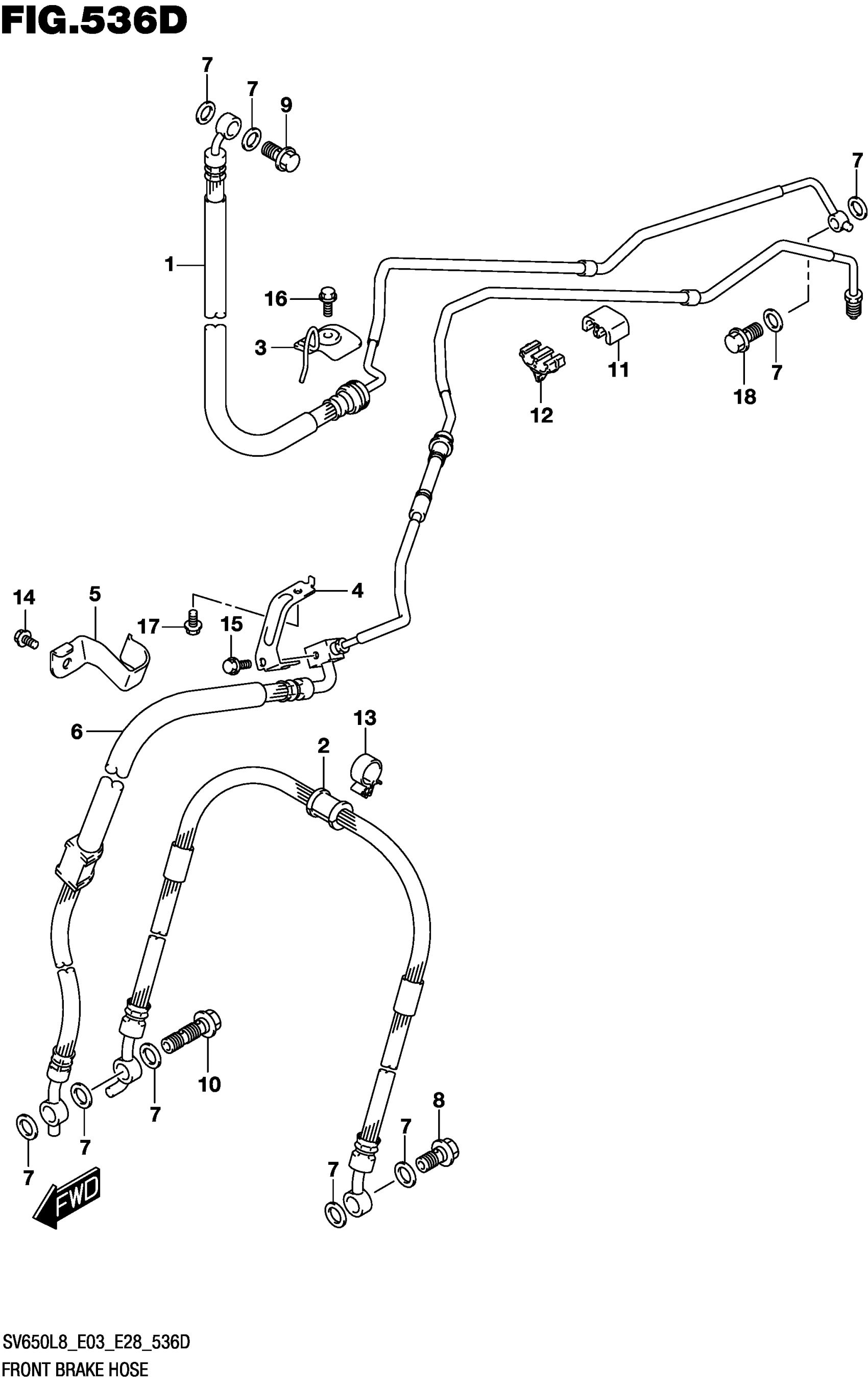

Suzuki SV650AL8 (2018) FRONT BRAKE HOSE (SV650AL8 E33) Diagram

#

Description
Price

1

HOSE ASSY, FR MASTER TO UNIT

59200-18K40

Unavailable

2

HOSE, FR CLPR TO CLPR

59240-18K00

Unavailable

3

CLAMP,FR BK HOSE ASSY NO.1

59251-18K00

$13.93

4

CLAMP,FR BK HOSE ASSY NO.2

59261-18K00

$8.57

5

CLAMP,FR BRAKE HOSE NO.2

59263-44H10

$9.88

6

HOSE ASSY, UNIT TO FR CLPR

59400-18K00

$219.10

7

WASHER (10X15X1.5)

09161-10009

$1.84

8

UNION (10X1.25X22)

09360-10062

$6.43

9

UNION This part replaces 09360-10042.

09360-10062

$6.43

10

UNION (10X1.25X36)

09360-10064

$6.43

11

CLAMP

09403-06324

Unavailable

12

CLAMP

09403-07334

Unavailable

13

CLAMP

09403-16412

$3.37

14

BOLT

01547-0612A

$2.03

15

BOLT

01547-0616A

$2.03

16

BOLT

01547-0616A

$2.03

17

BOLT

01550-0612A

$1.97

18

UNION (10X1.25X22)

09360-10062

$6.43
