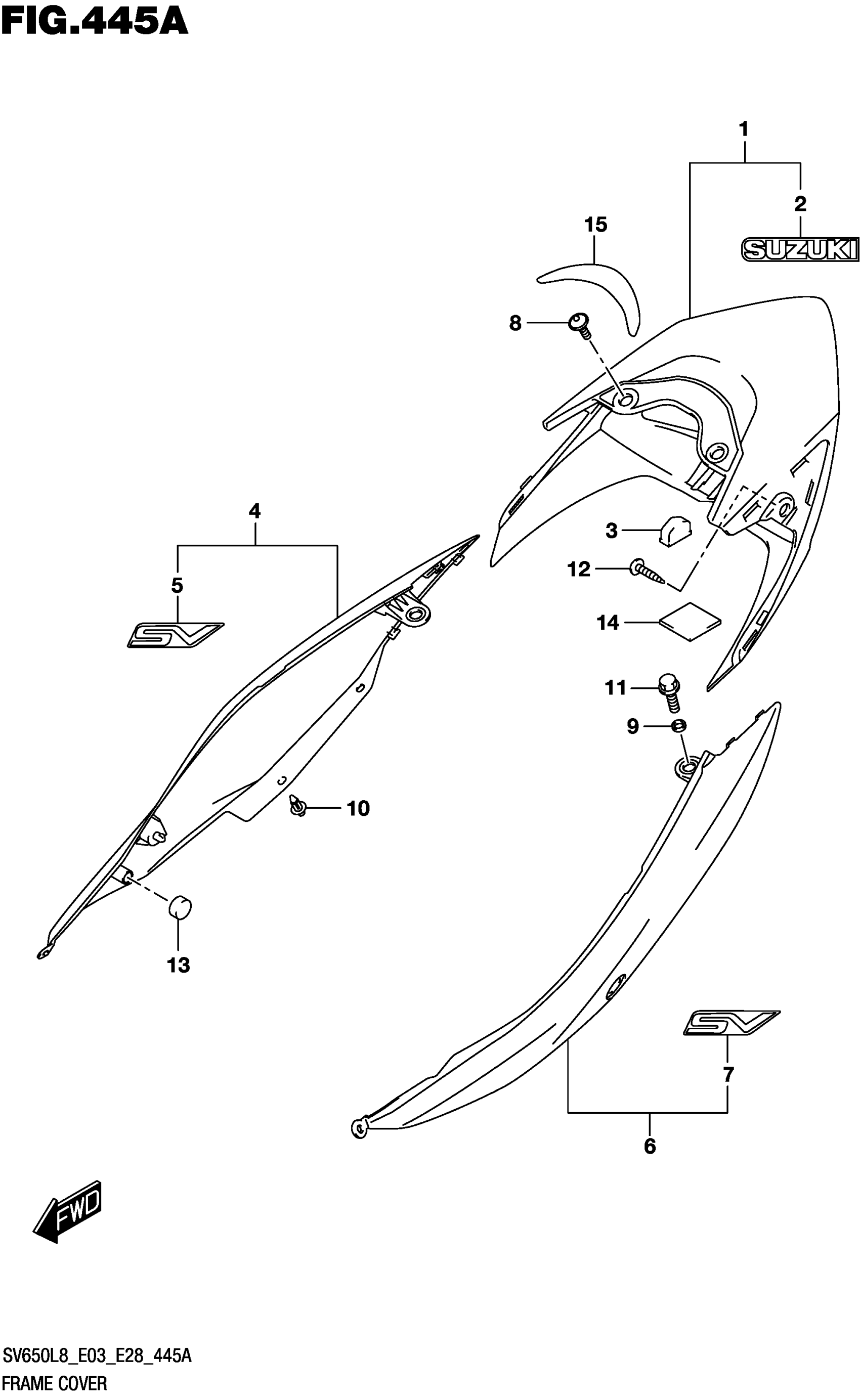

Suzuki SV650AL8 (2018) FRAME COVER (SV650L8 E03) (FOR YVB,YKV) Diagram

#

Description
Price

1

COVER,FRAME RR CTR (BLACK) This part replaces 47310-18K00-4TX.

47310-18K01-4TX

$182.83

2

.EMBLEM, "SUZUKI" (BLACK)

68171-28H10-KGL

$8.20

3

CUSHION,FRAME COVER CTR

47315-18K00

$12.73

4-1

COVER,FRAME REAR RH (BLACK) This part replaces 47410-18K20-YKV.

47410-18K21-YKV

$110.63

4-2

COVER,FRAME REAR RH (BLACK) This part replaces 47410-18K20-YVB.

47410-18K21-YVB

$111.67

5-1

.EMBLEM, "SV" (BLACK) | FOR YKV

68111-18K00-KGL

$15.37

5-2

.EMBLEM, "SV" (GRAY) | FOR YVB

68111-18K00-YLF

$15.37

6-1

COVER,FRAME REAR LH (BLACK) This part replaces 47510-18K20-YKV.

47510-18K21-YKV

$110.63

6-2

COVER,FRAME REAR LH (BLACK) This part replaces 47510-18K20-YVB.

47510-18K21-YVB

$109.60

7-1

.EMBLEM, "SV" (BLACK) | FOR YKV

68111-18K00-KGL

$15.37

7-2

.EMBLEM, "SV" (GRAY) | FOR YVB

68111-18K00-YLF

$15.37

8

BOLT (5X13)

09139-05074

$2.61

9

SPACER (8.5X12X2.5)

09180-08052

Unavailable

10

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

11

BOLT (8X12)

01550-0812A

$2.32

12

SCREW

03541-0510A

$1.49

13

CUSHION (14X20X9) This part replaces 09329-14002.

09329-14003

$2.72

14

PROTECTOR (50X50X5) | CUT AS REQUIRED

33652-20C00

$2.99

15

TAPE,FRAME COVER RR CTR

47312-18K00

$11.53
