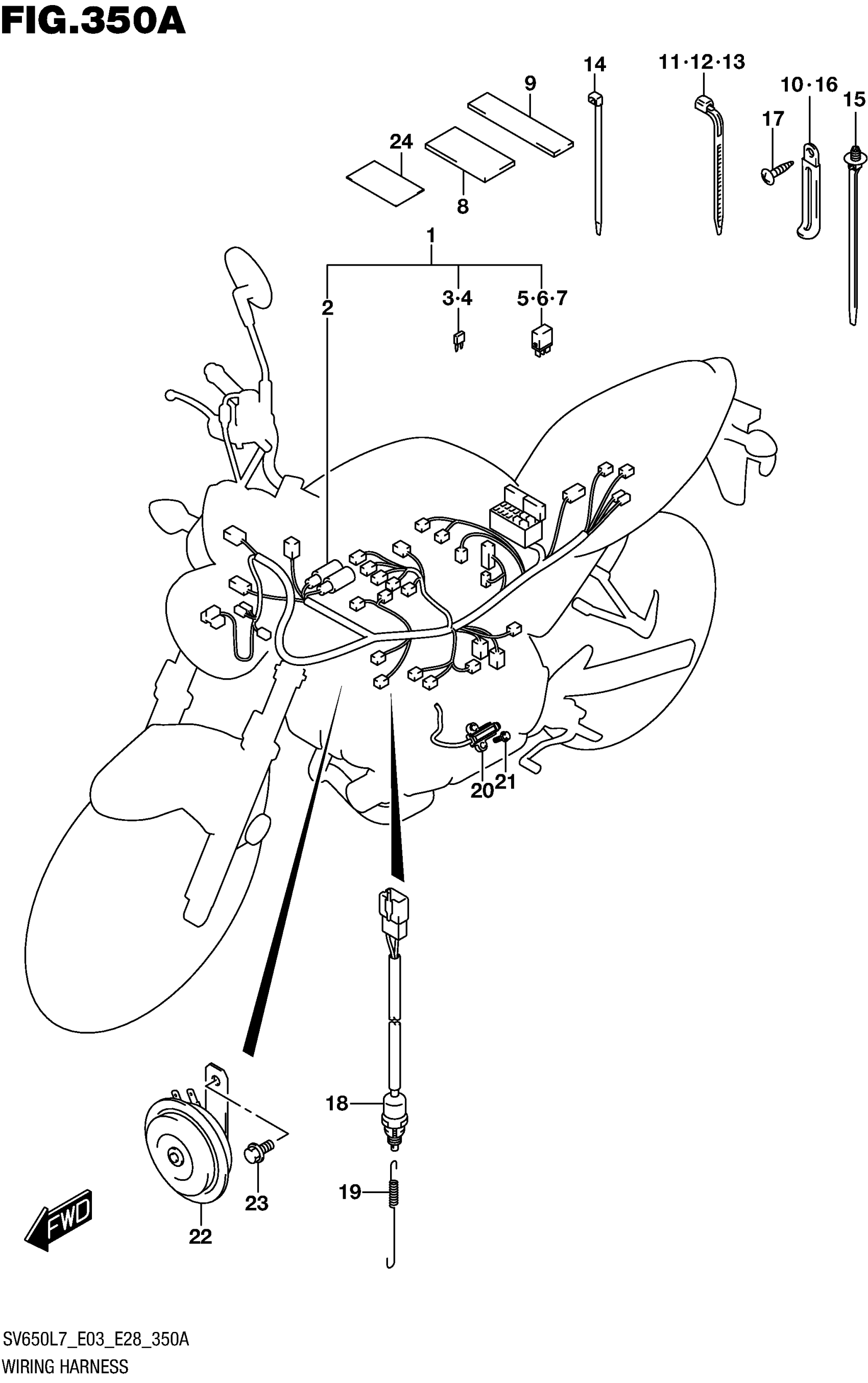

Suzuki SV650AL7 (2017) WIRING HARNESS (SV650L7 E03) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-18K00

Unavailable

2

.COVER, SPEEDOMETER COUPLER

36618-35F00

$11.37

3

.FUSE (10A)

09481-10501

$2.07

4

.FUSE (15A)

09481-15501

$2.07

5

.RELAY ASSY | FOR FUEL PUMP

38860-76F01

$31.02

6

.RELAY ASSY | FOR FAN MOTOR

38860-76F01

$31.02

7

.RELAY ASSY | FOR SIDE STAND

38860-76F01

$31.02

8

PROTECTOR (30X60X3)

36920-08D00

Unavailable

9

PROTECTOR (30X70)

94474-22D00

Unavailable

10

CLAMP (L:45)

09407-06429

Unavailable

11

CLAMP (L:125)

09407-14403

$2.24

12

CLAMP (L:165)

09407-18402

$2.21

13

CLAMP (L:190)

09407-19401

$3.32

14

CLAMP (L:145)

09407-14407

$2.80

15

CLAMP (L:170)

09407-17403

$4.63

16

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

17

SCREW

03541-0412A

$1.37

18

SWITCH ASSY,STOP LAMP

37740-44H01

$22.47

19

SPRING

09443-06016

$3.58

20

SWITCH ASSY,SIDE STAND This part replaces 37840-25D00.

37840-25D02

$68.13

21

BOLT

01550-0620A

$1.97

22

HORN ASSY

38500-18K00

Unavailable

23

BOLT (8X12)

01550-0812A

$2.31

24

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.42
