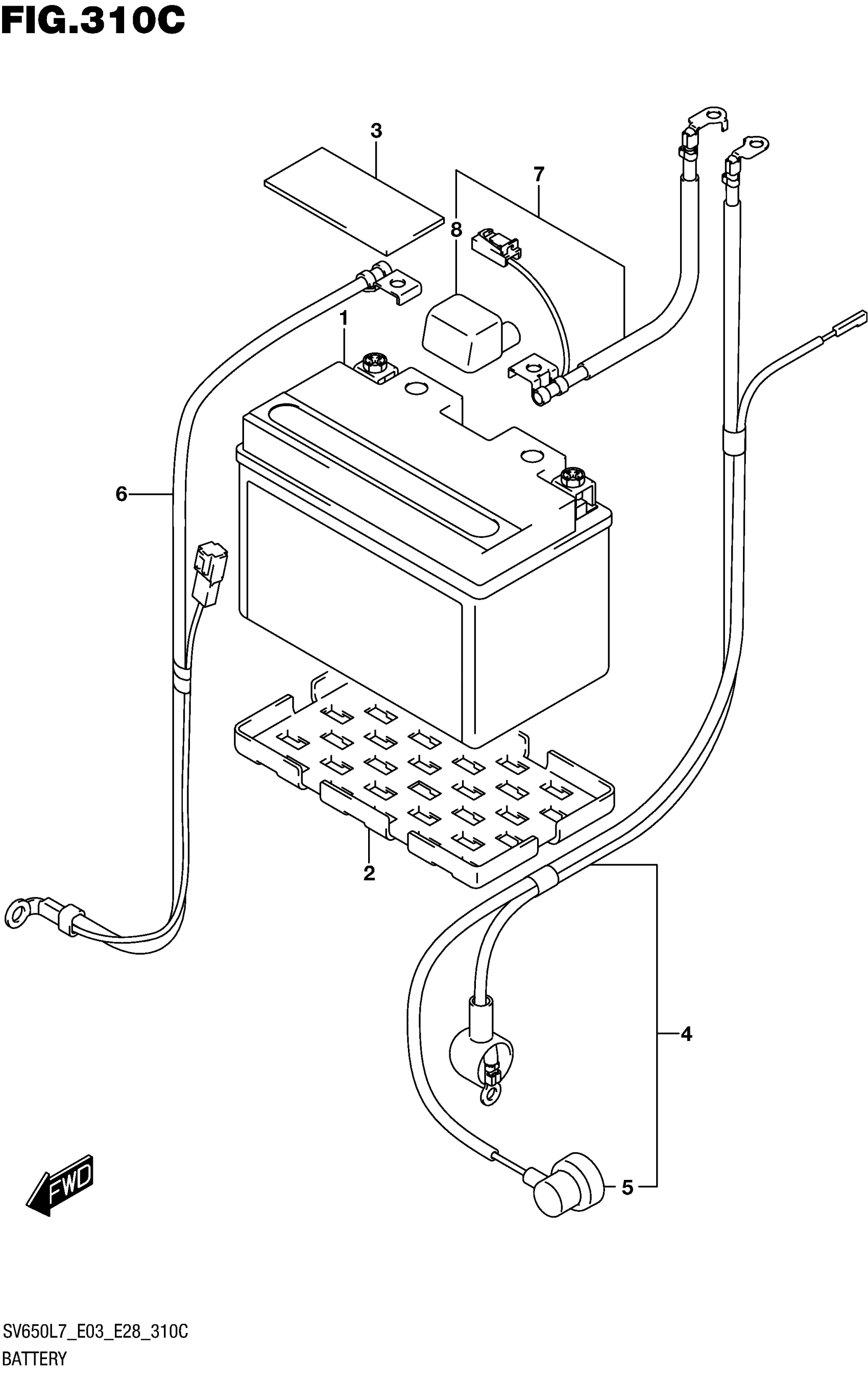

Suzuki SV650AL7 (2017) BATTERY (SV650AL7 E28) Diagram

#

Description
Price

1

BATTERY ASSY

33610-14G11

$142.85

1

(FT12A-BS, 12V10AH)

33610-14G11

$142.85

2

PROTECTOR,BATTERY

33652-16G00

$13.50

3

PROTECTOR, BATTERY

33652-28C00

Unavailable

4

WIRE,STARTER MOTOR LEAD

33810-18K00

Unavailable

5

.CAP, OIL PRESSURE SWITCH

36618-31J00

Unavailable

6

WIRE,BATTERY MINUS LEAD

33860-18K00

$41.98

7

WIRE,BATTERY PLUS LEAD This part replaces 33820-18K10.

33820-18K11

$33.92

8

.CAP, BATTERY PLUS

33624-16G00

$5.44
