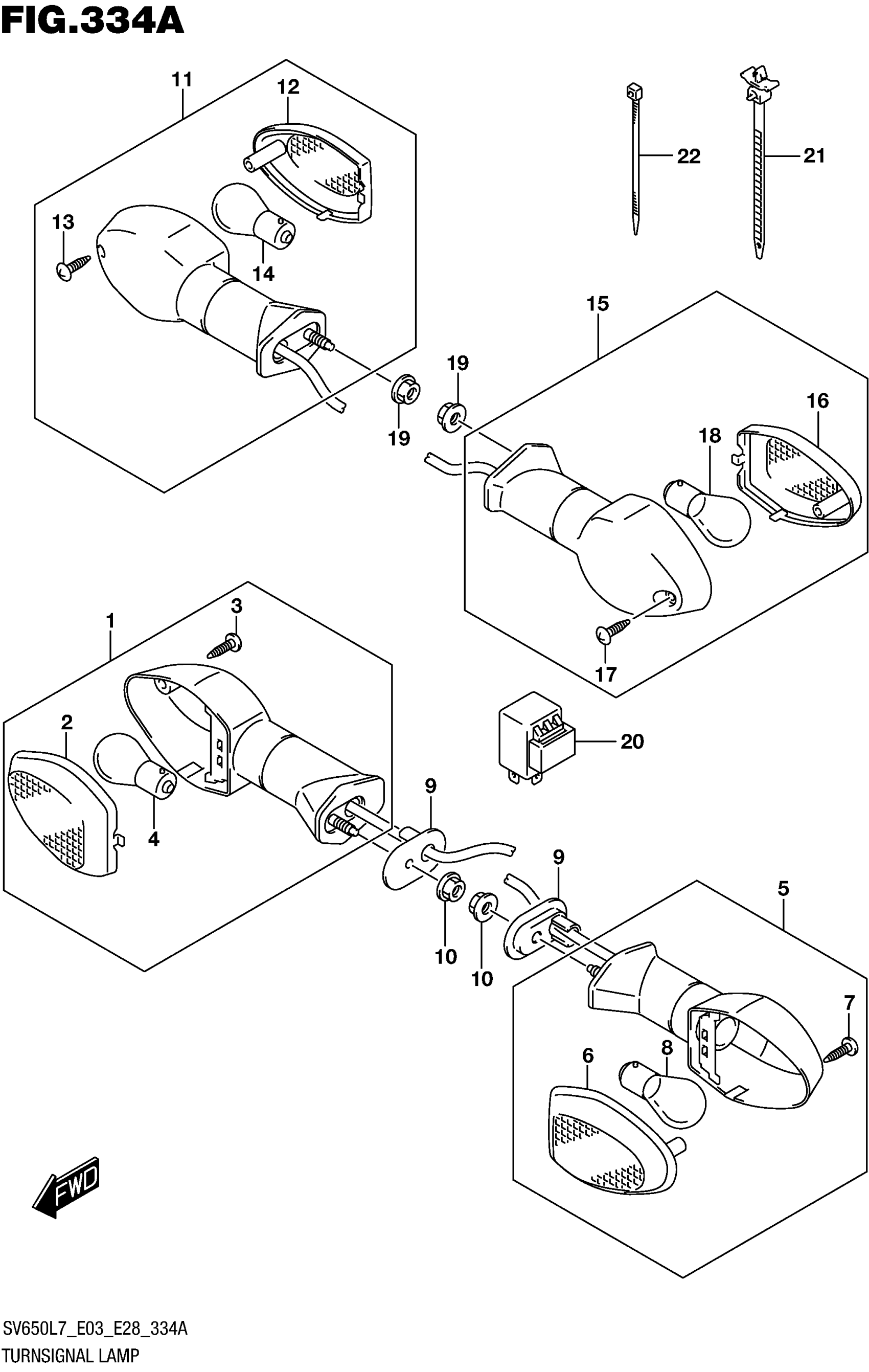

Suzuki SV650AL7 (2017) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY,FRONT TURNSIGNAL,R

35601-08JB0

$87.62

2

.LENS

35612-08JA0

$12.47

3

.SCREW

03211-0414B

$1.77

4

.BULB (12V,21W)

09471-12186

$12.66

5

LAMP ASSY,FRONT TURNSIGNAL,L

35602-08JB0

$87.62

6

.LENS

35632-08JA0

$12.47

7

.SCREW

03211-0414B

$1.77

8

.BULB (12V,21W)

09471-12186

$12.66

9

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.40

10

NUT

08316-1005A

$2.19

11

LAMP ASSY,RR TURNSIGNAL,R

35603-08JB0

$96.10

12

.LENS

35632-08JA0

$12.47

13

.SCREW

03211-0414B

$1.77

14

.BULB (12V,21W)

09471-12186

$12.66

15

LAMP ASSY,RR TURNSIGNAL,L

35604-08JB0

$92.57

16

.LENS

35612-08JA0

$12.47

17

.SCREW

03211-0414B

$1.77

18

.BULB (12V,21W)

09471-12186

$12.66

19

NUT

08316-1005A

$2.19

20

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-06F00.

38610-06F01

$82.18

21

CLAMP (L:125)

09407-14403

$2.26

22

CLAMP (L:165)

09407-18402

$2.19
