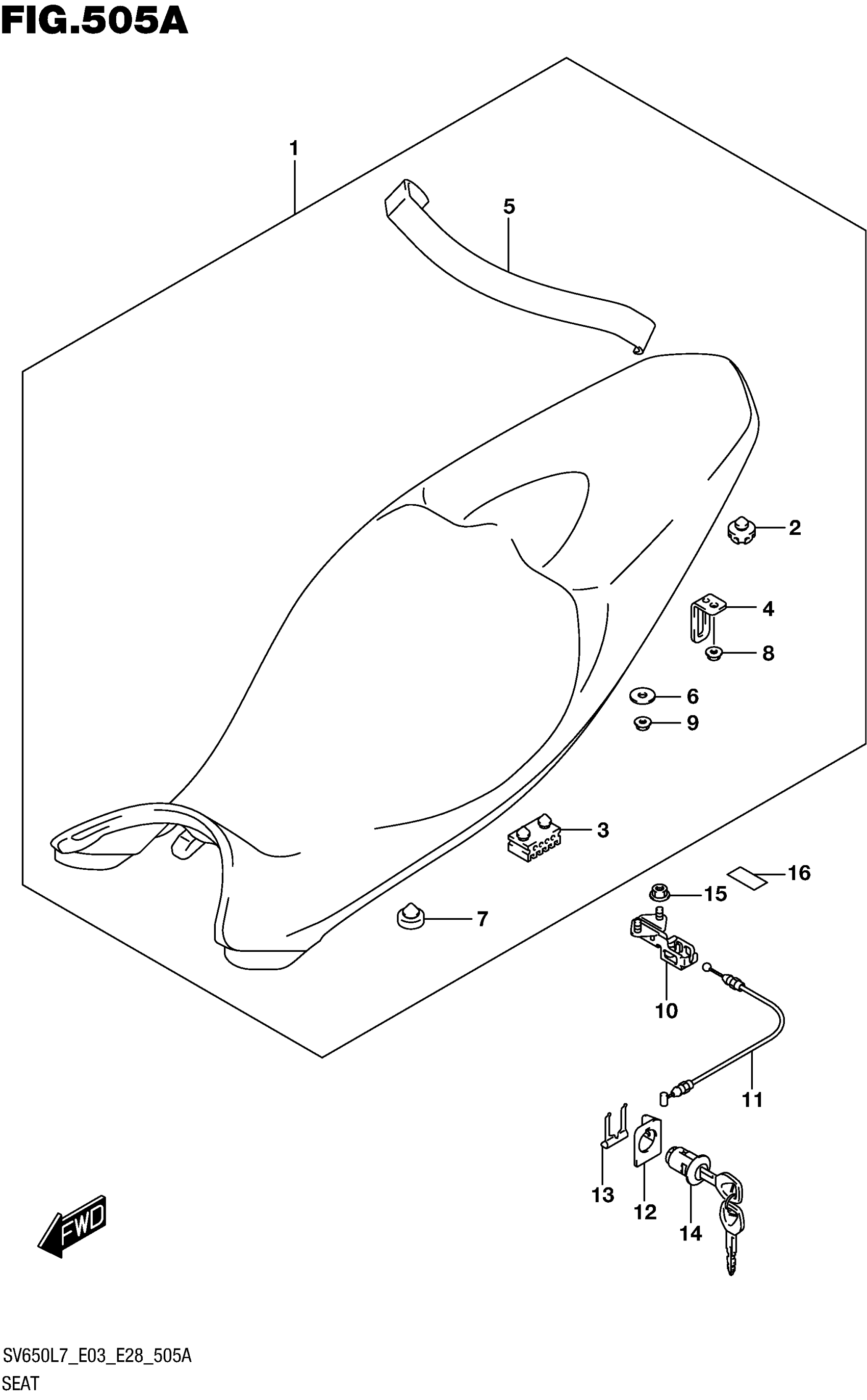

Suzuki SV650AL7 (2017) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) This part replaces 45100-18K00-BBC.

45100-18K03-BBC

$295.05

2

.CUSHION, SEAT MOUNT REAR

45148-20G90

$5.55

3

.CUSHION, SEAT MOUNT CENTER

45149-31300

$3.56

4

.STRIKER,SEAT LOCK

45212-18K00

$9.63

5

.BAND,SEAT GRIP (BLACK) This part replaces 45380-18K00-P3H.

45380-18K01-P3H

$20.47

6

.WASHER (6.5X20X1.6)

09160-06088

$1.65

7

CUSHION

09321-10012

$2.92

8

.NUT

08316-1006A

$2.19

9

.NUT

08316-1006A

$2.19

10

BRACKET,STRIKER SUPPORT

45220-04K20

$31.88

11

CABLE,SEAT LOCK

45280-18K00

Unavailable

12

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.36

13

PLATE, SEAT LOCK ASSY

45289-11F00

$6.20

14

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

$107.30

15

NUT

08316-1006A

$2.19

16

TAPE, SEAT RAIL

94432-19F00

Unavailable
