Description

Price

1

SWINGINGARM ASSY, REAR (BLACK

61000-44H10-YAP

Unavailable

2

.SPACER,RR SWGARM PIVOT CTR

61282-17C00

$28.42

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$30.93

5

SHAFT, RR SWGARM PIVOT

61211-31E00

$128.72

6

SPACER, RR SWGARM PIVOT

61251-21E00

$30.05

7

BUFFER,CHAIN TOUCH DEFENSE This part replaces 61273-44H00.

61273-44H01

$33.75

8

BOLT (6X17.8)

09111-06072

$2.03

9

NUT

09159-18007

$19.68

10

WASHER (18.5X28X2.6)

09160-18030

$2.56

11

CASE,CHAIN

61310-44H00

$91.95

12

BOLT (6X12)

09111-06107

$2.60

13

SCREW, UPPER This part replaces 09139-06165.

09139-06168

$2.62

14

ADJUSTER,CHAIN

61410-44H00

$39.90

15

PLATE, ADJUSTER GUIDE (SILVER

61421-44H00-13L

$42.77

16

BOLT (8X50)

09106-08119

$4.04

17

WASHER

09164-08015

$3.21

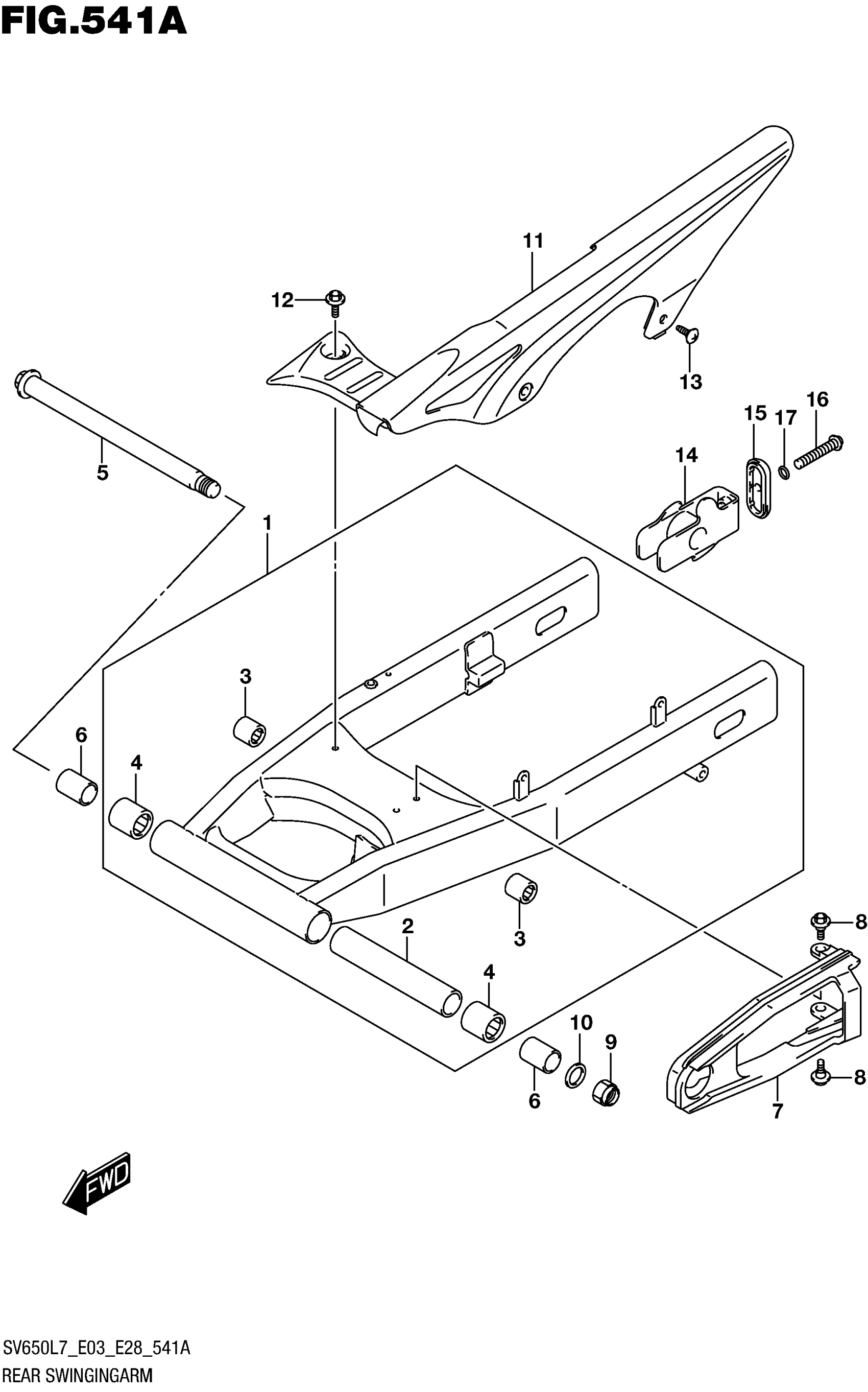

Suzuki SV650AL7 (2017) REAR SWINGINGARM Diagram
