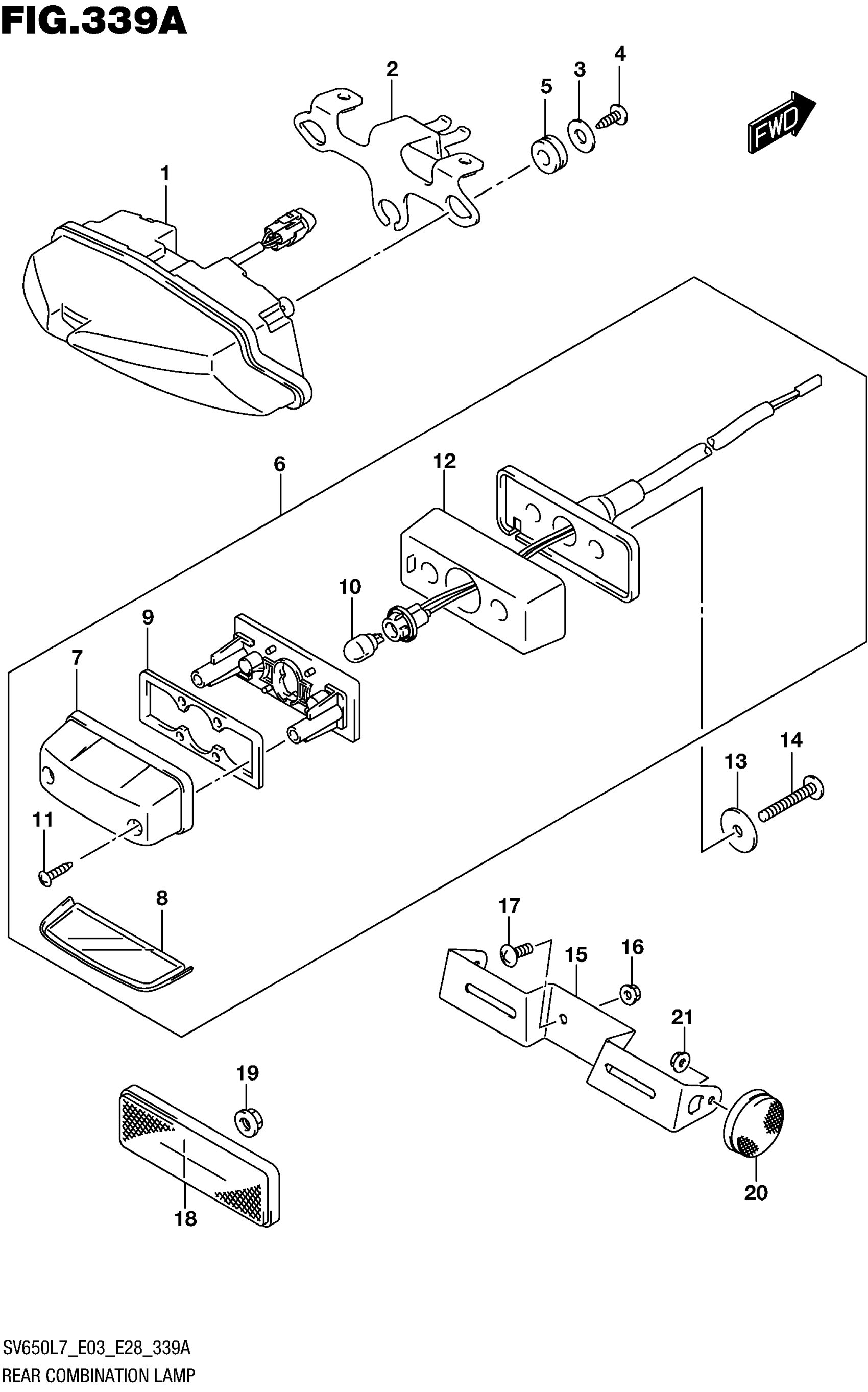

Suzuki SV650AL7 (2017) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB This part replaces 35710-14JB0.

35710-14JD0

$170.26

2

BRACKET,REAR COMB LAMP

35726-18K00

$16.63

3

WASHER (5.5X20X1.2)

09160-05501

$1.84

4

SCREW

03541-0516A

$1.49

5

CUSHION

09320-10049

$2.35

6

LAMP ASSY,LICENSE

35910-16G31

$88.23

7

.COVER

35917-16G00

$12.40

8

.LENS

35912-16G01

$12.27

9

.GASKET

35913-16G00

Unavailable

10

.BULB (12V5W)

09471-12216

$5.36

11

.SCREW

03211-0416A

$1.49

12

.SPACER

35978-16G30

Unavailable

13

WASHER (5.5X20X1.2)

09160-05501

$1.84

14

SCREW

03541-0540A

$1.49

15

BRACKET,LICENSE PLATE

35927-44H30

$18.42

16

NUT

09159-06096

$3.15

17

SCREW

02142-0616A

$1.49

18

REFLECTOR ASSY, REAR

35970-07F01

$20.88

19

NUT

08316-1005A

$2.19

20

REFLECTOR ASSY, RR SIDE

35970-14A20

$15.10

21

NUT

08316-1005A

$2.19
