2017 Suzuki SV650AL7 Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2017 Suzuki SV650AL7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

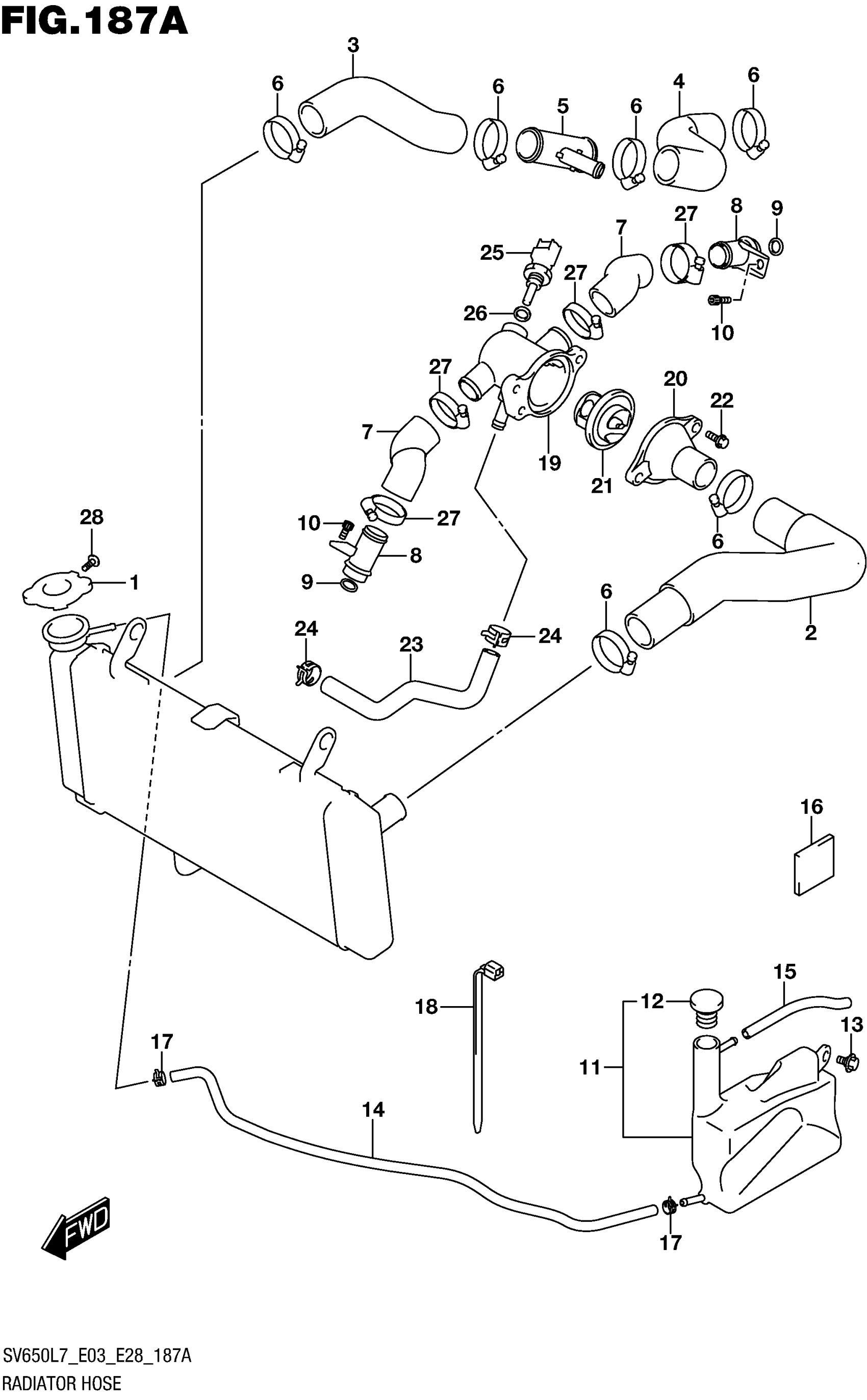

2017 Suzuki SV650AL7 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, RADIATOR (1.1)

17730-08D10

1
Out of stock

2

HOSE,RADIATOR INLET

17851-44H00

1
Out of stock

3

HOSE,RADIATOR OUTLET NO.1

17852-44H00

1
Out of stock

4

HOSE,RADIATOR OUTLET NO.2

17854-18K00

1
Out of stock

5

PIPE,WATER HOSE THREE WAY

17881-18K00

1
Out of stock

6

CLAMP

09402-35501

6
Out of stock

7

HOSE,CONNECTOR INLET

17853-19F00

2
Out of stock

8

UNION, CONNECTOR HOSE

17890-06G20

2
Out of stock

9

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

2
Out of stock

10

BOLT

07130-0612A

2
Out of stock

11

TANK ASSY,RESERVOIR

17910-18K00

1
Out of stock

12

.CAP,RESERVOIR TANK

17931-02FA0

1
Out of stock

13

BOLT (6X12)

09111-06083

1
Out of stock

14

HOSE, RESERVOIR TANK INLET

17981-18K00

—
Out of stock

15

HOSE (5X9X600) | L:600->180

09352-50901-600

1
Out of stock

16

CUSHION, RESERVOIR TANK | CUT AS REQUIRED

63191-25C00

1
Out of stock

17

CLIP

09401-08411

2
Out of stock

18

CLAMP (L:165)

09407-18402

1
Out of stock

19

CONNECTOR,THERMOSTAT INLET

17662-02F11

1
Out of stock

20

CAP,THERMOSTAT CONNECTOR

17663-17G00

1
Out of stock

21

THERMOSTAT,WATER This part replaces 17670-06G60.

17670-06G61

1
Out of stock

22

BOLT

01547-0616A

2
Out of stock

23

HOSE,CONNECTOR TO WTR PMP

17856-44H00

1
Out of stock

24

CLIP

09401-12414

2
Out of stock

25

SENSOR, WATER TEMPERATURE

13650-49X00

1
Out of stock

26

GASKET (12X17X1)

09168-12017

1
Out of stock

27

CLAMP

09402-28513

4

$6.80

In stock

28

SCREW,RADIATOR CAP

17733-03D10

1

$2.97

In stock
