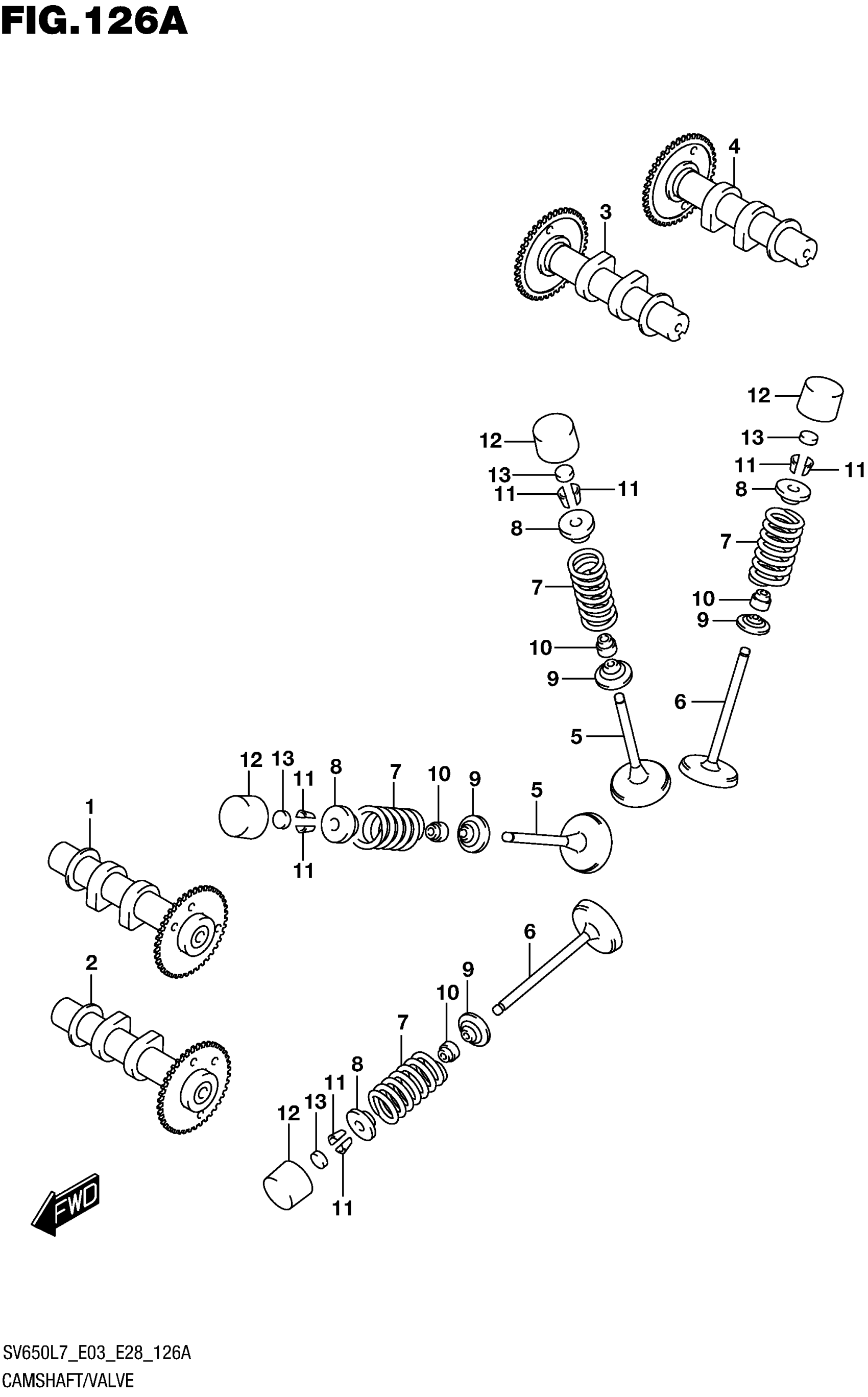

Suzuki SV650AL7 (2017) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT,INTAKE FR This part replaces 12710-18K00.

12710-44H00

$342.73

2

CAMSHAFT,EXHAUST FR (NT:36) This part replaces 12720-18K00.

12720-44H00

Unavailable

3

CAMSHAFT,INTAKE RR This part replaces 12730-18K00.

12730-44H00

Unavailable

4

CAMSHAFT,EXHAUST RR (NT:36) This part replaces 12740-18K00.

12740-44H00

Unavailable

5

VALVE,INTAKE This part replaces 12911-18K00.

12911-18H00

$52.82

6

VALVE,EXHAUST This part replaces 12912-18K00.

12912-20F00

$58.53

7

SPRING,VALVE

12921-44H00

Unavailable

8

RETAINER,VALVE SPRING

12931-17E01

Unavailable

9

SEAT,VALVE SPRING

12933-17E00

Unavailable

10

OIL SEAL (4.5X10X8)

09289-04002

$5.85

11

COTTER, VALVE

12932-32C00

$2.14

12

TAPPET This part replaces 12891-17E00.

12891-47H00

$62.64

13-1

SHIM, TAPPET (T:1.20)

12892-05C00-120

$13.10

13-2

SHIM, TAPPET (T:1.25)

12892-05C00-125

$13.35

13-3

SHIM, TAPPET (T:1.30)

12892-05C00-130

$7.35

13-4

SHIM, TAPPET (T:1.35)

12892-05C00-135

$9.48

13-5

SHIM, TAPPET (T:1.40)

12892-05C00-140

$9.48

13-6

SHIM, TAPPET (T:1.45)

12892-05C00-145

$9.29

13-7

SHIM, TAPPET (T:1.50)

12892-05C00-150

$13.35

13-8

SHIM, TAPPET (T:1.55)

12892-05C00-155

$9.12

13-9

SHIM, TAPPET (T:1.60)

12892-05C00-160

$9.12

13-10

SHIM, TAPPET (T:1.65)

12892-05C00-165

$9.12

13-11

SHIM, TAPPET (T:1.70)

12892-05C00-170

$13.10

13-12

SHIM, TAPPET (T:1.75)

12892-05C00-175

$9.29

13-13

SHIM, TAPPET (T:1.80)

12892-05C00-180

$12.85

13-14

SHIM, TAPPET (T:1.85)

12892-05C00-185

$13.35

13-15

SHIM, TAPPET (T:1.90)

12892-05C00-190

$13.35

13-16

SHIM, TAPPET (T:1.95)

12892-05C00-195

$13.35

13-17

SHIM, TAPPET (T:2.00)

12892-05C00-200

$13.10

13-18

SHIM, TAPPET (T:2.05)

12892-05C00-205

$13.35

13-19

SHIM, TAPPET (T:2.10)

12892-05C00-210

$13.35

13-20

SHIM, TAPPET (T:2.15)

12892-05C00-215

$13.35

13-21

SHIM, TAPPET (T:2.20)

12892-05C00-220

$13.35

14

SHIM SET, TAPPET | OPT

12800-05830

$1,322.82

14

T:1.20, 1.25...2.95, 3.00 | NOT ILLUSTRATED

12800-05830

$1,322.82

14

(5PCS.EACH) & CASE

12800-05830

$1,322.82

15

.CASE, TAPPET SHIM | OPT

99000-69491

Unavailable

15

.CASE,TAPPET SHIM | NOT ILLUSTRATED

99000-69491

Unavailable
