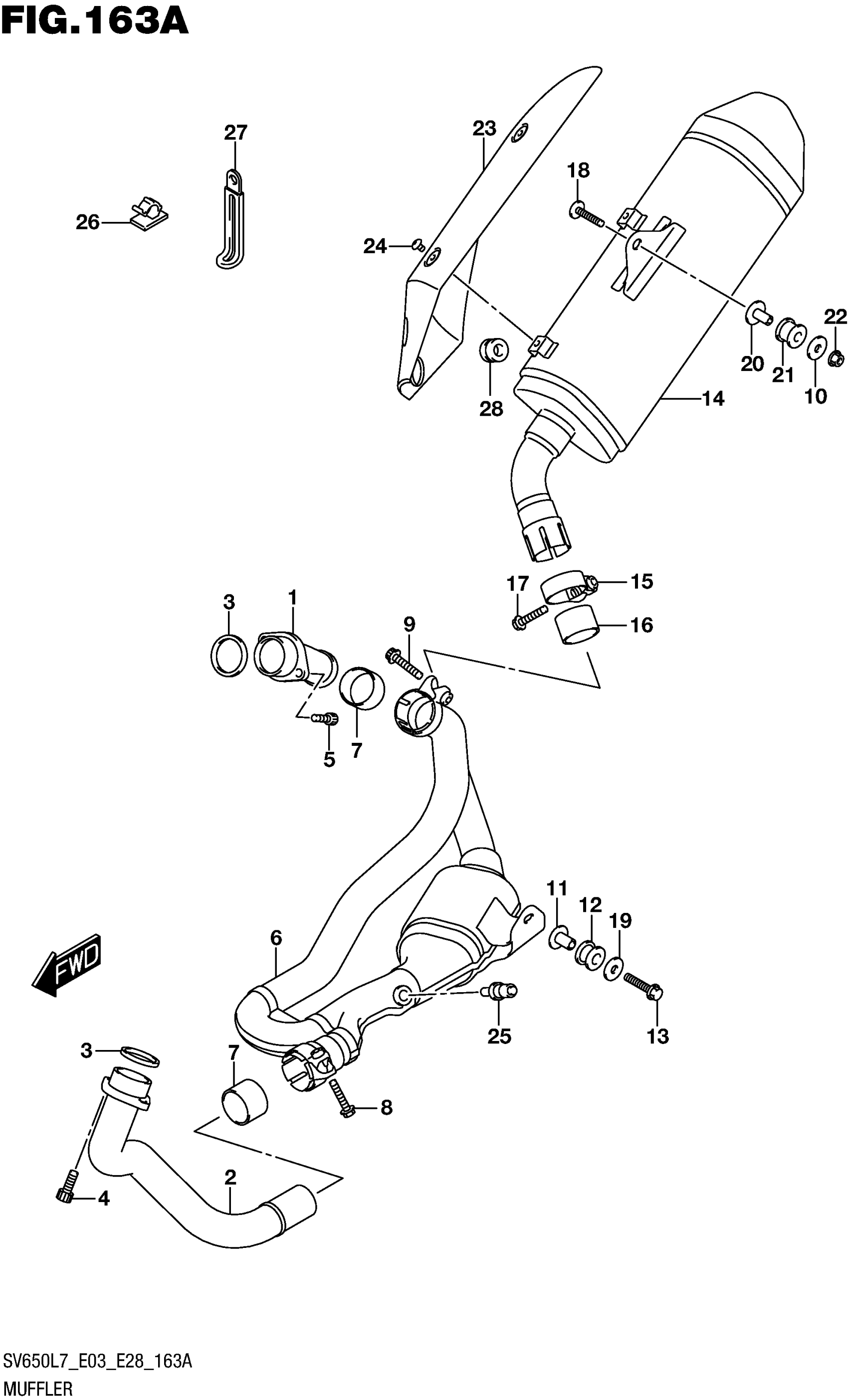

Suzuki SV650AL7 (2017) MUFFLER Diagram

#

Description
Price

1

PIPE,EXH RR

14150-18K00

$108.25

2

PIPE,EXH FR

14160-18K00

$185.13

3

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

4

BOLT (8X25)

09106-08178

$3.24

5

BOLT

07130-0825A

$3.04

6

PIPE, EXH CTR

14205-18K10

Unavailable

7

CONNECTOR,EXHAUST

14771-32E10

$26.20

8

BOLT (8X35)

09103-08365

$3.91

9

BOLT (8X40)

09106-08162

$4.77

10

WASHER (8.5X28X1.6)

09160-08135

$2.35

11

SPACER (8.6X12X24.2)

09180-08152

$5.83

12

CUSHION

09320-12077

$11.78

13

BOLT

01550-0840A

$3.05

14

BODY, MUFFLER

14310-18K00-H01

$703.85

15

CLAMP, MUFFLER CONNECTOR

14459-19F10

$22.60

16

CONNECTOR,EXHAUST

14771-32E10

$26.20

17

BOLT (8X35)

09103-08365

$3.91

18

BOLT (8X45)

09106-08164

$6.38

19

WASHER (8.5X28X1.6)

09160-08135

$2.35

20

SPACER (8.6X12X24.2)

09180-08152

$5.83

21

CUSHION

09320-12048

$5.11

22

NUT

08316-1008A

$2.45

23

COVER, MUF

14780-18K00

$173.27

24

SCREW (6X10)

09139-06122

$3.04

25

SENSOR,OXYGEN

18213-18K00

$315.67

26

CLIP

09403-08327

Unavailable

27

CLAMP (L:45)

09404-06429

$1.83

28

CUSHION (4X12X8) This part replaces 09320-04009.

09320-04013

$1.85
