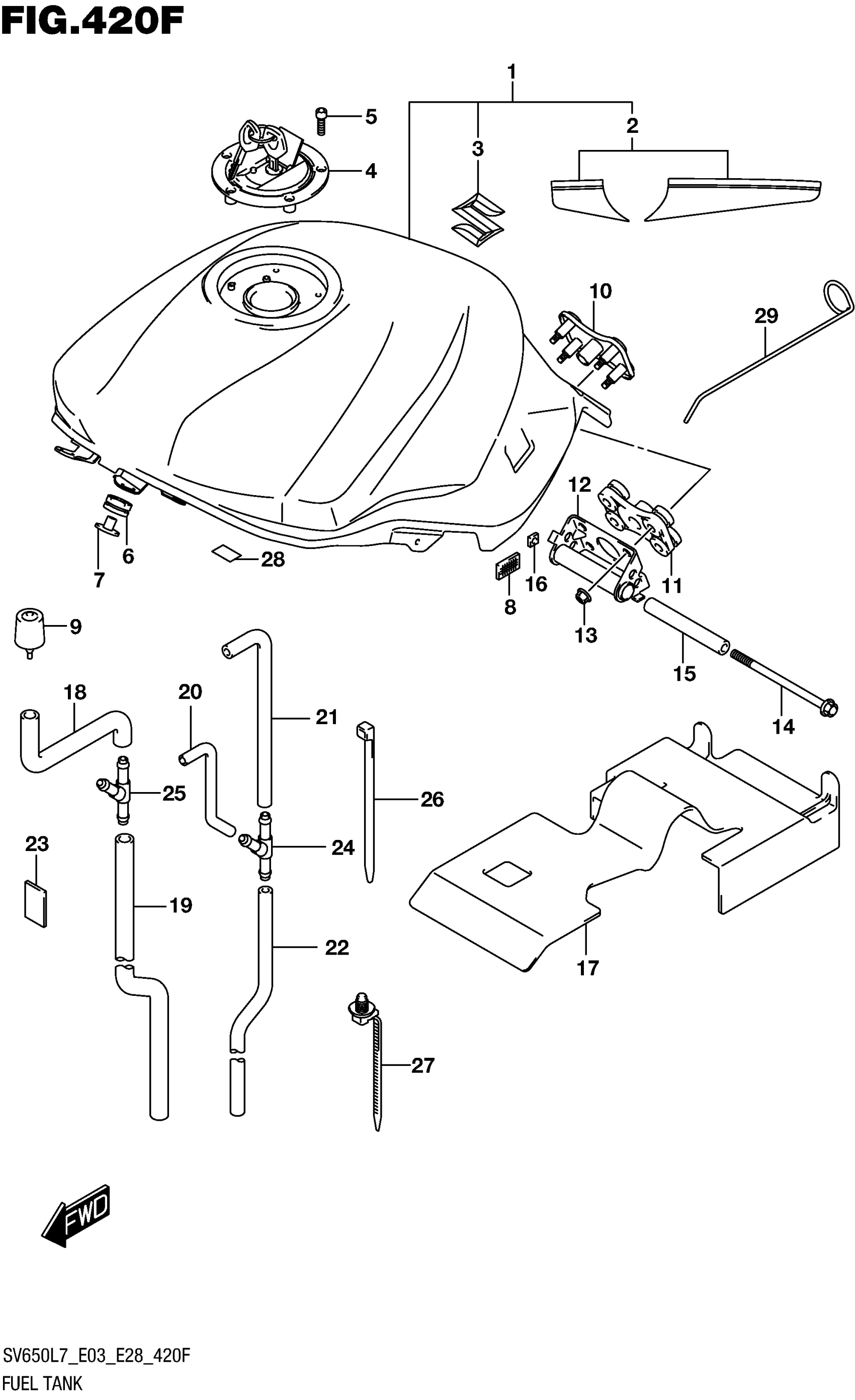

Suzuki SV650AL7 (2017) FUEL TANK (YSF,YVZ,YWW) (SV650AL7 E28) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (BLUE)

44100-18K30-YSF

Unavailable

1-2

TANK ASSY,FUEL This part replaces 44100-18K30-YVZ.

44100-18K31-YVZ

$1,208.22

1-3

TANK ASSY, FUEL (WHITE)

44100-18K30-YWW

$1,092.03

2-1

.TAPE SET, FUEL TANK | FOR YSF

68110-18K00-AGQ

Unavailable

2-1

(BLUE/WHITE)

68110-18K00-AGQ

Unavailable

2-2

.TAPE SET, FUEL TANK | FOR YVZ

68110-18K00-AGS

$49.67

2-2

(RED/WHITE)

68110-18K00-AGS

$49.67

2-3

TAPE SET,FUEL T | FOR YWW This part replaces 68110-18K00-AJP.

68110-18K01-AJP

$36.52

2-3

TAPE SET,FUEL T This part replaces 68110-18K00-AJP.

68110-18K01-AJP

$36.52

3

.EMBLEM, S

68111-47HA0

$40.44

4

CAP SET,FUEL TA This part replaces 44200-16850.

44200-16852

$118.21

5

BOLT, FUEL TANK FILLER CAP

44244-11J00

$4.00

6

CUSHION,FUEL TANK FRONT

44511-18K00

$6.47

7

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

8

FASTENER, SIDE

44572-13G00

$11.07

9

CUSHION,FUEL TANK RR This part replaces 44542-29G00.

44542-29G01

$7.72

10

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

11

CUSHION, FUEL TANK REAR

44542-16G00

$13.77

12

BRACKET,FUEL TANK RR

44530-44H00

Unavailable

13

NUT

08319-3106A

$2.03

14

BOLT (6X100)

09103-06060

$2.50

15

SPACER, FUEL TANK REAR

44561-35F00

$13.88

16

NUT

08318-1106A

Unavailable

17

SHEET,HEAT SHIELD RUBBER

44191-18K00

$57.25

18

HOSE, FUEL TANK DRAIN NO.1

44423-18K00

Unavailable

19

HOSE, FUEL TANK DRAIN NO.2

44423-18K10

Unavailable

20

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$13.72

21

HOSE, FUEL TANK BREATHER NO.1

44424-18K00

Unavailable

22

HOSE, FUEL TANK BREATHER NO.2

44424-18K10

Unavailable

23

SHIELD,DRAIN HOSE HEAT

44427-18K00

Unavailable

24

3 WAY

09367-06007

$3.46

25

JOINT,DRAIN HOSE

09367-08010

Unavailable

26

CLAMP (L:145)

09407-14407

$3.57

27

CLAMP (L:170)

09407-17403

$4.91

28

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

29

STAY, FUEL TANK | OPT

44560-23H00

$44.95
