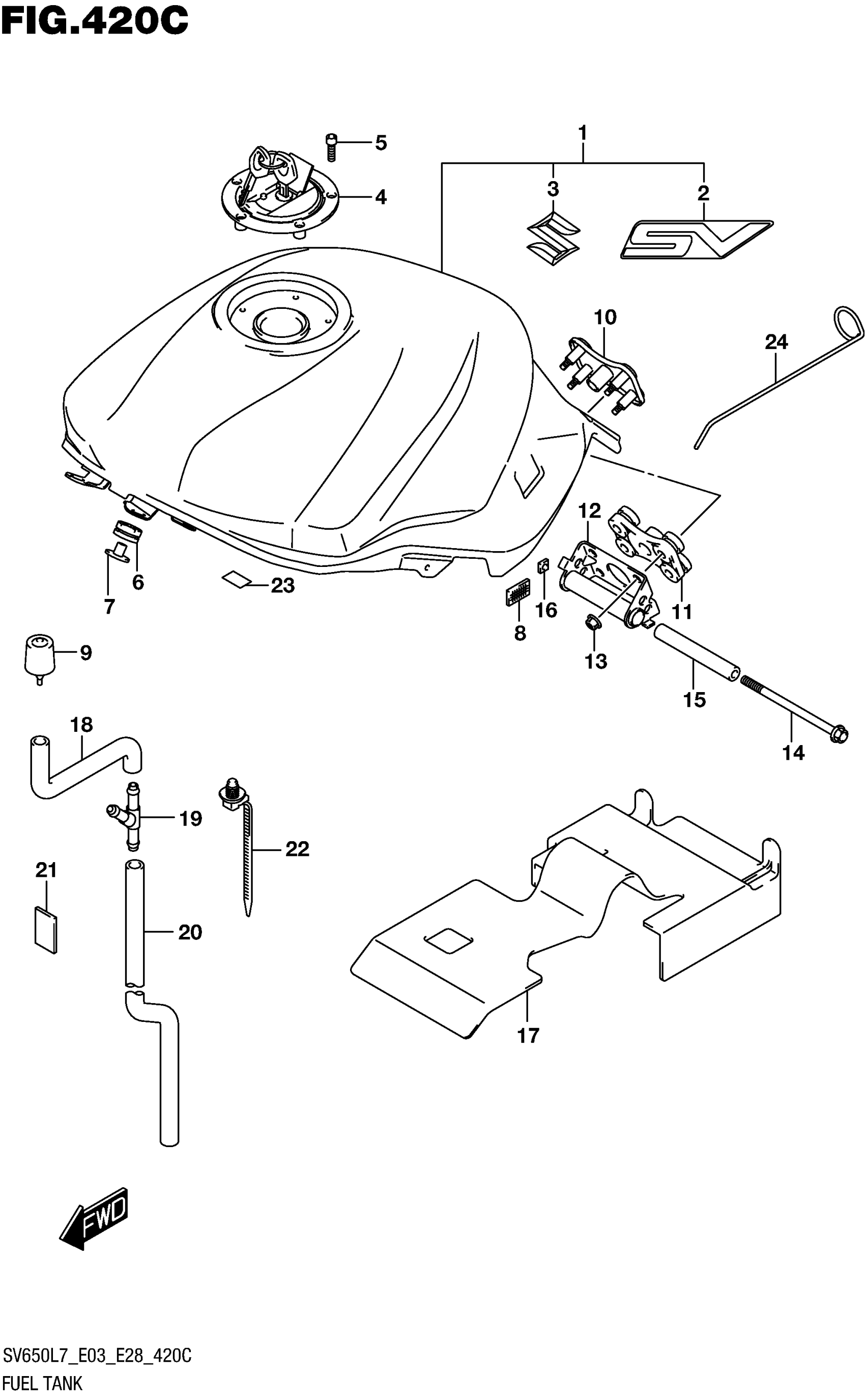

Suzuki SV650AL7 (2017) FUEL TANK (YKV) (SV650L7 E33) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK)

44100-18K20-YKV

Unavailable

2

.EMBLEM,"SV" (SILVER/BLACK)

68111-18K00-CTY

$12.18

3

.EMBLEM, S

68111-47HA0

$40.44

4

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$155.42

5

BOLT, FUEL TANK FILLER CAP

44244-11J00

$4.00

6

CUSHION,FUEL TANK FRONT

44511-18K00

$6.47

7

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

8

FASTENER, SIDE

44572-13G00

$11.07

9

CUSHION,FUEL TANK RR This part replaces 44542-29G00.

44542-29G01

$7.72

10

BRACKET,FUEL TANK RR UP

44570-16G00

Unavailable

11

CUSHION, FUEL TANK REAR

44542-16G00

$13.77

12

BRACKET,FUEL TANK RR

44530-44H00

Unavailable

13

NUT

08319-3106A

$2.03

14

BOLT (6X100)

09103-06060

$2.50

15

SPACER, FUEL TANK REAR

44561-35F00

$13.88

16

NUT

08318-1106A

Unavailable

17

SHEET,HEAT SHIELD RUBBER

44191-18K00

$57.25

18

HOSE, FUEL TANK DRAIN NO.1

44423-18K00

Unavailable

19

JOINT,DRAIN HOSE

09367-08010

Unavailable

20

HOSE, FUEL TANK DRAIN NO.2

44423-18K10

Unavailable

21

SHIELD,DRAIN HOSE HEAT

44427-18K10

$17.18

22

CLAMP (L:170)

09407-17403

$4.91

23

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

24

STAY, FUEL TANK | OPT

44560-23H00

$44.95
