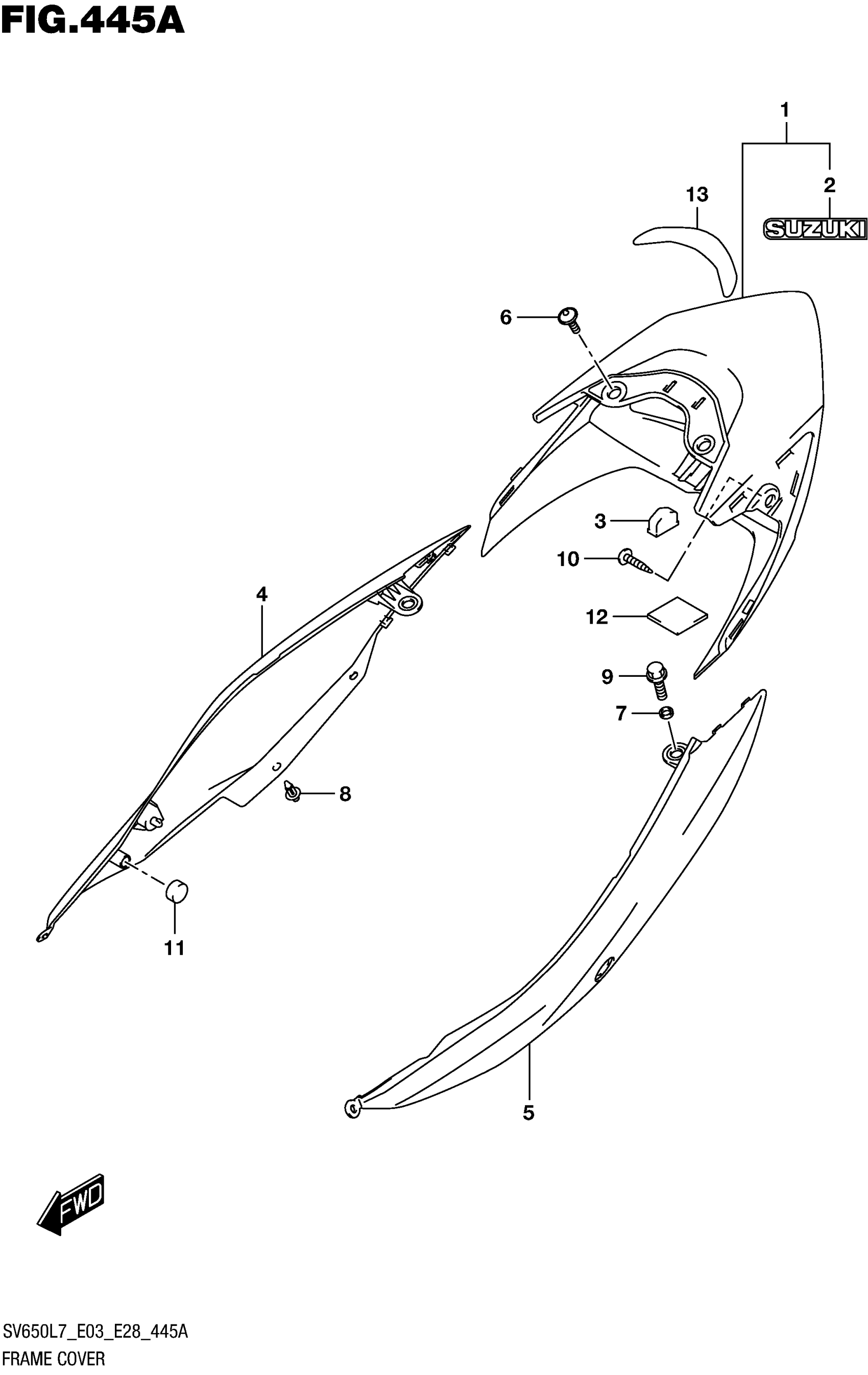

Suzuki SV650AL7 (2017) FRAME COVER (YKV) Diagram

#

Description
Price

1

COVER,FRAME RR This part replaces 47310-18K00-YKV.

47310-18K01-YKV

$186.28

2

EMBLEM,"SUZUKI" This part replaces 68171-28H10-CTY.

68171-28H11-CTY

$8.13

2

EMBLEM,"SUZUKI" This part replaces 68171-28H10-CTY.

68171-28H11-CTY

$8.13

3

CUSHION,FRAME COVER CTR

47315-18K00

$12.73

4

COVER, FRAME REAR RH (BLACK)

47410-18K00-YKV

$123.45

5

COVER, FRAME REAR LH (BLACK)

47510-18K00-YKV

$125.78

6

BOLT (5X13)

09139-05074

$2.61

7

SPACER (8.5X12X2.5)

09180-08052

Unavailable

8

CLIP (BLACK)

09409-06314-5PK

$2.78

9

BOLT (8X12)

01550-0812A

$2.32

10

SCREW

03541-0510A

$1.49

11

CUSHION (14X20X9) This part replaces 09329-14002.

09329-14003

$2.72

12

CUSHION

33652-20C00

$2.99

13

TAPE,FRAME COVER RR CTR

47312-18K00

$11.53
