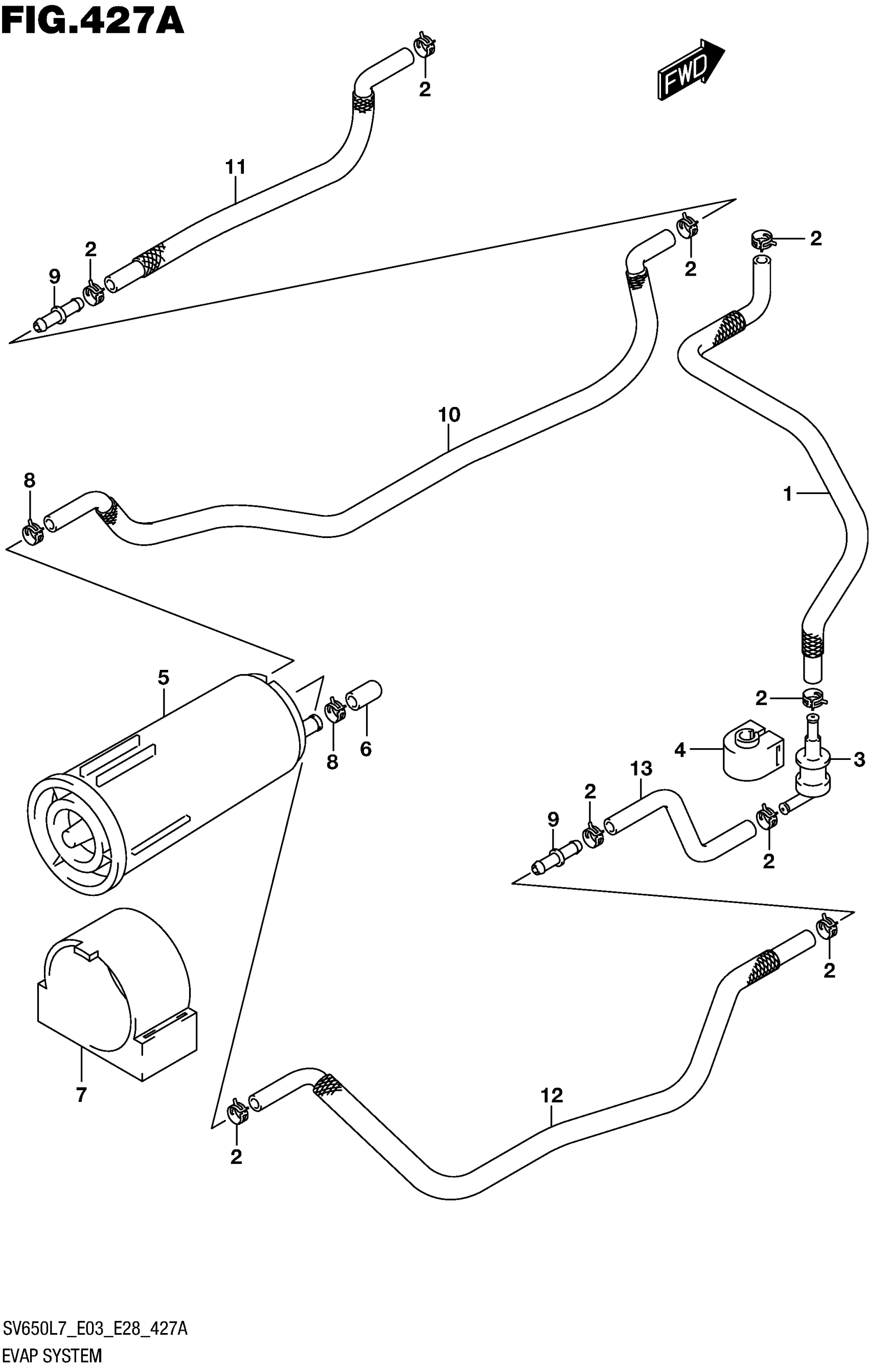

Suzuki SV650AL7 (2017) EVAP SYSTEM (SV650L7 E33) Diagram

#

Description
Price

1

HOSE,TANK & BREATHER VALVE

44434-18K00

Unavailable

2

CLIP

09401-11413

$2.26

3

VALVE FUEL TANK BREATHER

44240-17C00

$64.68

4

CUSHION

44894-04K00

Unavailable

5

CANISTER

17210-15H10

Unavailable

6

CAP (OD:11.5)

09251-07003

$2.53

7

CUSHION,CANISTER This part replaces 44883-06G00.

44883-06G01

$15.22

8

CLIP

09401-12404

$2.34

9

JOINT

09367-06009

Unavailable

10

HOSE,PURGE NO.1

18563-18K00

Unavailable

11

HOSE,PURGE NO.2

18564-18K00

Unavailable

12

HOSE,SURGE NO.2

18562-18K00

Unavailable

13

HOSE,SURGE NO.1

18561-18K00

Unavailable
