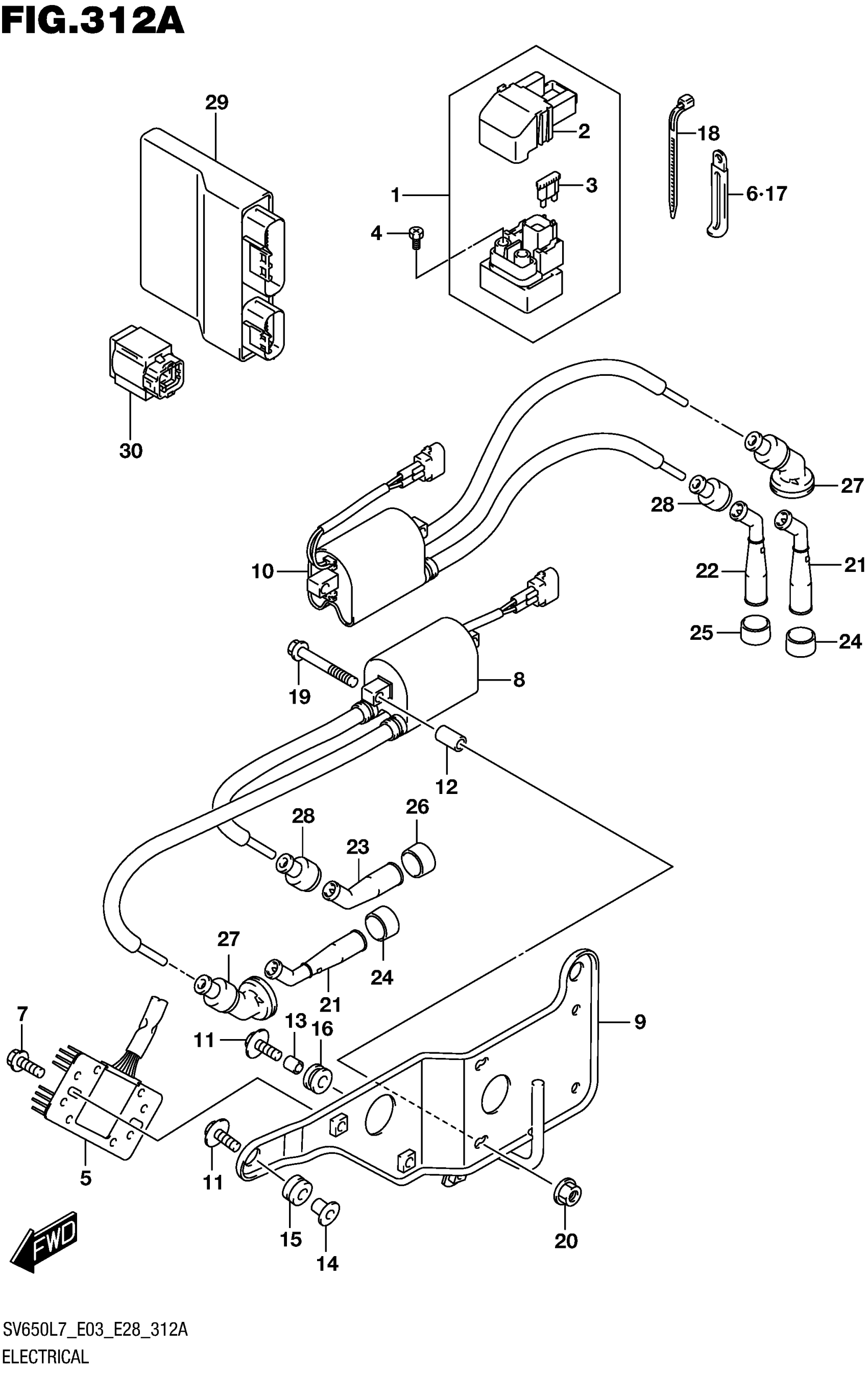

Suzuki SV650AL7 (2017) ELECTRICAL (SV650L7 E03) Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-06G00.

31800-06G02

$67.32

2

.COVER

31861-47E00

$16.15

3

.FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-47H00

$263.17

6

CLAMP (L:45)

09404-06429

$1.83

7

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

8

COIL ASSY,IGNIT This part replaces 33410-44H01.

33410-44H02

$126.03

9

BRACKET,IGN COIL REAR

33414-44H01

Unavailable

10

COIL ASSY,IGNIT This part replaces 33420-44H01.

33420-44H02

$126.03

11

BOLT (6X20)

09116-06182

$2.30

12

SPACER (6.4X10X18)

09180-06195

$3.68

13

SPACER (6.5X9X9)

09180-06263

$2.03

14

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

15

CUSHION

09320-08501

$3.23

16

CUSHION

09320-09016

$1.97

17

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

18

CLAMP (L:165)

09407-18402

$2.19

19

BOLT

01547-0640A

$2.32

20

NUT

08316-1006A

$2.19

21

CAP ASSY,SPARK PLUG

33510-17G00

$33.46

22

CAP ASSY,SPARK PLUG

33510-17G00

$33.46

23

CAP ASSY, SPARK PLUG (SIDE)

33510-20E00

$34.60

24

SEAL, SPARK PLUG CAP (CENTER)

33541-23E10

$6.54

25

SEAL, SPARK PLUG CAP (SIDE)

33541-23E10

$6.54

26

SEAL, SPARK PLUG CAP (SIDE)

33541-47D00

$7.83

27

SEAL,HIGH TENSION CORD CTR

33542-17G01

$8.12

27

SEAL,HIGH TENSION CORD CTR

33542-17G01

$8.12

28

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

29

CONTROL UNIT,FI This part replaces 32920-18K80.

32920-18K81

$1,013.23

30

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92
