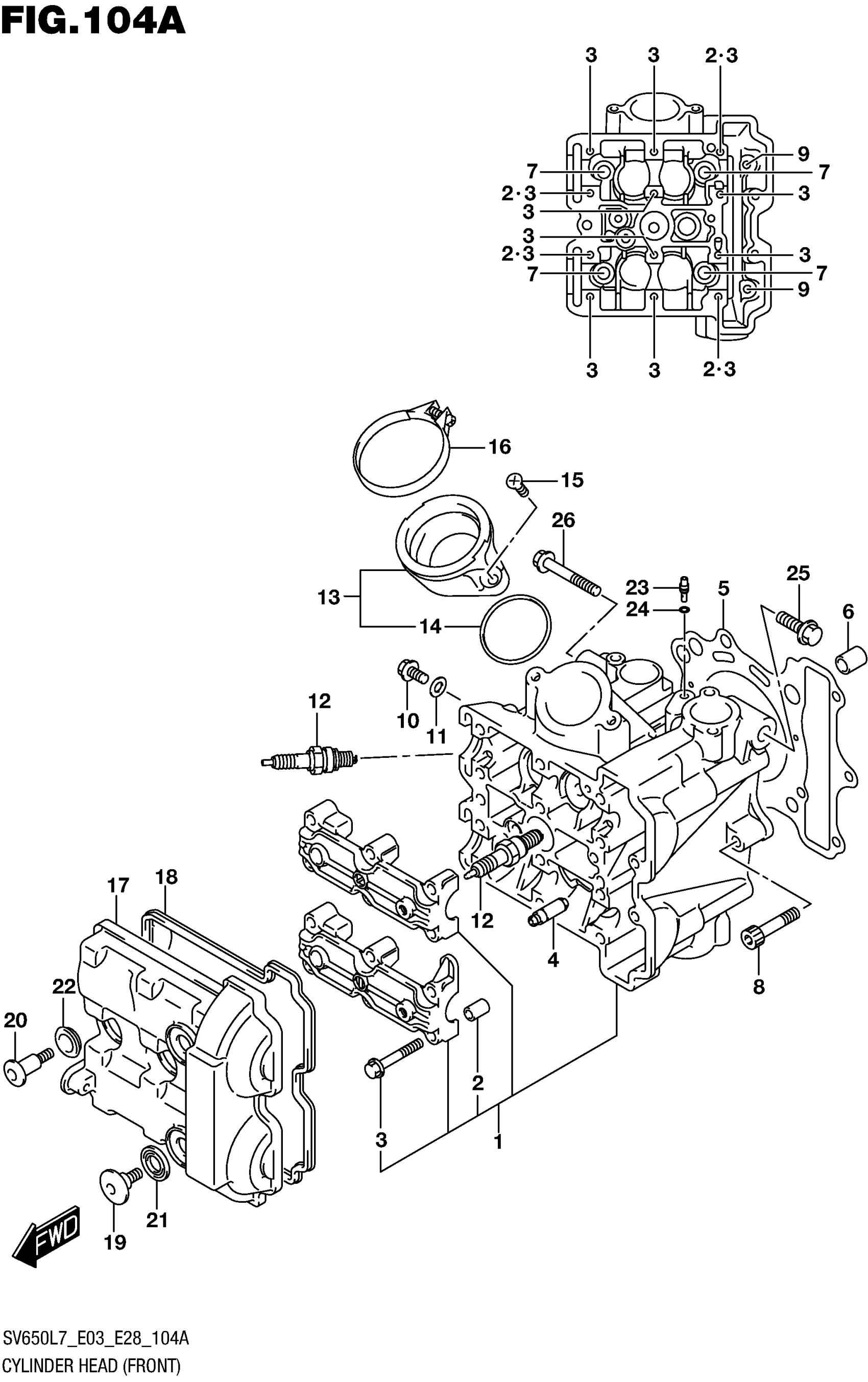

Suzuki SV650AL7 (2017) CYLINDER HEAD (FRONT) Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER FRONT This part replaces 11101-44H00.

11101-44H01

Unavailable

2

.PIN (8X11)

09206-08001

$1.78

3

.BOLT (6X40)

09103-06266

$2.12

4

GUIDE, VALVE (OS:0.3) | OPT

11115-18D72

$34.63

5

.GASKET,CYLINDER HEAD

11141-20F00

$43.52

6

PIN

04211-13189

$2.19

7

BOLT,CYL HEAD (L:160)

11117-44H00

$19.73

8

BOLT

07120-0640A

$3.05

9

BOLT (6X70)

09103-06103

$2.53

10

BOLT

01550-0612A

$1.97

11

GASKET (5.8X13X1.2)

09168-06023

$2.35

12

PLUG,SPARK (MR8E-9) | NGK

09482-00646

$18.38

13

PIPE ASSY,INTAKE FRONT This part replaces 13101-17G10.

13101-17G11

$47.03

14

.O-RING (D:2.4,ID:47X42) This part replaces 09280-46006.

09280-46007

$7.01

15

SCREW

02122-0616B

$1.96

16

CLAMP,INTAKE PIPE

13827-40H01

$15.37

17

COVER,CYLINDER HEAD FR

11171-19F20

$153.20

18

.GASKET,CYLINDER HEAD COVER

11173-19F01

$34.08

19

BOLT (7X17.5) This part replaces 09106-07009.

09106-07021

$4.50

20

BOLT (7X31)

09106-07010

$4.64

21

WASHER

11191-27E00

$4.27

22

CUSHION,HEAD COVER BOLT

11192-13E00

$4.34

23

JET(8)

09493-80005

$16.25

24

O RING (D:1.2,ID:4)

09280-04004

$1.91

25

BOLT (10X25)

09103-10378

$3.07

26

BOLT

01550-1070A

$3.72
