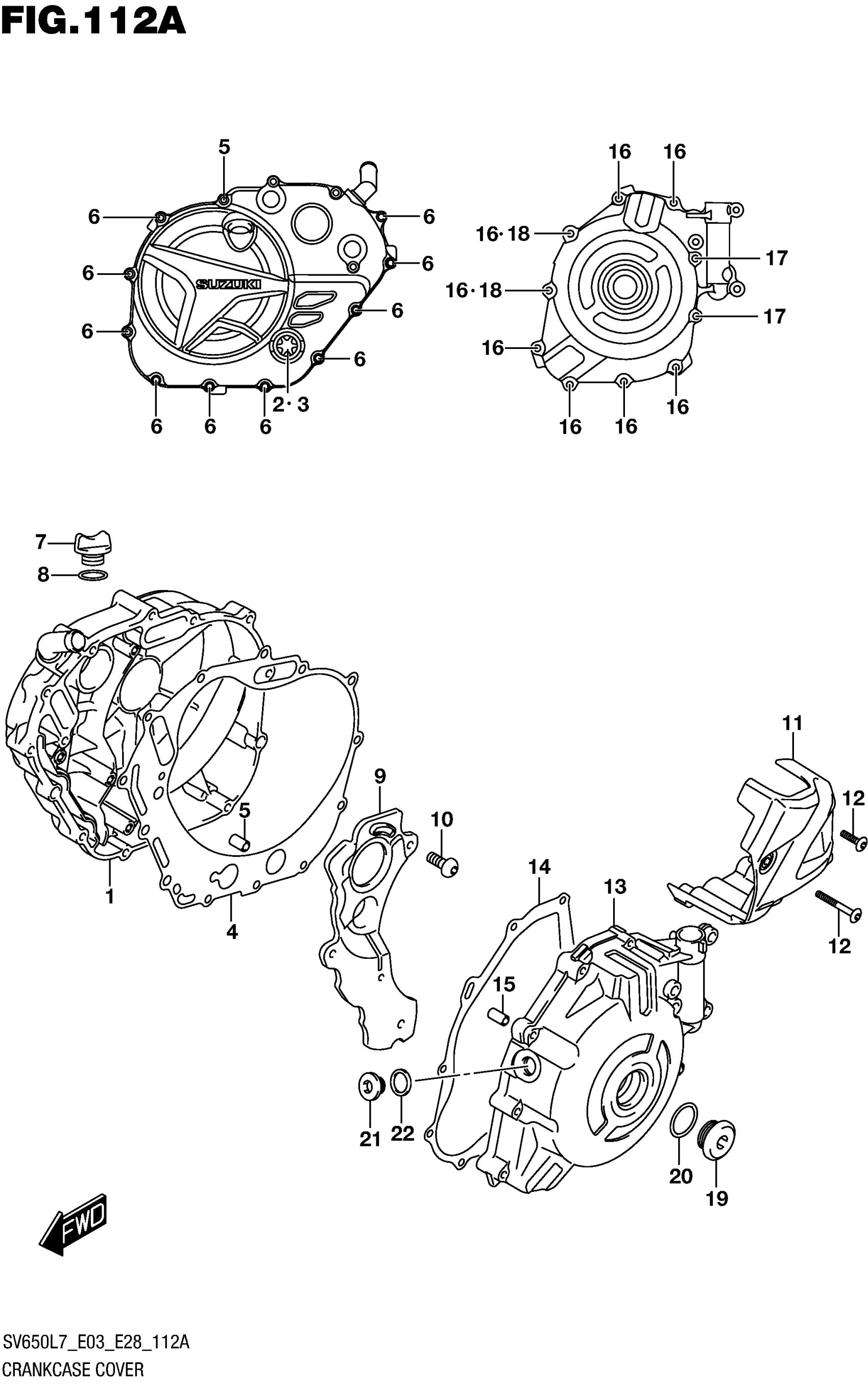

Suzuki SV650AL7 (2017) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11340-18K00

$340.82

2

.LENS, OIL LEVEL CHECK

11971-33210

$18.20

3

.CIRCLIP

08331-4130A

$2.70

4

.GASKET,CLUTCH COVER

11482-44H00

$18.76

5

PIN

04211-09149

$1.65

6

BOLT (6X35)

09103-06214

$2.48

7

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

8

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

9

SEPARATOR,OIL

11343-44H01

$51.92

10

BOLT (6X12)

09106-06098

Unavailable

11

COVER,ENG SPROCKET

11360-18K00

$42.05

12

SCREW (6X25)

09139-06029

$5.36

13

COVER,MAGNETO

11351-44H10

$284.22

14

.GASKET,MAGNETO COVER

11483-19F00

$12.78

15

PIN

04211-09149

$1.65

16

BOLT (6X35)

09103-06214

$2.48

17

BOLT (6X65)

09103-06239

$2.66

18

GASKET (5.8X13X1.2)

09168-06023

$2.35

19

PLUG

09259-26012

$11.09

20

O RING (D:3.1,ID:22.7)

09280-22008

$2.27

21

PLUG (16X8)

09248-16012

$4.64

22

GASKET (16X22X2)

09168-16002

$1.91
