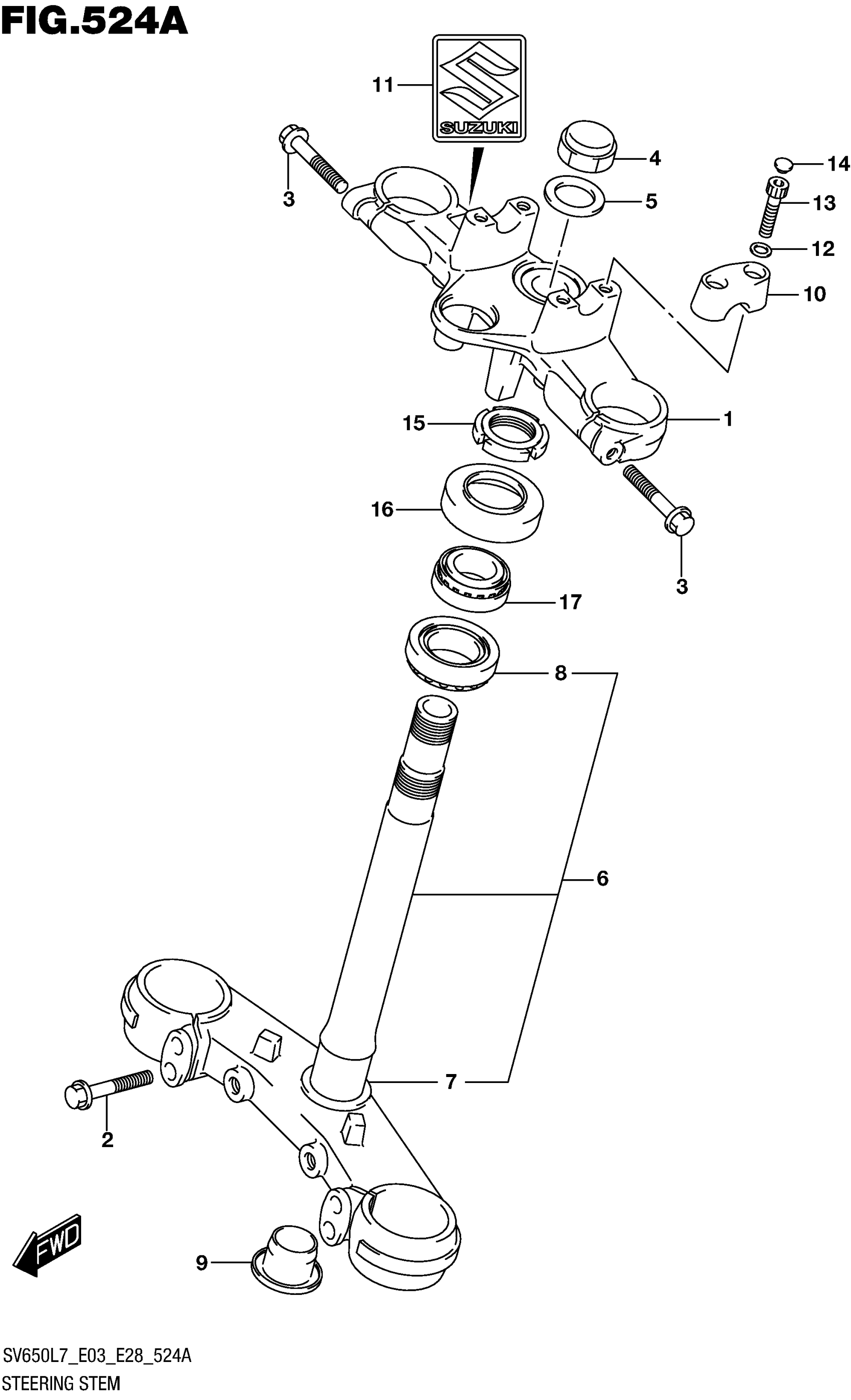

Suzuki SV650AL7 (2017) STEERING STEM Diagram

#

Description
Price

1

HEAD,STEERING STEM (BLACK)

51311-44H00-291

$317.55

2

BOLT

51328-44H00

$6.35

3

BOLT

51328-44H00

$6.35

4

NUT, STEM This part replaces 51353-38A01.

51353-24B00

$34.62

5

WASHER

51356-24B01

$7.13

6

BRACKET, UNDER (BLACK)

51410-44HA0-291

$488.28

7

.SEAL, STEERING LOWER

51644-12C00

$8.65

8

.BEARING (30X55X17)

09265-30020

$40.65

9

CAP

51482-44H00

$11.08

10

HOLDER,HANDLE (BLACK)

56211-44H00-291

$34.38

11

EMBLEM, "S"

68281-47HA0

$7.11

12

WASHER

09164-08015

$2.90

13

BOLT

07130-0825B

$3.04

14

CAP This part replaces 09250-06008.

09250-06016

$1.94

15

NUT,STEERING STEM

51631-31F10

$18.07

16

SEAL,DUST This part replaces 51643-40502.

51643-40503

$5.79

17

BEARING (25X47X15)

09265-25038

$41.11
