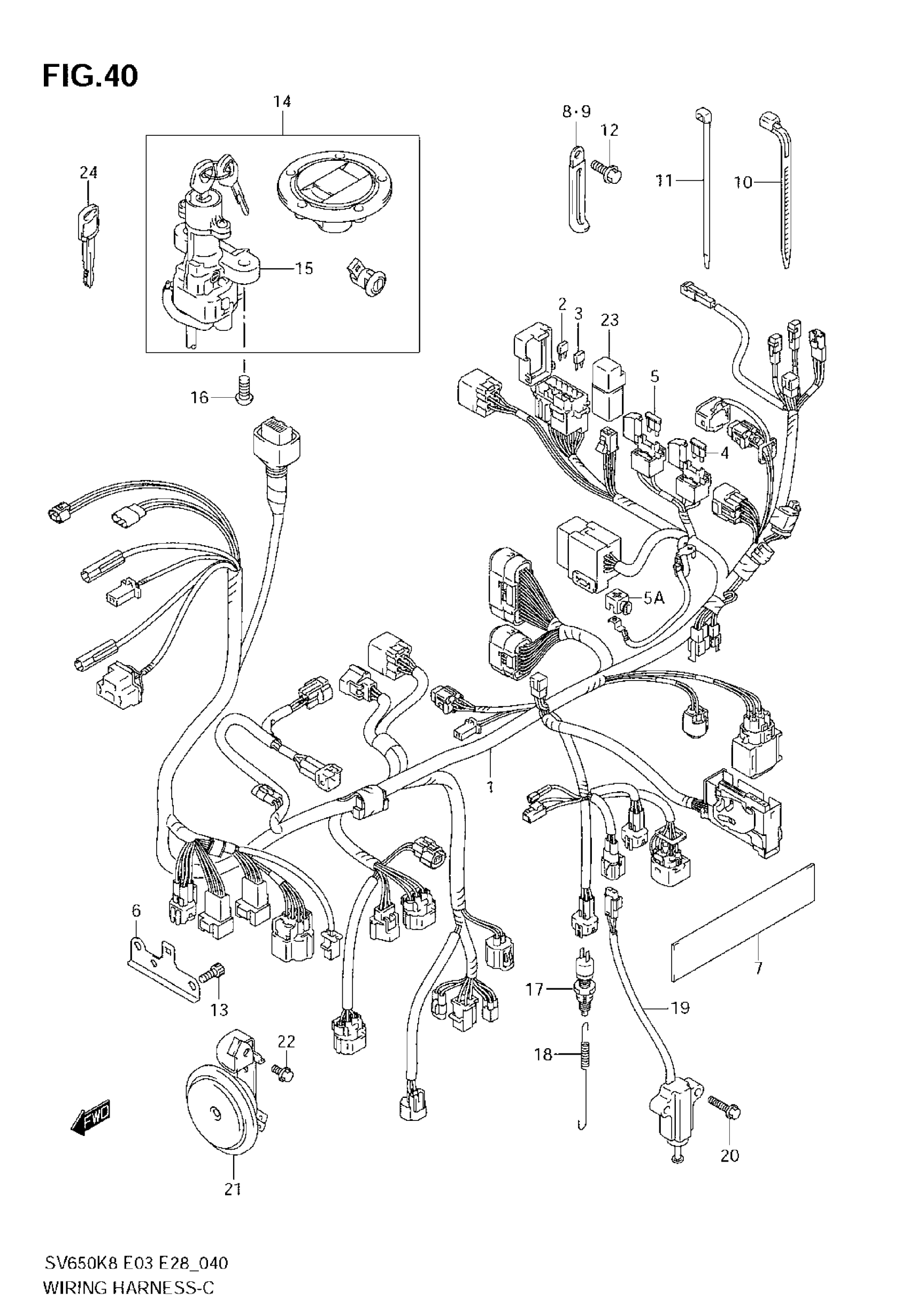

Suzuki SV650 (2008) WIRING HARNESS (SV650AK7) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-17GP0

Unavailable

1

NO DESCRIPTION AVAILABLE | E33; Includes Item(s) 2 - 5A This part replaces 36610-17GN0.

36610-17GN1

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

.FUSE (25A) This part replaces 09481-25101.

09481-25103

Unavailable

5

FUSE (40A)

09481-40101

$9.35

5A

CAP, BATTERY (+)

33624-16G00

$5.78

6

HOLDER, COUPLER

36687-17G10

Unavailable

7

PROTECTOR,20X90X1.0 (20X90X1.

33652-26E00

$3.70

8

CLAMP (L:45)

09404-06429

$1.83

8

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

9

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.65

10

CLAMP (L:95)

09407-11401

$2.63

10

CLAMP (L:165)

09407-18402

$2.19

11

CLAMP (L:145)

09407-14407

$3.57

12

BOLT, WIRING HARNESS

01550-0612B

$2.39

12

BOLT, WIRING HARNESS

01550-0610A

$1.97

13

SCREW, WIRING HARNESS

07130-0610B

$3.21

14

LOCK SET This part replaces 37000-16840.

37000-16844

$386.02

14

LOCK SET | E33; Includes Item(s) 15 This part replaces 37000-16850.

37000-16852

$409.95

15

LOCK ASSY,STEER This part replaces 37100-16G00.

37100-16G02

$188.90

16

BOLT (8X20)

09139-08016

$3.37

17

SWITCH ASSY, STOP LAMP

37740-45D00

$18.27

18

SPRING

09443-06016

$3.30

19

SWITCH ASSY,SID This part replaces 37840-16G00.

37840-16G01

$88.27

20

BOLT

01550-06257

$2.30

21

HORN ASSY This part replaces 38500-17G10.

38500-17G11

$92.83

22

BOLT, HORN

01550-0612B

$2.39

23

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

24

KEY, BLANK | OPT

37146-33E00

$21.21
