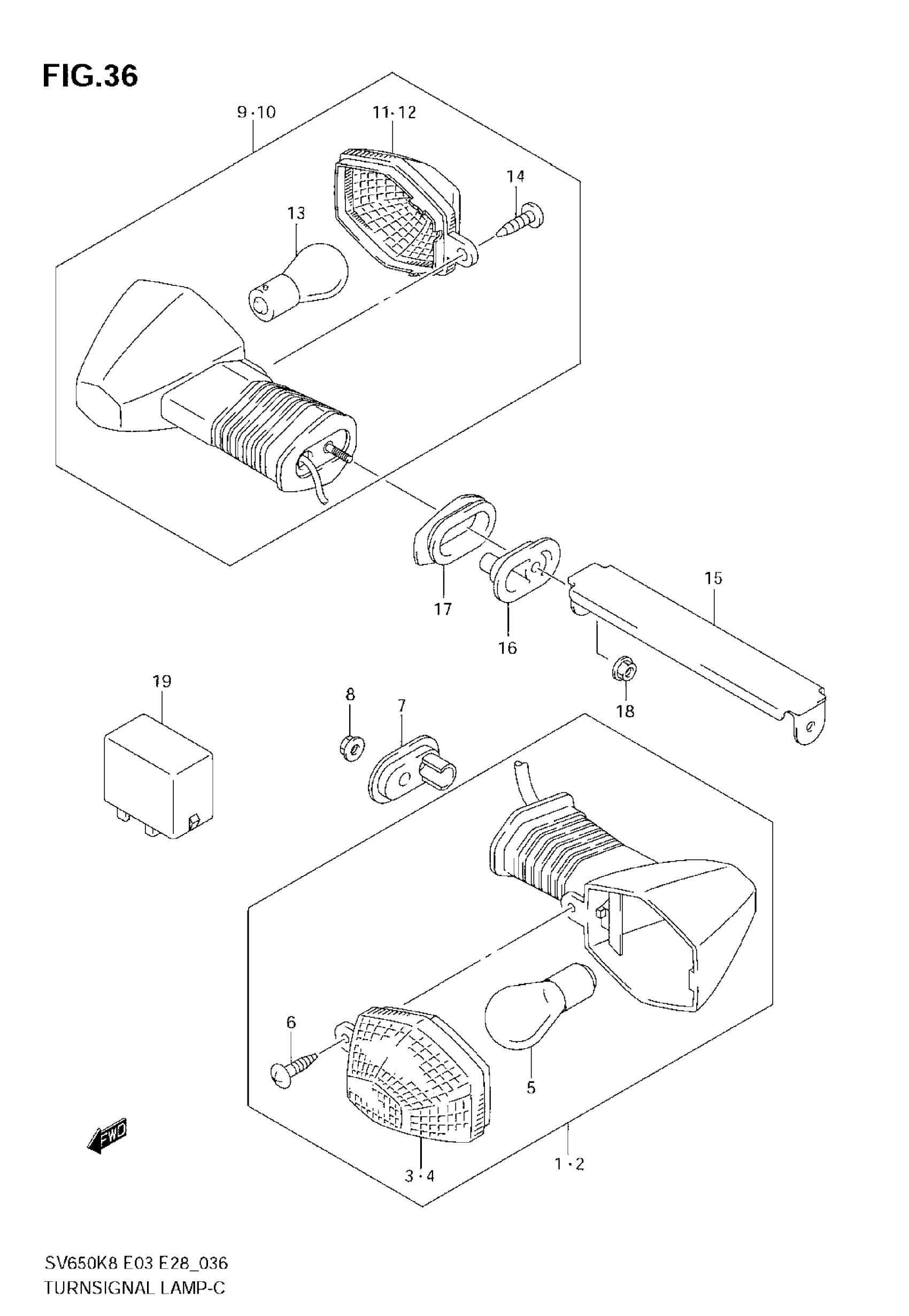

Suzuki SV650 (2008) TURNSIGNAL LAMP (SV650K8/AK8) Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-29F60

Unavailable

2

LAMP ASSY, FRONT TURNSIGNAL LH | Includes Item(s) 3 - 6

35602-29F60

Unavailable

3

LENS, RH

35612-31F30

$13.90

4

LENS, LH

35632-31F30

$14.37

5

BULB (12V,21W)

09471-12045

$3.27

6

SCREW This part replaces 03242-04163.

03242-0416B

$2.93

7

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.40

8

NUT

08316-1005B

$2.50

9

LAMP ASSY, REAR TURNSIGNAL RH

35603-16GC0

$94.85

10

LAMP ASSY, REAR TURNSIGNAL LH | Includes Item(s) 11 - 14

35604-16GC0

$94.85

11

LENS, RH

35632-31F30

$14.37

12

LENS, LH

35612-31F30

$13.90

13

BULB (12V,21W)

09471-12045

$3.27

14

SCREW This part replaces 03242-04163.

03242-0416B

$2.93

15

BRACKET, REAR TURNSIGNAL

35620-16G00

$15.75

16

PLATE, REAR TURNSIGNAL

35629-16G00

$5.58

17

CUSHION, REAR

35647-16G00

$6.47

18

NUT

08316-1005B

$2.50

19

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08
