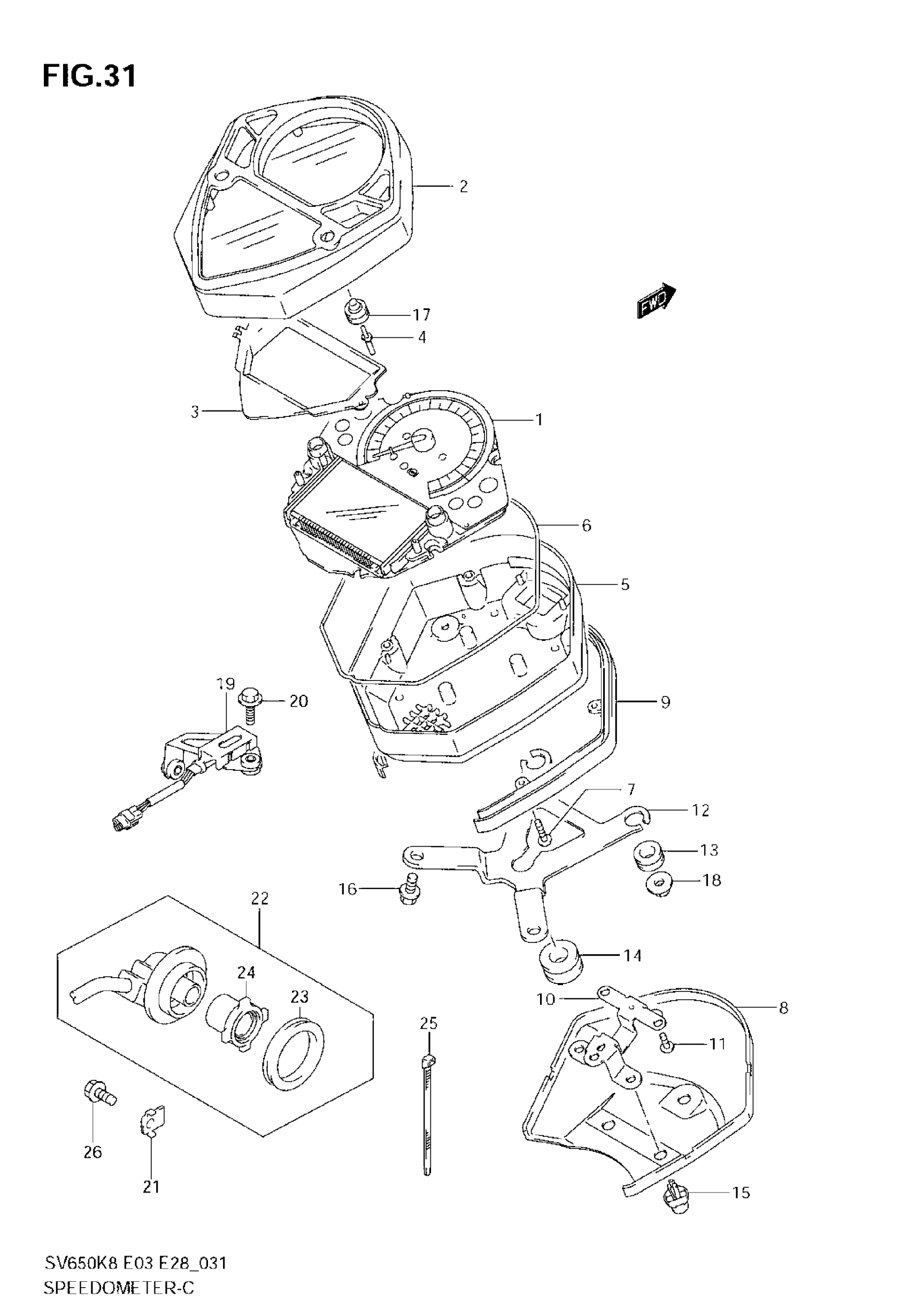

Suzuki SV650 (2008) SPEEDOMETER (SV650AK8) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-17GH0

Unavailable

1

SPEEDOMETER (KILO) | E28

34120-17GF0

Unavailable

2

CASE, SPEEDOMETER UPPER

34150-16G30

Unavailable

3

PLATE, SPEEDOMETER

34125-16G00

Unavailable

4

KNOB, SPEEDOMETER

34124-16G00

$9.42

5

CASE, SPEEDOMETER LOWER

34152-16G00

$56.48

6

GASKET, METER CASE

34153-16G00

$15.25

7

SCREW, SPEEDOMETER

34183-16G30

$4.52

8

COVER, SPEEDOMETER LOWER

34156-16G30

$70.70

9

DECORATION PLATE, METER CASE

34157-16G30

$83.43

10

HOLDER, SPEEDOMETER

34195-16G30

$24.07

11

SCREW

34149-16B00

$1.98

12

BRACKET, SPEEDOMETER CASE

34162-16G30

$56.48

13

.CUSHION

34996-43410

$4.35

14

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

15

CLIP, SPEEDOMETER

09409-07332

$2.50

16

BOLT, SPEEDOMETER

07120-0616B

$2.45

17

COVER

34126-16G00

Unavailable

18

NUT This part replaces 09159-05044.

09159-05049

$2.30

19

RESISTOR ASSY

36510-16G00

Unavailable

20

BOLT (6X25)

09116-06047

Unavailable

21

GUIDE, SENSOR LEAD

34938-14F00

$6.30

22

SENSOR, SPEED | Includes Item(s) 23 - 24

34990-17G40

Unavailable

23

SEAL, SENSOR OIL

09286-44001

$11.67

24

MAGNET

34983-27G00

$32.36

25

CLAMP (L:100)

09407-10404

$2.90

26

BOLT

01547-0612B

$1.49
