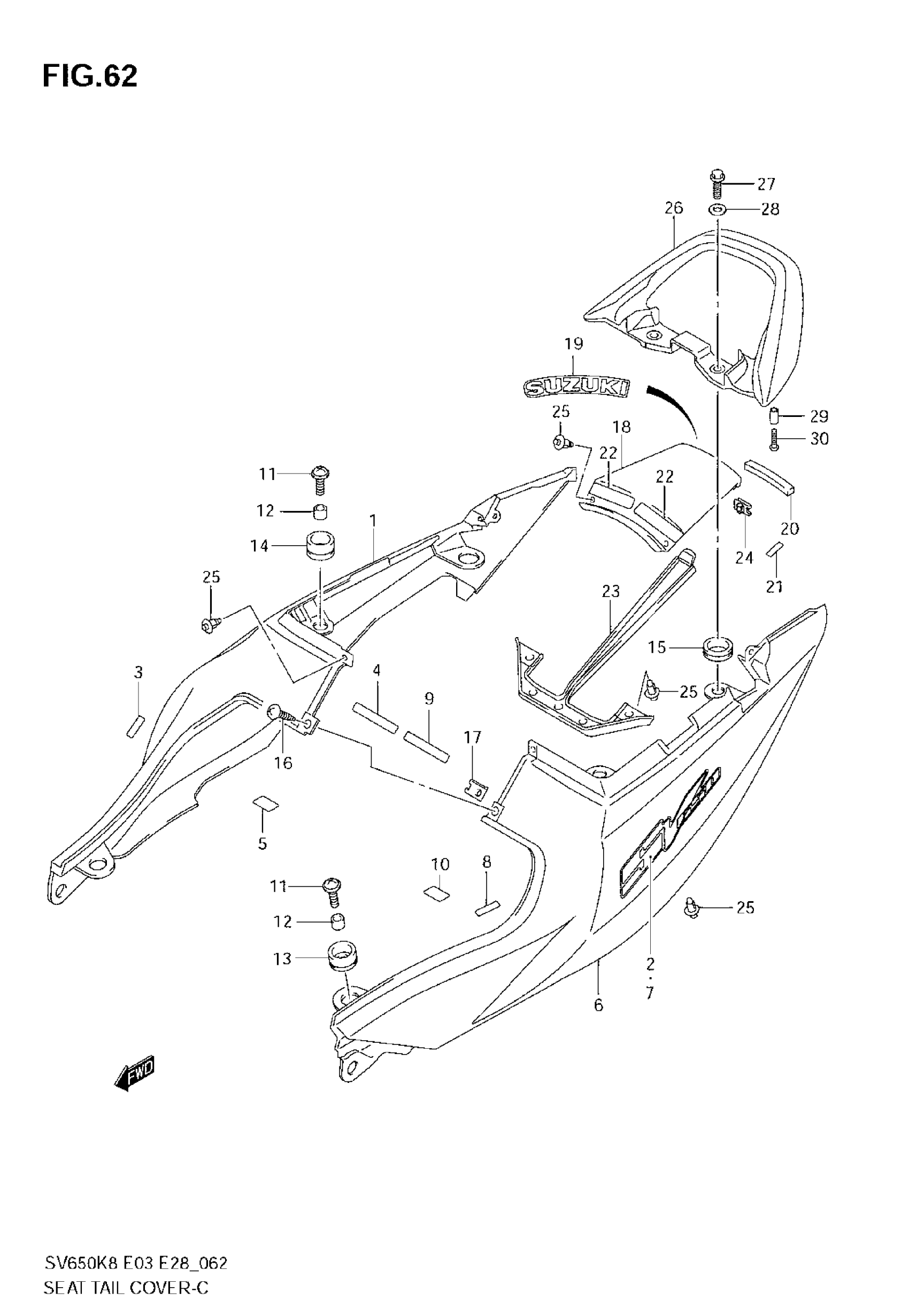

Suzuki SV650 (2008) SEAT TAIL COVER (SV650K8/AK8) Diagram

#

Description
Price

1

COVER, SEAT TAIL, R (BLUE) | FOR YKZ

45501-17G11-YKZ

Unavailable

1

COVER,SEAT TAIL | FOR YLF This part replaces 45501-17G11-YLF.

45501-17G12-YLF

$205.58

1

COVER, SEAT TAIL, R (WHITE) | FOR YPA

45501-17G11-YPA

Unavailable

1

COVER, SEAT TAIL, R (BLACK) | FOR YAY; Includes Item(s) 2 - 5

45501-17G11-4DX

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR 4DX

68161-17G00-FEJ

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YKZ

68161-17G00-FNW

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YLF

68161-17G00-FEL

Unavailable

2

EMBLEM, SEAT TAIL COVER | FOR YPA

68161-17G00-FEM

Unavailable

3

TAPE, SEAT TAIL COVER FR

45516-42F00

$8.93

4

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

5

TAPE, SEAT TAIL COVER FR NO.3

47161-10D00

$5.98

6

COVER, SEAT TAIL, L (BLUE) | FOR YKZ

45502-17G11-YKZ

Unavailable

6

COVER, SEAT TAIL, L (GRAY) | FOR YLF

45502-17G11-YLF

Unavailable

6

COVER, SEAT TAIL, L (WHITE) | FOR YPA

45502-17G11-YPA

Unavailable

6

COVER, SEAT TAIL, L (BLACK) | FOR YAY; Includes Item(s) 7 - 10

45502-17G11-4DX

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR 4DX

68161-17G00-FEJ

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR YKZ

68161-17G00-FNW

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR YLF

68161-17G00-FEL

Unavailable

7

EMBLEM, SEAT TAIL COVER | FOR YPA

68161-17G00-FEM

Unavailable

8

TAPE, SEAT TAIL COVER FR

45516-42F00

$8.93

9

TAPE, SEAT TAIL COVER FR NO.2

45517-16G10

Unavailable

10

TAPE, SEAT TAIL COVER FR NO.3

47161-10D00

$5.98

11

SCREW

09136-06082

$2.12

12

SPACER

09180-06286

$2.50

13

CUSHION | FR This part replaces 09320-10052.

09320-10079

$3.61

14

CUSHION,FRAME COVER UP | CTR This part replaces 47115-16G00.

47115-16G01

$3.37

15

CUSHION (20X32X9) | RR This part replaces 09320-20010.

09320-20011

$2.69

16

SCREW

03241-1512B

$2.39

17

NUT

09148-05038

$1.97

18

COVER, SEAT TAIL, CENTER (BLUE)

45503-16G00-YKZ

Unavailable

18

COVER, SEAT TAIL, CENTER (GRAY)

45503-16G00-YLF

Unavailable

18

COVER, SEAT TAIL, CENTER (WHITE)

45503-16G00-YPA

Unavailable

18

COVER,SEAT TAIL | Includes Item(s) 19 - 22 This part replaces 45503-16G00-YAY.

45503-16G01-YAY

$95.77

19

.EMBLEM,SUZUKI (SILVER) | FOR YAY,YKZ This part replaces 68161-16G00-YD8.

68161-16G01-YD8

$7.20

19

EMBLEM, "SUZUKI" | FOR YLF

68161-16G00-019

Unavailable

19

EMBLEM, "SUZUKI" | FOR YPA

68161-16G00-17U

Unavailable

20

CUSHION, SEAT TAIL COVER CTR

45518-16G00

$6.47

21

TAPE, SEAT TAIL COVER

45517-16G00

$8.05

22

TAPE

45516-42F00

$8.93

23

COVER, SEAT TAIL, REAR (BLUE)

45514-16G00-YKZ

$71.72

23

COVER, SEAT TAIL, REAR (GRAY)

45514-16G00-YLF

Unavailable

23

COVER, SEAT TAIL, REAR (WHITE)

45514-16G00-YPA

Unavailable

23

COVER, SEAT TAIL, REAR (BLACK)

45514-16G00-YAY

$77.92

24

NUT

09148-06018

$3.16

25

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

26

HANDLE, PILLION RIDER (BLUE)

46211-16G00-YKZ

Unavailable

26

HANDLE, PILLION RIDER (GRAY)

46211-16G00-YLF

Unavailable

26

HANDLE, PILLION RIDER (WHITE)

46211-16G00-YPA

Unavailable

26

HANDLE, PILLION RIDER (BLACK)

46211-16G00-YAY

Unavailable

27

BOLT

01551-0840B

$3.29

28

WASHER (8.5X24X2.3)

09160-08158

$2.35

29

SPACER

09180-06271

$2.35

30

SCREW

09139-06112

$3.93
