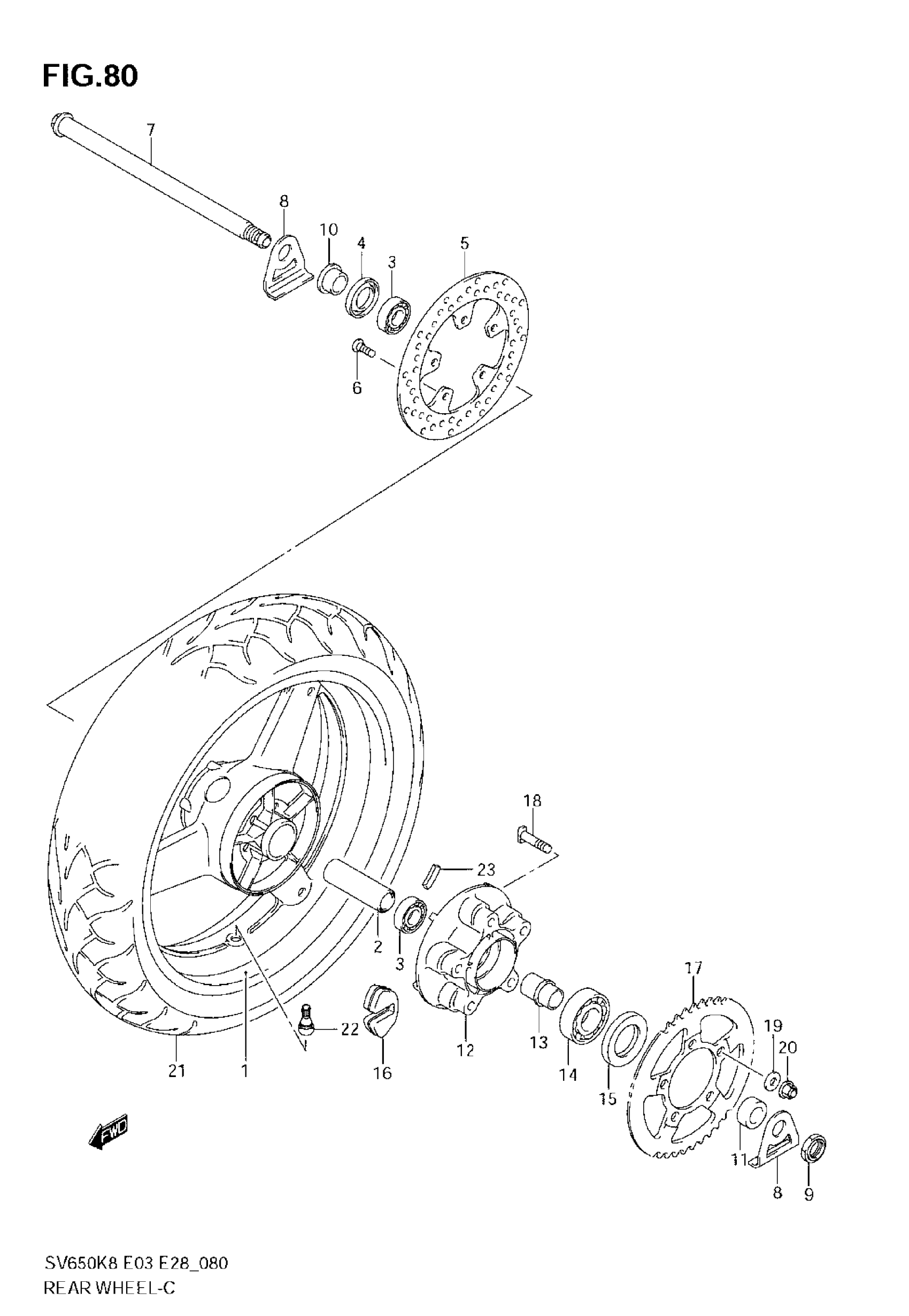

Suzuki SV650 (2008) REAR WHEEL (SV650K8/SK8) Diagram

#

Description
Price

1

WHEEL, REAR 17M/CXMT4.50 (SILVER) | FOR YAY,YPA

64111-08F11-YMY

Unavailable

1

WHEEL, REAR 17M/CXMT4.50 (BLACK) | FOR YKZ,YLF

64111-08F11-019

Unavailable

2

SPACER, HUB BEARING

09180-20062

$19.13

3

BEARING (20X47X14)

09262-20042

$23.28

4

SEAL,OIL (27X47X7) This part replaces 09285-28001.

09285-28004

$12.49

5

DISC, REAR BRAKE

69211-40F10

$318.10

6

BOLT (8X33)

09106-08148

$4.80

7

AXLE, REAR

64711-17G00

$119.95

8

WASHER

61445-17G00

$8.60

9

NUT

08319-3118A

$24.48

10

SPACER,RR AXLE,R

64741-22D00

$23.13

11

SPACER, AXLE LH

64751-26E00

$24.55

12

DRUM, REAR SPROCKET

64611-19F00

Unavailable

13

RETAINER,RR HUB BEARING

64733-27A00

$26.93

14

BEARING (25X62X17)

09262-25073

$25.92

15

SEAL,OIL (35X62X8)

09285-35001

$10.19

16

ABSORBER,RR HUB SHOCK

64651-27A01

$9.78

17

SPROCKET, REAR (NT:45)

64511-32C00

$93.37

18

BOLT

09119-10043

$4.26

19

WASHER (10.5X22X2.3) This part replaces 09160-10506.

09160-10039

$2.26

20

NUT

08319-3110A

$2.73

21

TIRE, REAR, 160/60ZR17M/C (69W)(DUNLOP) | DT220 ST L

65110-17G00

$406.73

22

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

23

BALANCER, WHEEL NO.1

55411-17G00

$7.63

23

BALANCER, WHEEL NO.2

55412-17G00

$7.05

23

BALANCER, WHEEL NO.3

55413-17G00

Unavailable
