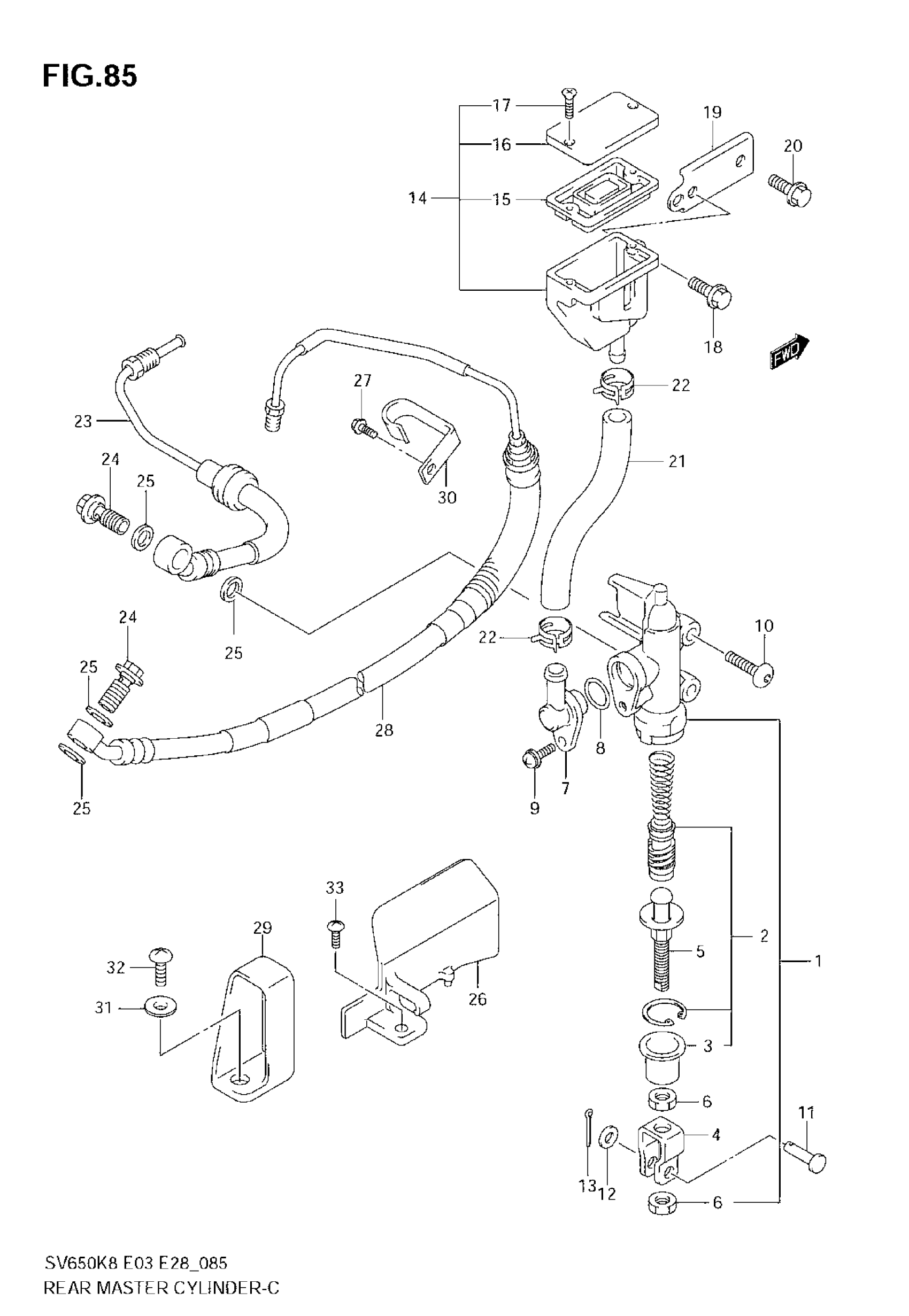

Suzuki SV650 (2008) REAR MASTER CYLINDER (SV650AK8/SAK8) Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-16G00

$223.63

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$25.44

3

.BOOT

69691-00A00

$5.22

4

YOKE

69692-27A30

$13.59

5

ROD, PUSH

69670-48B00

$35.80

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-05A00

$5.47

8

O RING

69686-34200

$2.80

9

SCREW

02112-7412A

$2.67

10

BOLT (6X20)

09139-06028

$3.44

11

PIN

09200-06068

$3.82

12

WASHER

08322-0106B

$2.31

13

COTTER PIN

04111-2015A

$1.25

14

TANK ASSY,RR RESERVOIR | Includes Item(s) 15 - 17

69740-01D02

$67.43

15

DIAPHRAGM

59667-04700

$9.36

16

CAP

59669-05D00

$16.49

17

SCREW

69689-04A00

$2.15

18

BOLT, TANK

09103-06222

$2.35

19

BRACKET, RR RESERVOIR TANK

69750-16G10

$18.93

20

BOLT, BRACKET

01550-0616A

$2.01

21

HOSE, RESERVOIR TANK

69731-16G20

$22.72

22

CLIP

09401-13417

$2.31

23

HOSE, ASSY, REAR BRAKE NO.1

69200-17G00

Unavailable

24

BOLT (10X1.25X22)

09360-10062

$5.99

25

WASHER (10X15X1.5)

09161-10009

$1.89

26

GUIDE, RR BRAKE HOSE FR This part replaces 61196-06G00.

61196-06G10

$21.88

27

BOLT

01547-0616A

$2.09

28

HOSE ASSY,RR BR This part replaces 69400-17G00.

69400-17G01

$222.68

29

GUIDE, REAR BRAKE HOSE

69243-16G00

Unavailable

30

CLAMP, REAR BRAKE HOSE NO.2

69266-17G00

Unavailable

31

WASHER, GUIDE RR BRAKE HOSE

09169-06041

$2.02

32

SCREW

02142-0616A

$1.41

33

SCREW This part replaces 02142-0510A.

02142-0510B

$1.82
