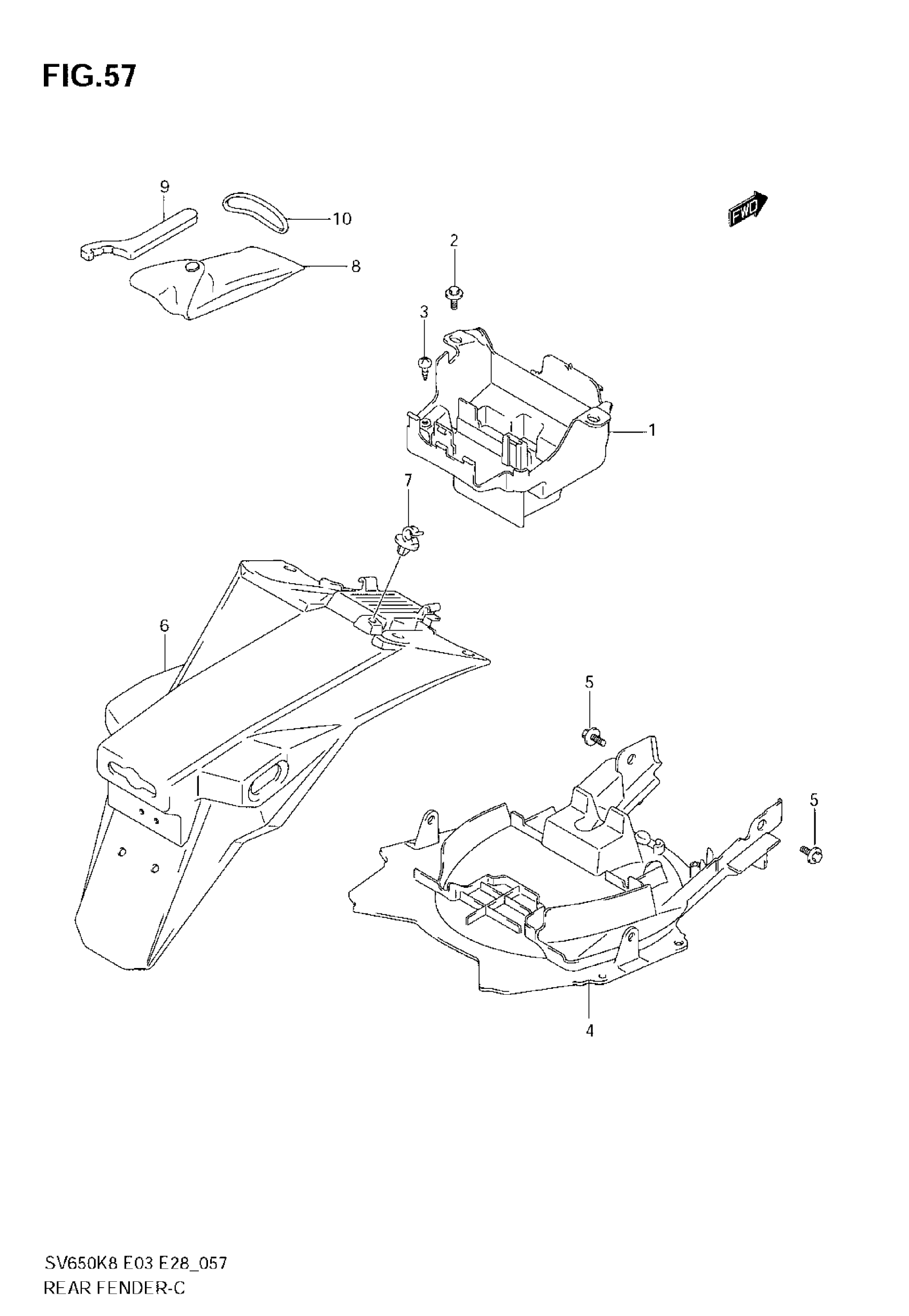

Suzuki SV650 (2008) REAR FENDER (SV650A/SA) Diagram

#

Description
Price

1

HOLDER, BATTERY

47431-16GC0

Unavailable

2

BOLT (6X12) This part replaces 63161-43E00.

09111-06107

$2.66

3

SCREW

03541-0516B

$1.77

4

FENDER, REAR FRONT

63111-16GC0

Unavailable

5

BOLT

09116-06210

$2.68

6

FENDER, REAR REAR

63112-16GC0

Unavailable

7

CLAMP

09403-07325

$2.02

8

TOOL ASSY

09800-21035

Unavailable

9

CLAMP, WRENCH

09822-00004

$15.68

10

O RING(D:3.5,ID This part replaces 09280-61002.

09280-61004

$2.50
