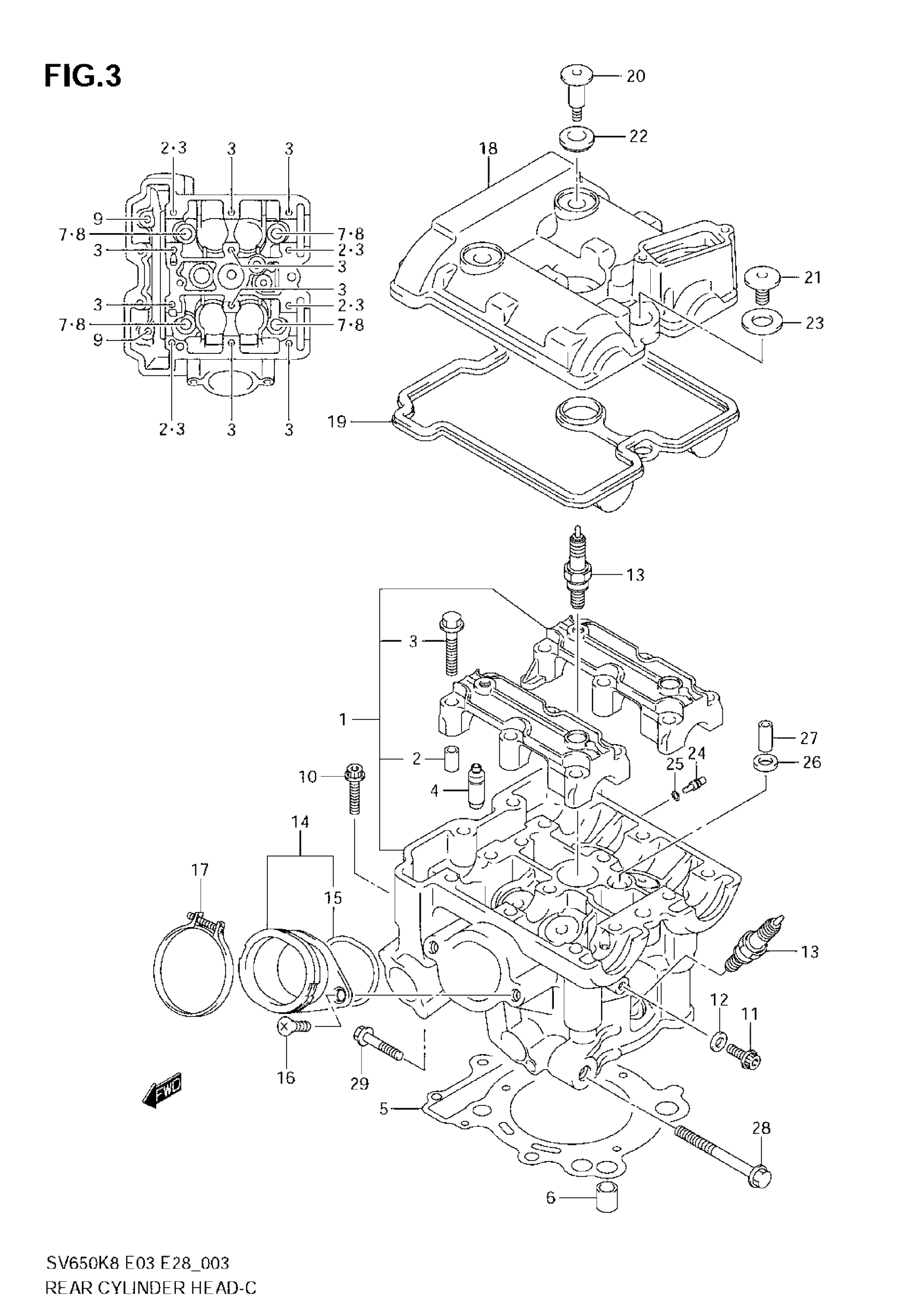

Suzuki SV650 (2008) REAR CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR | Includes Item(s) 2 - 3

11103-17G20

Unavailable

2

PIN (6.2X8X11)

09206-08001

$1.78

3

BOLT (6X39)

09103-06026

$1.98

4

GUIDE, VALVE | OPT

11115-18D72

$34.63

5

.GASKET,CYLINDER HEAD

11141-20F00

$43.52

6

PIN

04211-13189

$2.19

7

WASHER (10.5X19X2.0)

09160-10082

$1.61

8

BOLT (10X160)

09103-10272

$15.32

9

BOLT (6X70)

09103-06103

$2.53

10

BOLT

07120-0640B

$3.37

11

BOLT

07120-0612B

$3.04

12

GASKET (5.8X13X1.2)

09168-06023

$2.35

13

SPARK PLUG (NGK,CR8E)

09482-00456

$6.73

13

SPARK PLUG (DENSO,U24ESR-N)

09482-00457

$6.09

13

PLUG SPARK (CR9E) | OPT

09482-00458

$6.47

13

SPARK PLUG (DENSO,U27ESR-N) | OPT

09482-00459

$6.09

13

SPARK PLUG (NGK,CR7E) | OPT

09482-00516

$6.47

13

SPARK PLUG (DENSO,U22ESR-N) | OPT

09482-00515

$5.97

14

PIPE ASSY,INTAKE REAR | Includes Item(s) 15 This part replaces 13102-17G10.

13102-17G11

$56.27

15

.O-RING (D:2.4,ID:47X42) This part replaces 09280-46006.

09280-46007

$7.01

16

SCREW

02122-0616B

$1.96

17

CLAMP

09402-62208

$6.58

18

COVER, CYLINDER HEAD REAR

11172-17G00

Unavailable

19

.GASKET,CYLINDER HEAD COVER

11173-19F01

$34.08

20

BOLT (7X17.5)

09106-07021

$4.50

21

BOLT (7X31)

09106-07010

$4.64

22

WASHER

11191-27E00

$4.27

23

CUSHION,HEAD COVER BOLT

11192-13E00

$4.34

24

JET, OIL

09493-80005

$16.25

25

O RING

09280-04004

$1.91

26

GASKET, 2ND AIR PASSAGE

11182-35F00

$3.29

27

PIN

09206-08007

$2.60

28

BOLT (10X110)

09103-10148

$6.94

29

BOLT

01550-10557

$3.91
