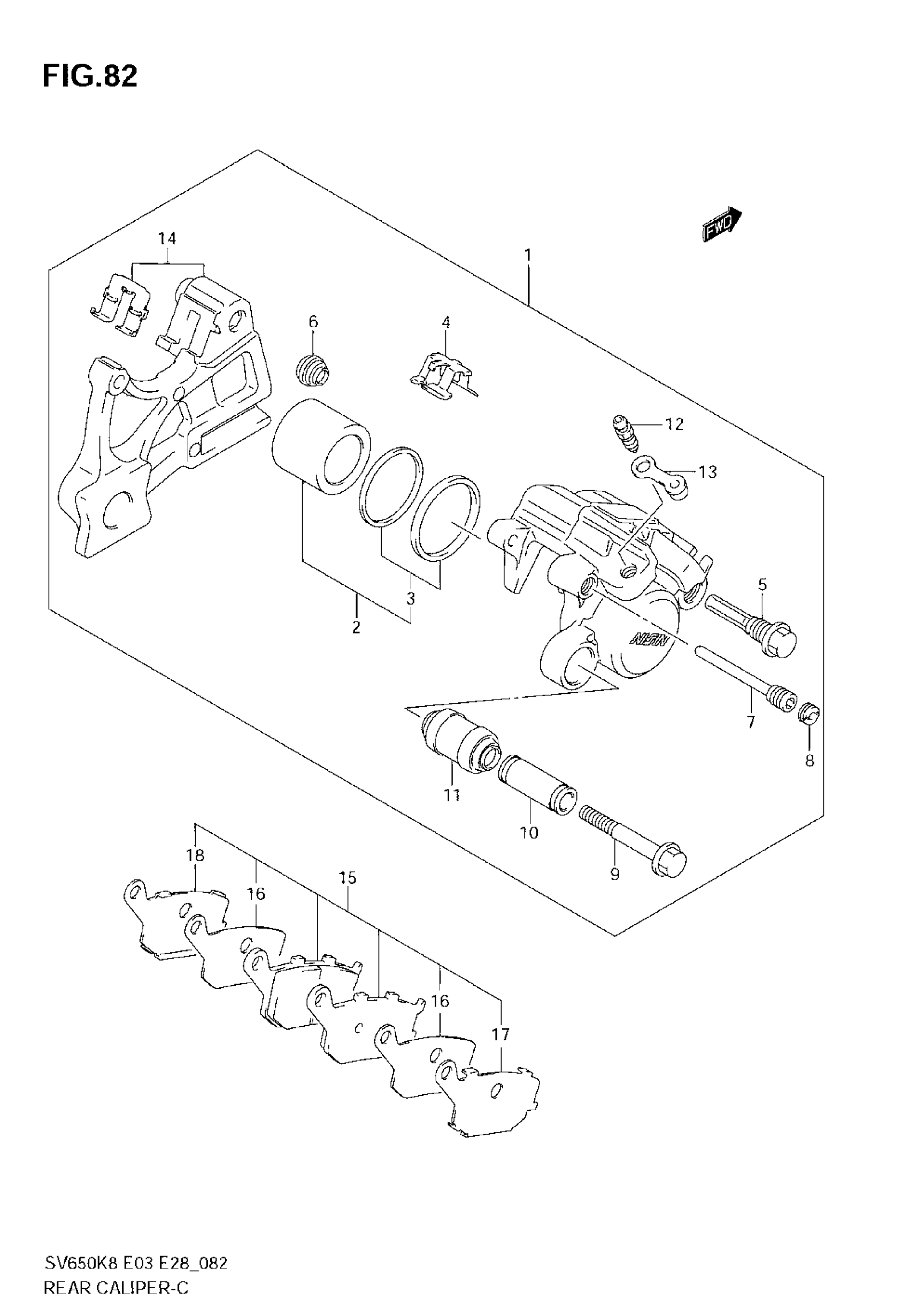

Suzuki SV650 (2008) REAR CALIPER (SV650K8/SK8) Diagram

#

Description
Price

1

CALIPER ASSY,RE | Includes Item(s) 2 - 14 This part replaces 69100-17G00-999.

69100-17G01-999

$518.67

2

PISTON SET

69100-04810

$62.68

3

..SEAL SET,PISTON

69100-04820

$8.64

4

.SPRING,PAD

69115-06G00

$13.29

5

BOLT

69105-04F00

$13.86

6

BOOT

59303-14500

$5.29

7

PIN, HANGER

69141-40F00

$29.01

8

PLUG

59146-21E10

$5.88

9

BOLT

69182-04F00

$8.93

10

SLEEVE

69185-04F00

$20.88

11

.BOOT,SLEEVE

69186-04F00

$13.01

12

BLEEDER

59121-01A00

$8.35

13

CAP

59122-01A00

$4.15

14

BRACKET

69150-17G00

$168.12

15

PAD & RETAINER SET | Includes Item(s) 16 - 18 This part replaces 69100-16851.

69100-16852

$59.80

16

INSULATOR

69132-06G00

$23.48

17

.RETAINER

69133-16G00

$18.93

18

.RETAINER

69134-16G00

$18.60
