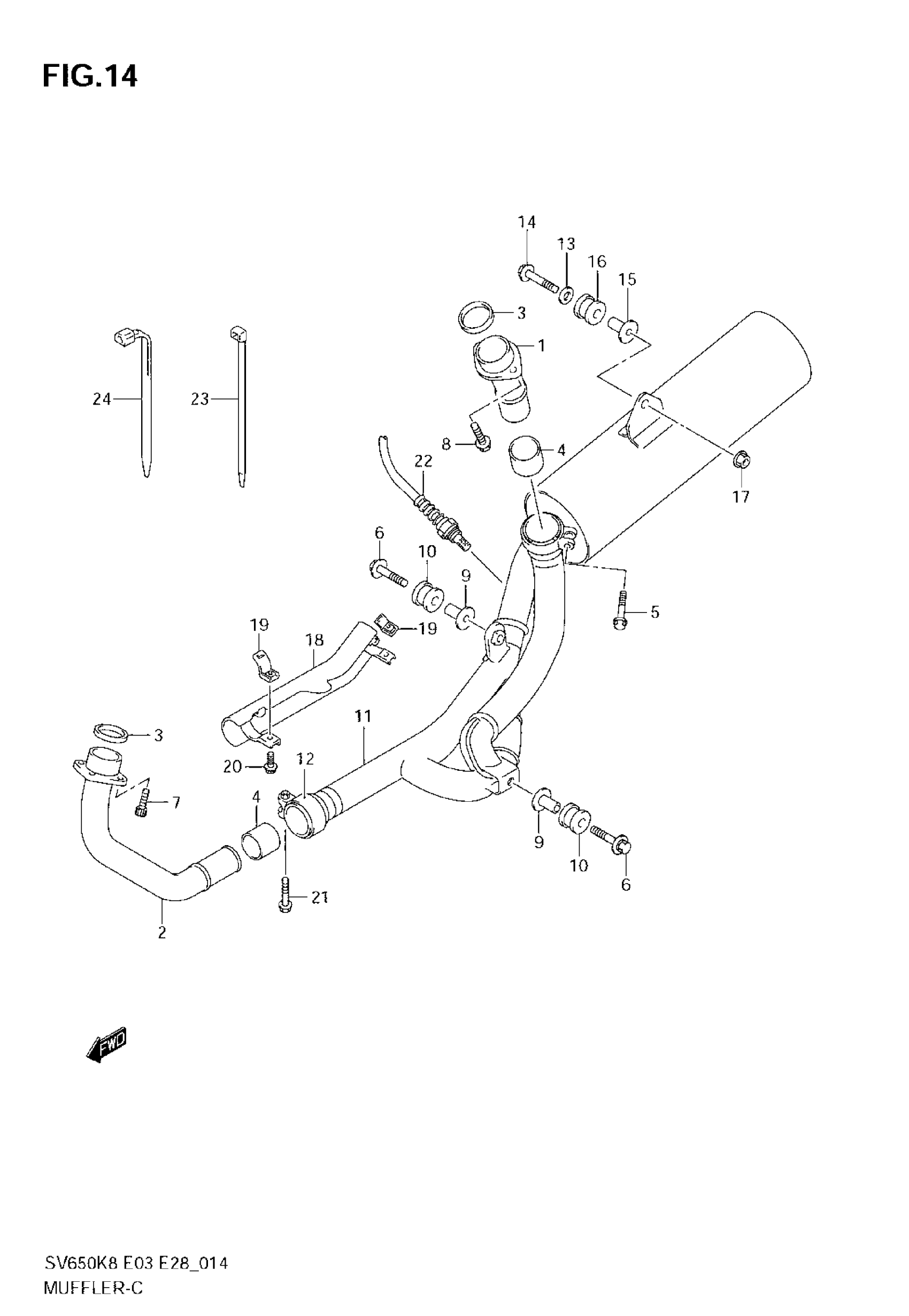

Suzuki SV650 (2008) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST REAR

14150-17G00

$128.72

2

PIPE, EXHAUST FRONT

14160-17G00

$245.72

3

.GASKET,EXHAUST PIPE

14181-22D01

$10.11

4

CONNECTOR, MUFFLER

14771-32E00

$21.84

5

BOLT

07120-0835B

$4.58

6

BOLT (8X45) This part replaces 09118-08152.

09118-08152-A05

$5.24

7

BOLT

09106-08165

$4.03

8

BOLT

07130-0825B

$3.37

9

SPACER (8.6X12X24.2)

09180-08152

$5.83

10

CUSHION

09320-12048

$5.11

11

MUFFLER | E3,E28

14305-17G70-H01

Unavailable

11

MUFFLER | E33

14305-17G60-H01

Unavailable

12

CLAMP

14459-19F10

$22.60

13

WASHER (8.5X28X1.5)

09160-08142

$2.76

14

BOLT

09103-08358

$3.42

15

SPACER (8.6X12X24.2)

09180-08152

$5.83

16

CUSHION

09320-12048

$5.11

17

NUT

08361-2508A

$1.97

18

COVER, EXHAUST JOINT

14770-17G00

Unavailable

19

CLAMP, EXHAUST COVER

14185-17G00

Unavailable

20

BOLT

09106-06084

Unavailable

21

BOLT

09103-08365

$3.91

22

SENSOR, OXYGEN | E33 This part replaces 18213-17G00.

18213-17G01

$388.62

23

CLAMP | E33

09407-10404

$2.90

24

CLAMP | E33

09407-14403

$2.26
