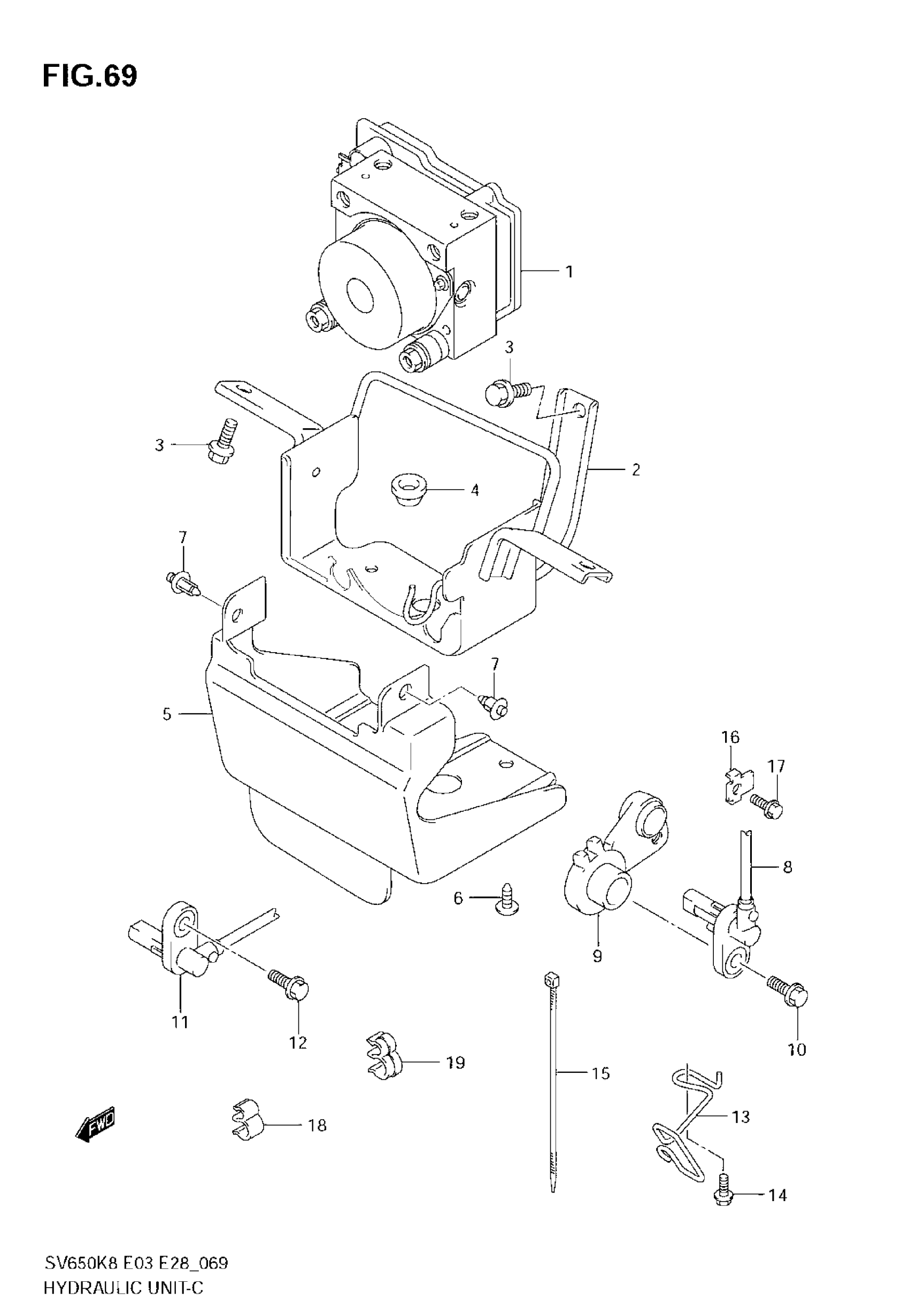

Suzuki SV650 (2008) HYDRAULIC UNIT(SV650AK8/SAK8) Diagram

#

Description
Price

1

UNIT ASSY, HYDRAULIC ABS

55610-17G00

Unavailable

2

HOLDER, HYDR UNIT ABS

55660-17G00

Unavailable

3

BOLT, HOLDER

01550-0616A

$1.97

4

RUBBER, UNIT MOUNTING

56121-58J00

Unavailable

5

COVER, HYDRAULIC UNIT

55667-17G10

Unavailable

6

BOLT

09111-06065

$3.05

7

CLIP

09409-07332

$2.50

8

SENSOR, FR WHEEL ABS

55710-17G00

Unavailable

9

BRACKET, SENSOR FR

55720-27G00

Unavailable

10

BOLT (8X16)

01550-0816A

$2.32

11

SENSOR, RR WHEEL ABS

65710-17G00

$274.80

12

BOLT (8X16)

01550-0816A

$2.32

13

GUIDE, SENSOR | SV650AK8

55741-17G00

Unavailable

14

BOLT | SV650AK8

01547-0612A

$2.03

15

CLAMP, SENSOR

09407-14407

$3.57

16

GUIDE, SENSOR LEAD

34938-14F00

$6.30

17

BOLT

01547-0612B

$1.49

18

CLAMP, SENSOR

09408-00241

Unavailable

19

CLAMP, SENSOR

09408-00242

Unavailable
