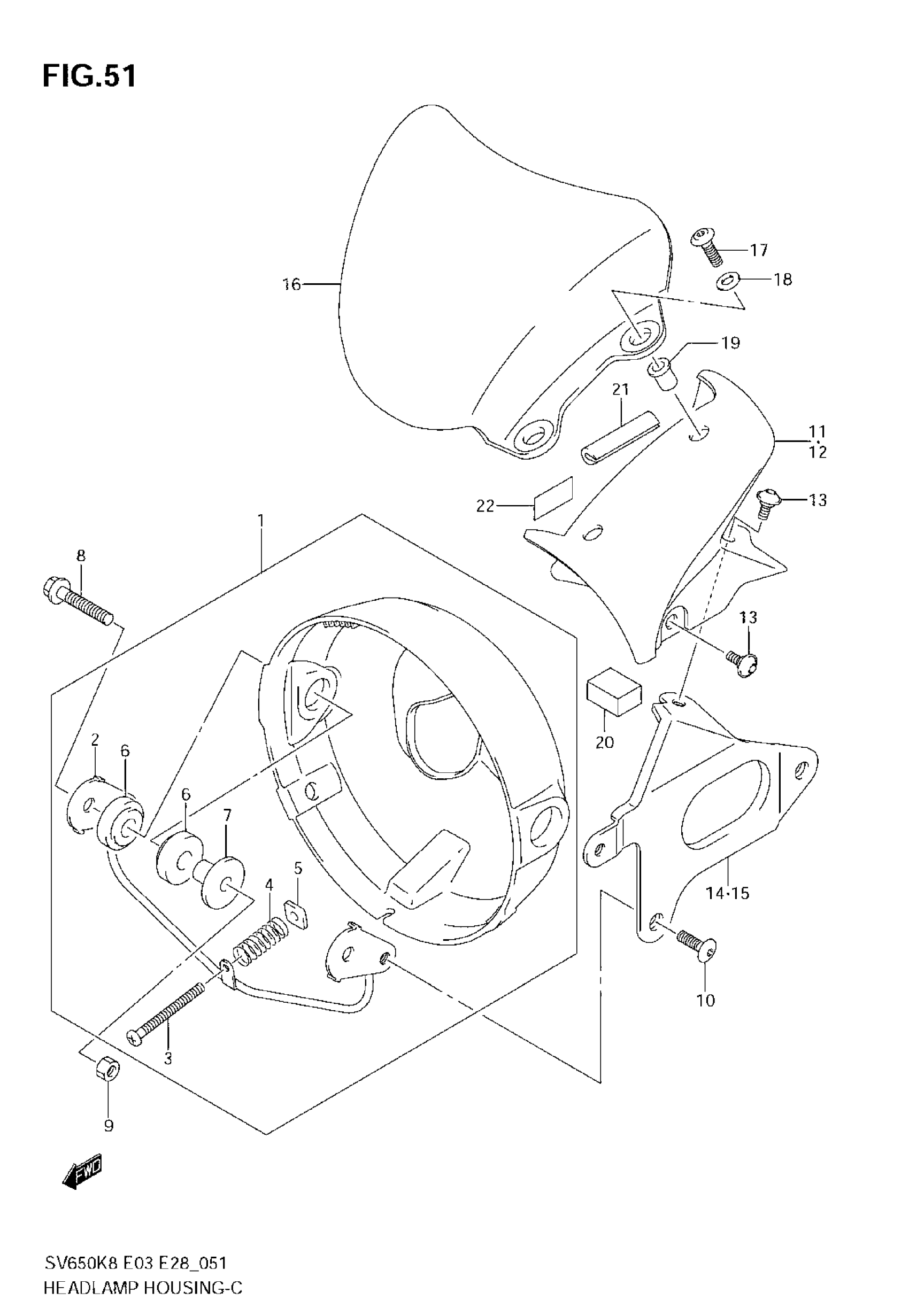

Suzuki SV650 (2008) HEADLAMP HOUSING (SV650/A) Diagram

#

Description
Price

1

HOUSING ASSY,HE | Includes Item(s) 2 - 7 This part replaces 51800-16G10.

51800-16G11

$191.63

2

PLATE

51850-16G10

Unavailable

3

SCREW, ADJUSTER

09125-05128

$3.05

4

SPRING, ADJUSTER

51837-25D00

$5.75

5

NUT, ADJUSTER

51825-25D00

$4.62

6

CUSHION This part replaces 09320-12065.

09320-12101

$2.80

7

SPACER

09180-08217

$3.17

8

BOLT

09103-08391

$2.53

9

NUT

08310-0008B

$2.95

10

SCREW, BRACE

09139-06030

$3.33

11

COVER, HEADLAMP RH (BLACK)

51814-16G00-YAY

Unavailable

11

COVER,HEADLAMP This part replaces 51814-16G00-YKZ.

51814-16G00-13L

$64.43

11

COVER,HEADLAMP This part replaces 51814-16G00-YLF.

51814-16G00-13L

$64.43

11

COVER, HEADLAMP RH (WHITE)

51814-16G00-YPA

Unavailable

12

COVER, HEADLAMP LH (BLACK)

51815-16G00-YAY

Unavailable

12

COVER, HEADLAMP LH (BLUE)

51815-16G00-YKZ

Unavailable

12

CVR,HDLMP HSNG, This part replaces 51815-16G00-YLF.

51815-16G00-13L

$32.80

12

COVER, HEADLAMP LH (WHITE)

51815-16G00-YPA

Unavailable

13

SCREW

09139-05064

$2.56

14

PLATE, COVER RH

51850-16GA0

$33.15

15

PLATE, COVER LH

51860-16GA0

$32.53

16

COVER, METER

51816-16G00

$161.50

17

SCREW, COVER

09139-05032

$2.00

18

WASHER

08322-0105B

$2.24

19

NUT

09159-05019

$6.44

20

CUSHION

92146-14G10

$6.40

21

MOLDING

94631-35F00

$8.35

22

TAPE

94632-22D00

Unavailable
