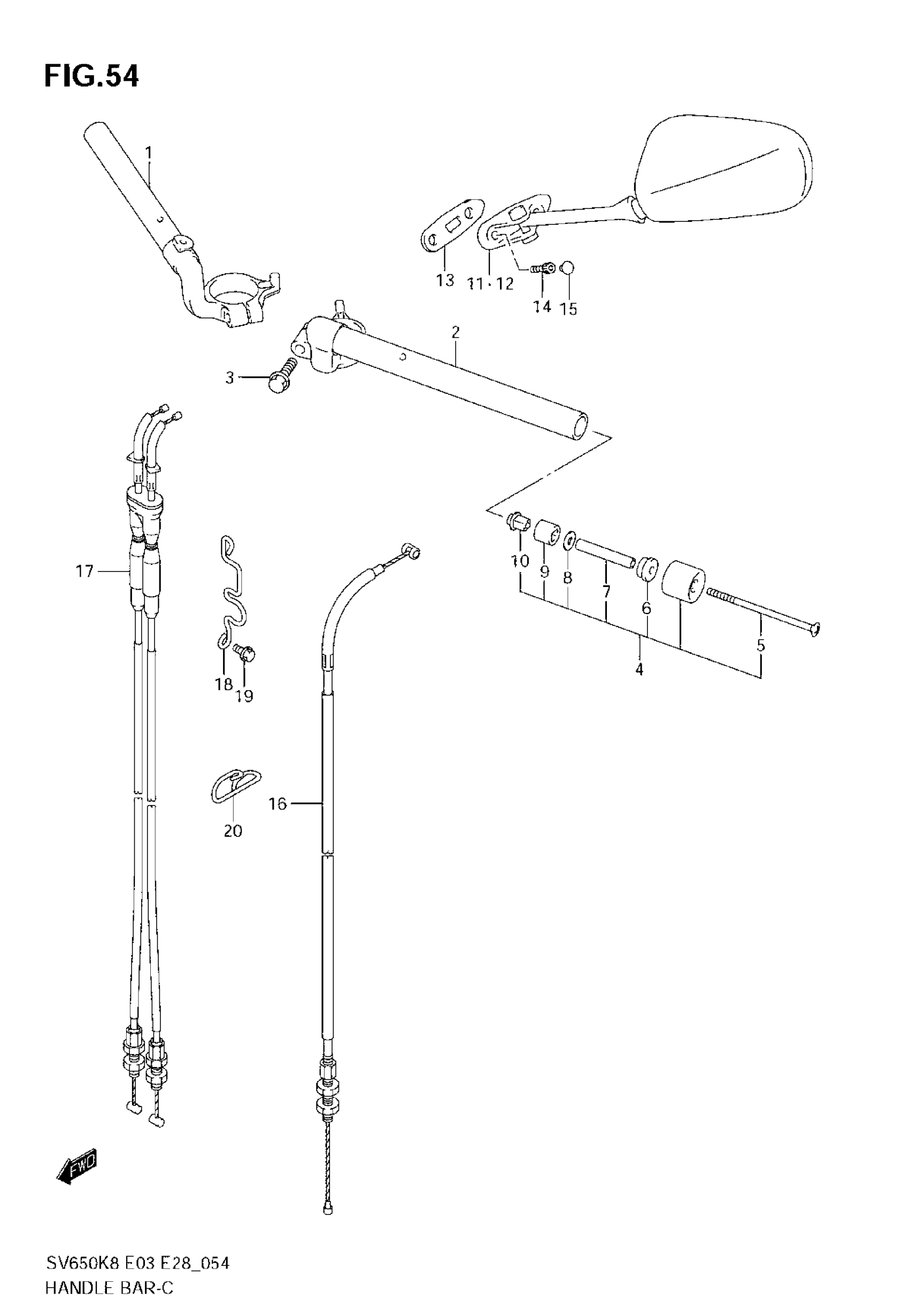

Suzuki SV650 (2008) HANDLEBAR (SV650S/SA) Diagram

HANDLEBAR, RH

56111-17G00

Unavailable

HANDLEBAR, LH

56151-17G00

$309.65

BOLT

56123-35F00

$6.17

BALANCER SET,HA | Includes Item(s) 5 - 10 This part replaces 56200-16831.

56200-16834

$44.73

SCREW

02122-0695B

$3.77

EXPANDER,HANDLE This part replaces 56272-23F00.

56272-23F20

$3.43

SPACER

56276-17D00

$5.07

.WASHER (6.5X16X1.6)

09160-06130

$1.91

.EXPANDER,HANDLE BALANCER This part replaces 56272-10G00.

56272-10G01

$4.72

NUT

56273-10G10

$8.65

MIRROR ASSY, REAR VIEW RH

56500-16G10

$189.69

MIRROR ASSY, REAR VIEW LH

56600-16G10

$117.03

CUSHION

94576-24F00

$6.52

BOLT

07130-0616B

$2.39

CAP

09250-05009

$2.19

CABLE ASSY, CLUTCH

58200-17G10

$28.81

CABLE ASSY,THRO This part replaces 58300-16G10.

58300-16G11

$44.65

GUIDE, CABLE LH

58621-16GC0

Unavailable

BOLT

01550-0612B

$2.39

GUIDE, THROTTLE CABLE

58621-16GB0

Unavailable
