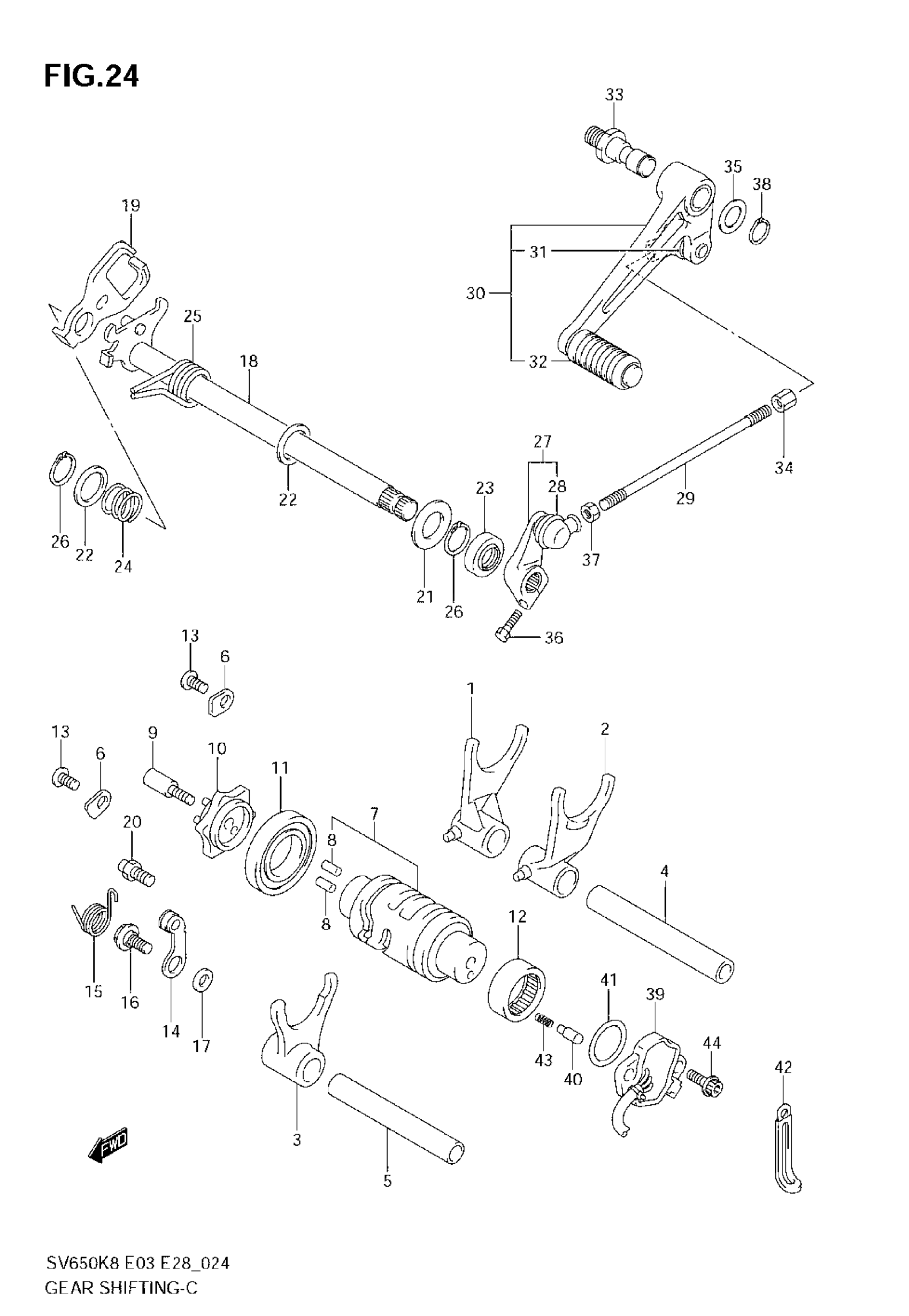

Suzuki SV650 (2008) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT NO.1

25211-42E10

$93.73

2

FORK, GEAR SHIFT NO.2

25221-42E10

$93.73

3

FORK, GEAR SHIFT NO.3

25231-42E10

$96.22

4

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$25.68

5

SHAFT,GEAR SHIFT FORK NO.1

25411-44B00

$31.70

6

RETAINER, SHIFT CAM BEARING

24741-21A00

$2.81

7

CAM,GEAR SHIFT | Includes Item(s) 8

25310-19F00

Unavailable

8

PIN (4X13.8)

04221-04089

$1.49

9

BOLT, GEAR SHIFT CAM This part replaces 25312-42F00.

25312-42F01

$7.95

10

PLATE, GEAR SHIFT CAM

25381-19F10

$61.23

11

BEARING (25X47X8)

09262-25006

$25.54

12

BEARING (25X32X12)

09263-25018

$21.39

13

SCREW

02112-0612A

$1.49

14

STOPPER, GEAR SHIFT CAM

25350-35F00

$34.15

15

SPRING,SHIFT

25355-35F01

$3.97

16

BOLT (6X14.3)

09111-06041

$2.61

17

WASHER

08211-06141

$1.59

18

SHAFT,GEAR SHIFT

25510-19F10

$116.65

19

PLATE, GEAR SHIFT CAM DRIVE

25512-06G00

$41.27

20

STOPPER, RETURN SPRING

25671-01011

$4.48

21

WASHER (14X29X0.8)

09160-14016

$1.93

22

SHIM

09181-14167

$2.53

23

OIL SEAL (14X22X6)

09283-14006

$6.70

24

SPRING

09440-17009

$1.71

25

SPRING

09444-20001

$5.24

26

CIRCLIP, SHIFT SHAFT This part replaces 08331-31146.

08331-3114A

$1.91

27

ARM,GEAR SHIFT | Includes Item(s) 28 This part replaces 25520-17G10.

25520-17G11

$61.93

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

29

ROD, GEAR SHIFT

25525-21E50

$10.23

30

LEVER ASSY,GEAR | Includes Item(s) 31 - 32 This part replaces 25600-17G00.

25600-17G02

$109.10

31

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

32

RUBBER, GEAR SHIFT PEDAL

25652-20C00

$5.44

33

SHAFT, GEAR SHIFT LEVER

25617-03F10

$12.33

34

NUT

09140-06025

$2.05

35

WASHER (12.5X20X1)

09160-12011

$1.54

36

BOLT

01500-0620B

$2.15

37

.NUT

08310-00067

$2.13

38

CIRCLIP

08331-3112A

$1.78

39

BASE ASSY, GEAR SHIFT TERMINAL

37730-20F00

Unavailable

40

CONTACT

09209-05011

$2.20

41

O RING (OD:2.4,ID:25.7)

09280-26007

$6.52

42

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.65

43

SPRING

09440-04010

$1.54

44

BOLT

07120-0516A

$2.28
