Description

Price

1

CALIPER ASSY, FRONT RH This part replaces 59100-33D90-999.

59100-33D81-999

$583.83

1

CALIPER ASSY, FRONT | Includes Item(s) 2 - 12 This part replaces 59300-33D90-999.

59300-33D81-999

$570.20

2

PISTON SET This part replaces 59300-33831.

59301-20820

$37.59

3

SEAL SET, PISTON

59300-33841

$15.45

4

.SPRING, PAD RH

59115-33D00

$14.90

4

.SPRING, PAD LH

59315-33D00

$14.90

5

BOOT

59112-44B00

$8.91

6

.INSULATOR, AXLE

59313-36500

$5.99

7

.CARRIER, CALIPER RH

59150-33D01

$109.85

7

.CARRIER, CALIPER LH

59350-33D01

$109.85

8

.GUIDE, PAD

59116-33D00

$7.97

9

BLEEDER

59121-18410

$8.73

10

CAP

55156-66310

$5.17

11

.PIN, PAD

59141-44B01

$9.09

12

.CLIP, PAD PIN

69142-45000

$4.34

13

PAD & SHIM SET, R

59102-33860

$66.17

13

PAD & SHIM SET, L | Includes Item(s) 14

59302-33830

$63.33

14

.SHIM, PAD

59171-33D00

$14.85

15

BOLT (10X20)

01550-1025A

$3.05

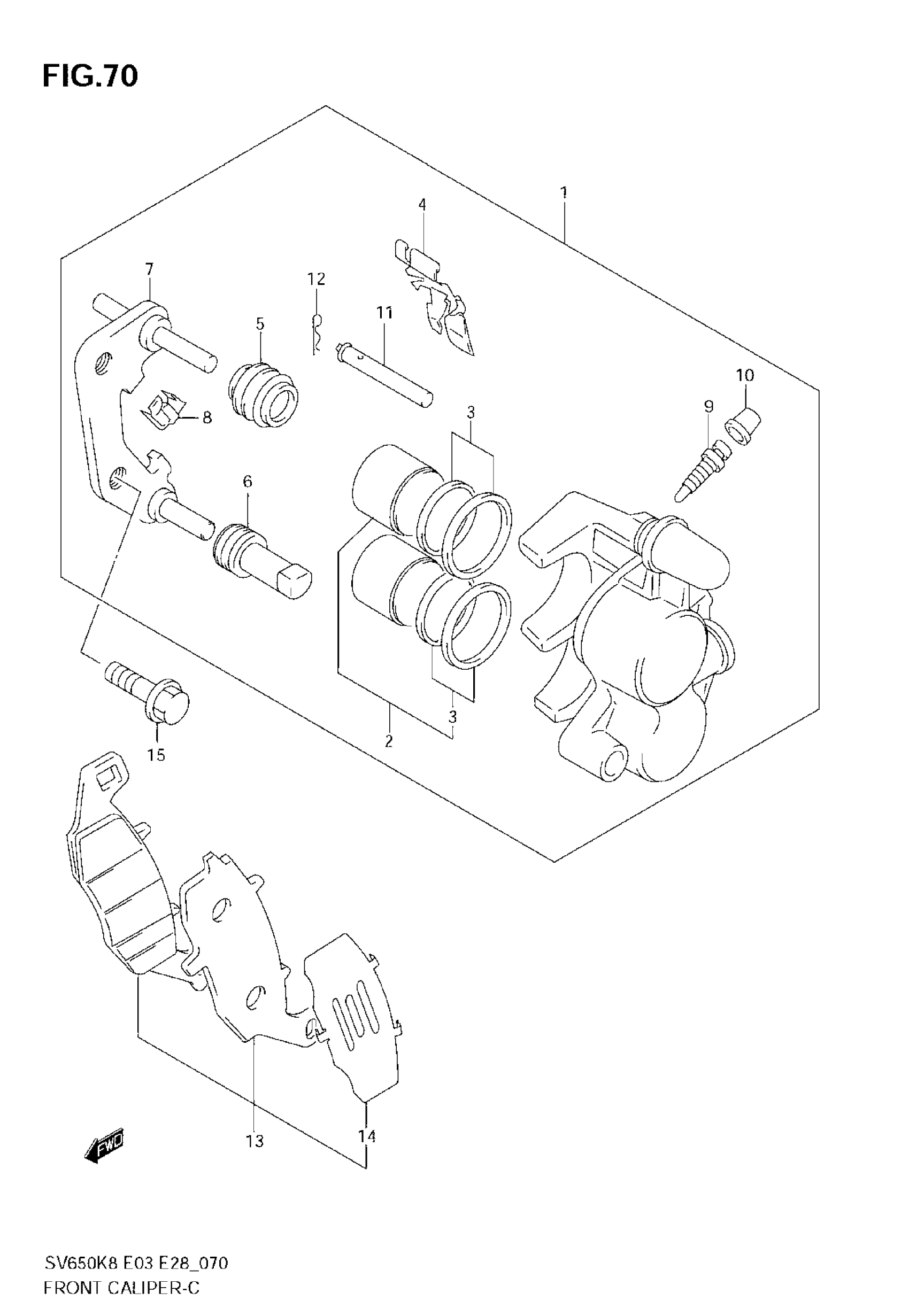

Suzuki SV650 (2008) FRONT CALIPER (SV650K8/SK8) Diagram
