Description

Price

1

CALIPER ASSY, FRONT RH

59100-33DF0-999

Unavailable

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 12

59300-33DF0-999

Unavailable

2

PISTON SET

59300-01820

$101.83

3

..SEAL SET, PISTON

59100-04851

$32.70

4

.SPRING, PAD RH

59115-33D00

$19.78

4

.SPRING, PAD LH

59315-33D00

$14.03

5

BOOT

59112-44B00

$8.15

6

.INSULATOR, AXLE

59313-36500

$5.48

7

.CARRIER, CALIPER RH

59150-33D01

$123.97

7

.CARRIER, CALIPER LH

59350-33D01

$123.97

8

.GUIDE, PAD

59116-33D00

$7.51

9

BLEEDER

59121-18410

$7.99

10

CAP

55156-66310

$4.73

11

.PIN, PAD

59141-44B01

$8.56

12

.CLIP, PAD PIN

69142-45000

$3.97

13

PAD & SHIM SET, R

59102-33860

$71.56

13

PAD & SHIM SET, L | Includes Item(s) 14

59302-33830

$68.50

14

.SHIM, PAD

59171-33D00

$16.77

15

BOLT (10X20)

01550-1025A

$2.80

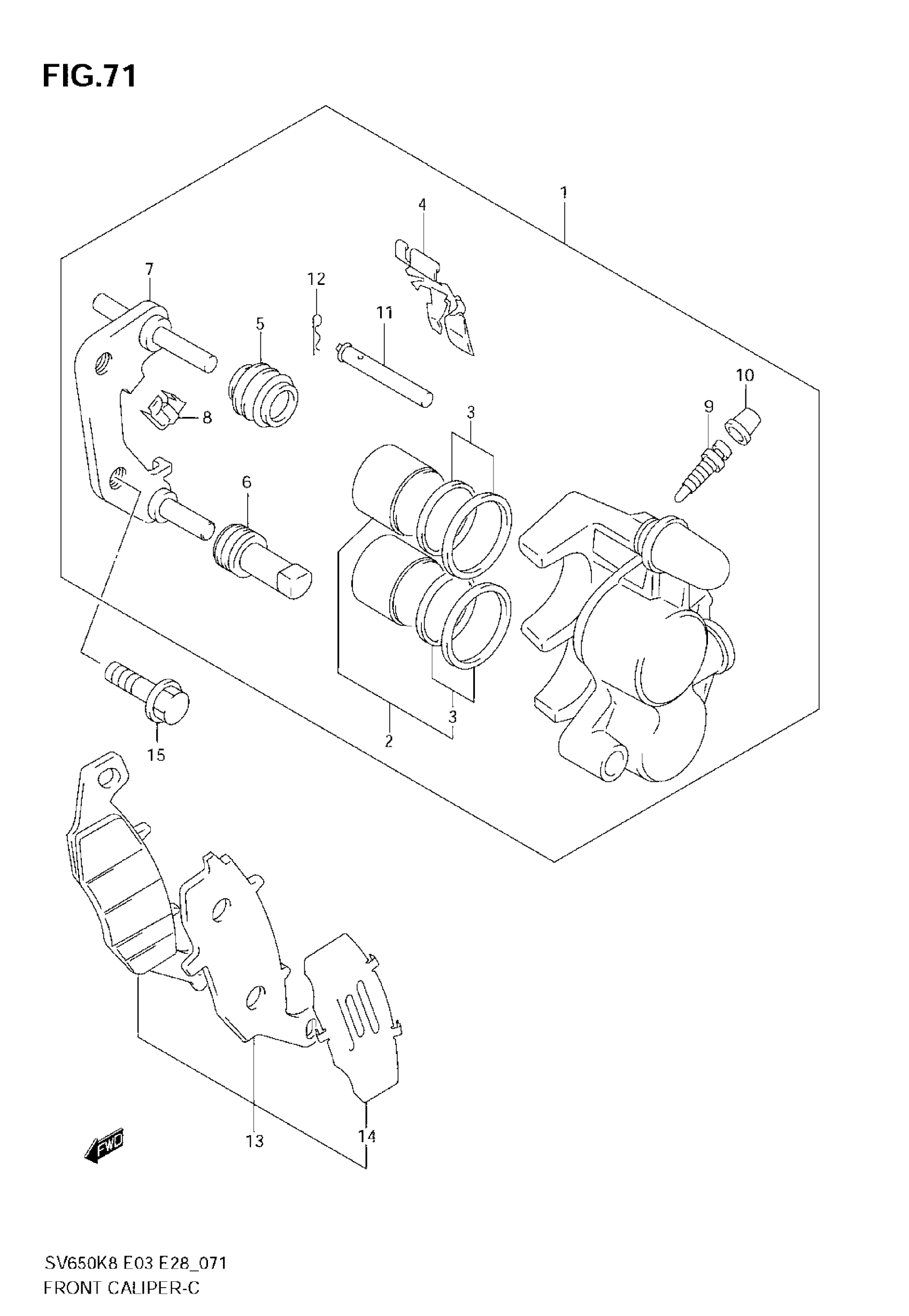

Suzuki SV650 (2008) FRONT CALIPER (SV650AK8/SAK8) Diagram
