Description

Price

1

FRAME (BLACK)

41100-17G20-YAP

Unavailable

2

RAIL, SEAT (BLACK)

41200-16G40-YAP

Unavailable

3

BOLT,SEAT RAIL This part replaces 41233-18G00.

41233-18G20

$8.65

4

SPACER, CRANKCASE UPPER

41941-19F01

$40.33

5

SPACER, HEAD FRONT

41942-02F00

$28.70

6

BOLT, SPACER

09106-08170

$3.49

7

BOLT, CRANK CASE ADJUST LWR This part replaces 41921-16G00.

41921-16G01

$23.47

8

BOLT, REAR HEAD ADJUST LH

41921-17G00

$35.10

9

BOLT, CRANK CASE ADJUST CTR

41923-16G00

$31.28

10

NUT, REAR HEAD ADJUST

41922-33E00

$22.52

11

NUT,CRANK CASE ADJUST CTR This part replaces 41922-19F00.

41922-19F20

$18.90

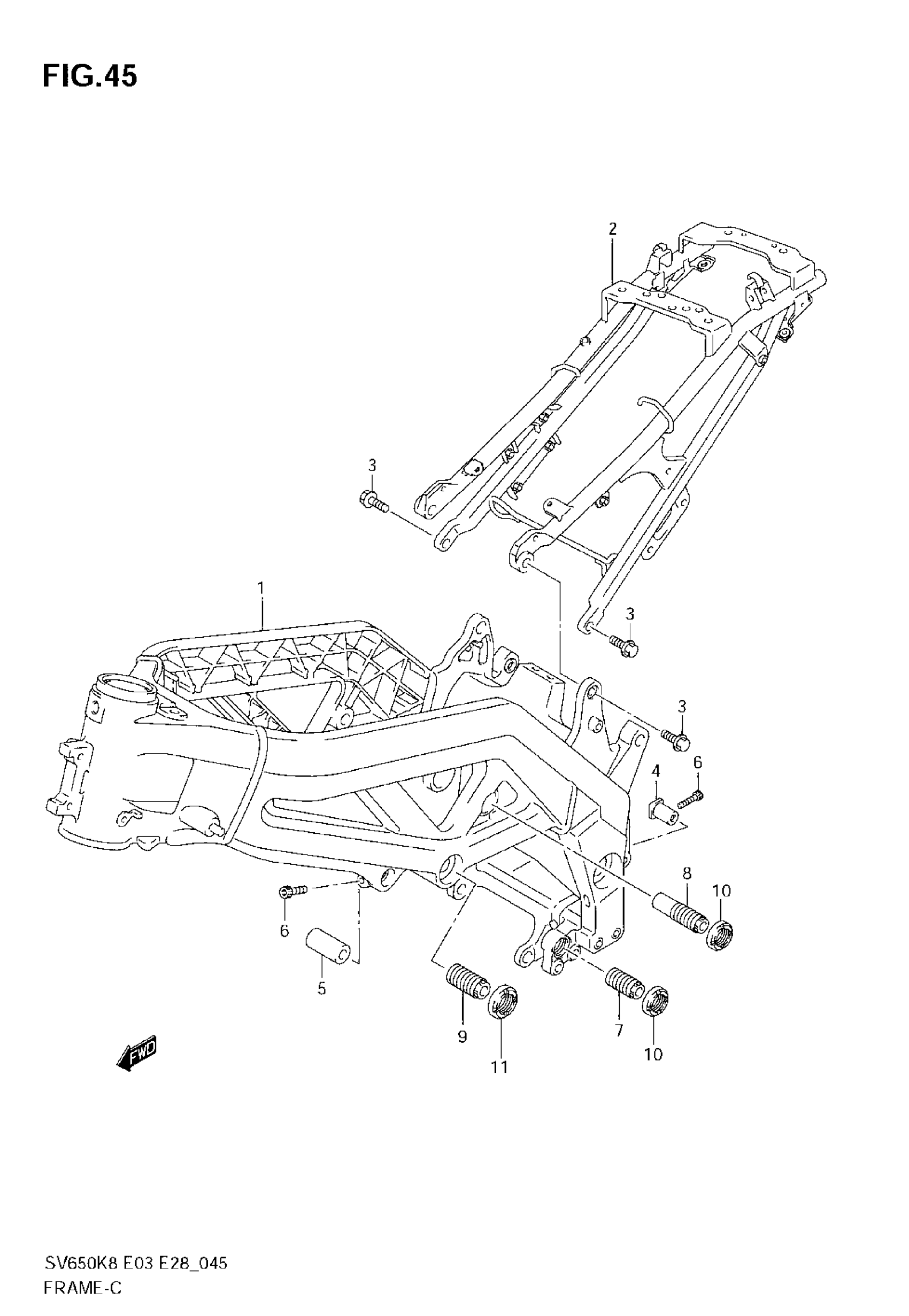

Suzuki SV650 (2008) FRAME Diagram
