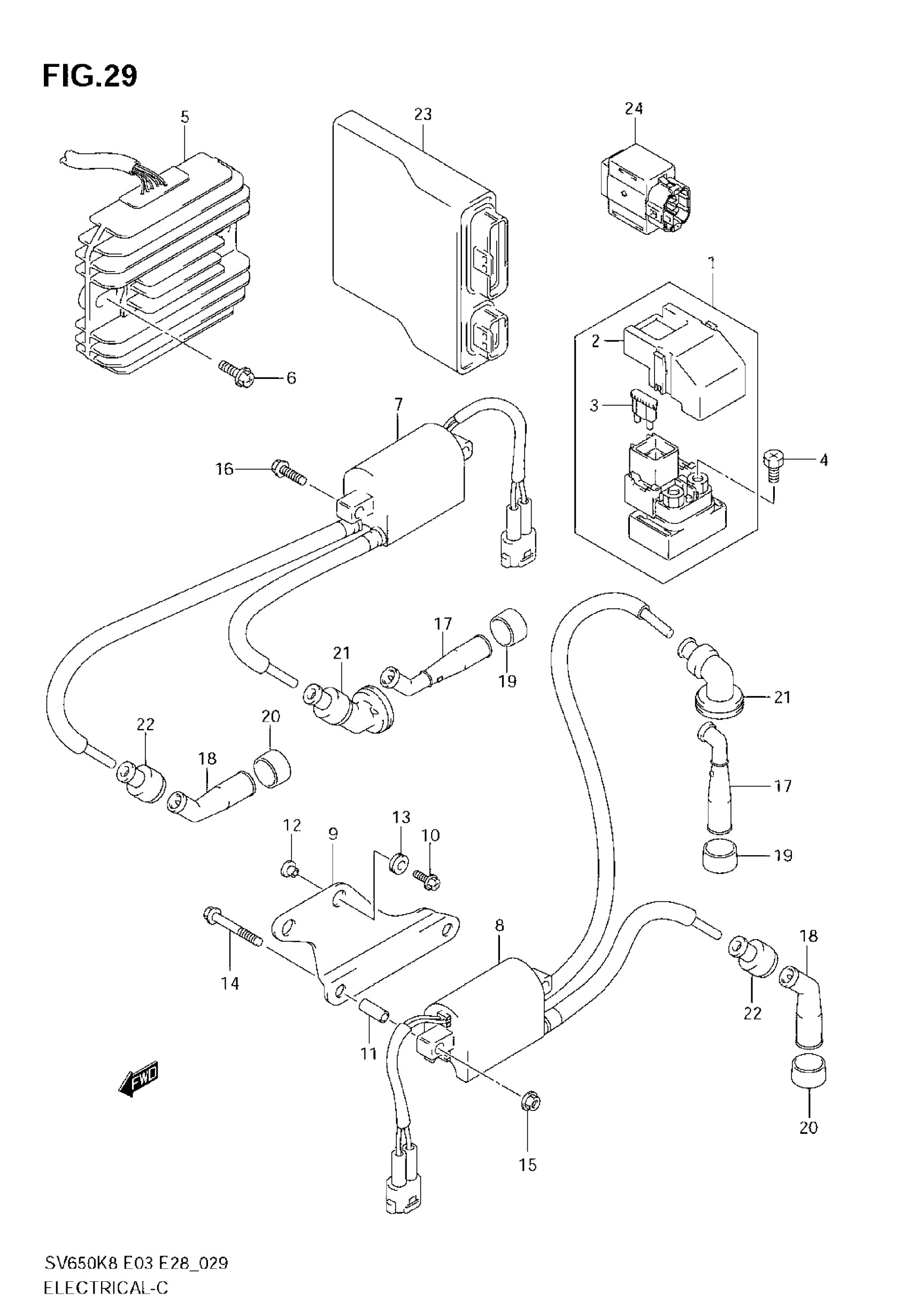

Suzuki SV650 (2008) ELECTRICAL Diagram

RELAY ASSY,STARTING MOTOR | Includes Item(s) 2 - 3 This part replaces 31800-06G00.

31800-06G02

$67.32

COVER, RELAY ASSY

31861-47E00

$16.15

FUSE (30A)

09481-30101

$2.26

SCREW (6X8)

09128-06013

$1.49

RECTIFIER ASSY This part replaces 32800-16G00.

32800-16G02

$243.97

BOLT

02162-0620B

$2.28

COIL ASSY, IGNITION (L:380) | FOR FRONT

33410-17GA0

Unavailable

COIL ASSY,IGUNI | FoR REAR This part replaces 33420-17GA0.

33420-17GA2

$138.68

BRACKET, IGN COIL REAR

33424-17GA0

$11.70

BOLT, BRKT REAR (6X16)

09116-06130

$2.28

SPACER, IGN COIL REAR | 6.4X10X18

09180-06195

$3.68

SPACER, IGN COIL BRKT | 6.2X8.4X6.9

09180-06325

$3.79

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.45

BOLT, IGN REAR

01547-0640A

$2.32

NUT, IGN REAR

08316-1006A

$2.19

BOLT, IGN FRONT

01547-0625A

$2.01

CAP ASSY,SPARK PLUG

33510-17G00

$33.46

CAP ASSY, SPARK (SIDE)

33510-20E00

$34.60

SEAL, SPARK PLUG CAP (CENTER)

33541-23E01

$6.34

SEAL, SPARK PLUG CAP (SIDE)

33541-47D00

$7.83

SEAL,HIGH TENSION CORD CTR

33542-17G01

$8.12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

CONTROL UNIT,FI | E3/E28 This part replaces 32920-17GC0.

32920-17GC1

Unavailable

CONTROL UNIT, FI | E33

32920-17GD0

Unavailable

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92
