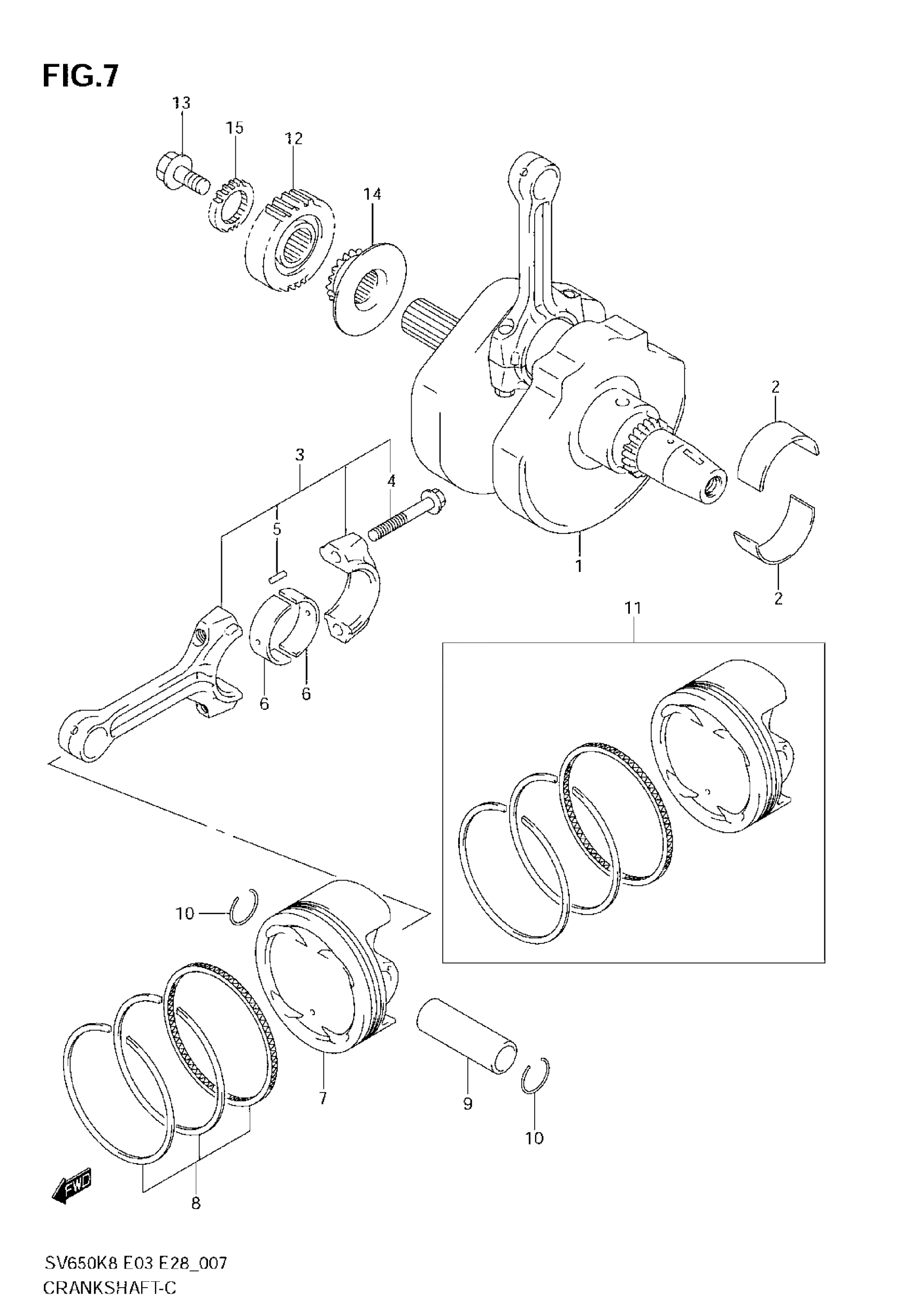

Find the part on the Crankshaft diagram for your 2008 Suzuki SV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki SV650 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT SET

12220-17G00

1
Out of stock

2

BEARING, CRANKSHAFT (GREEN)

12229-27G00-0A0

4
Out of stock

2

BEARING, CRANKSHAFT (BLACK)

12229-27G00-0B0

4
Out of stock

2

BEARING, CRANKSHAFT (BROWN)

12229-27G00-0C0

4
Out of stock

3

CONNECTING ROD ASSY | Includes Item(s) 4 - 5

12160-17G10

2
Out of stock

4

.BOLT,CONNECTING ROD

12163-24F10

4
Out of stock

5

PIN, CONNECTING ROD

12165-27A50

4
Out of stock

6

BEARING, CRANK PIN (GREEN)

12164-46E01-0A0

4
Out of stock

6

BEARING, CRANK PIN (BLACK)

12164-46E01-0B0

4
Out of stock

6

BEARING, CRANK PIN (BROWN)

12164-46E01-0C0

4
Out of stock

6

BEARING, CRANK PIN (YELLOW)

12164-46E01-0D0

4
Out of stock

7

PISTON

12111-20F10-0F0

2
Out of stock

8

RING SET, PISTON

12140-17G20

2
Out of stock

9

PIN,PISTON

12151-05A00

2
Out of stock

10

CIRCLIP

09381-20004

4
Out of stock

11

PISTON SET (OS:0.5) | OPT

12100-17G20-050

2
Out of stock

12

GEAR, PRIMARY DRIVE

21111-20F10

1
Out of stock

13

BOLT, PRIMARY DRIVE GEAR

09103-10338

1
Out of stock

14

SPROCKET,CAM CHAIN DRIVE (NT:

12731-19F00

1
Out of stock

15

GEAR,WATER PUMP DRIVE (NT:17)

17451-17G00

1
Out of stock
