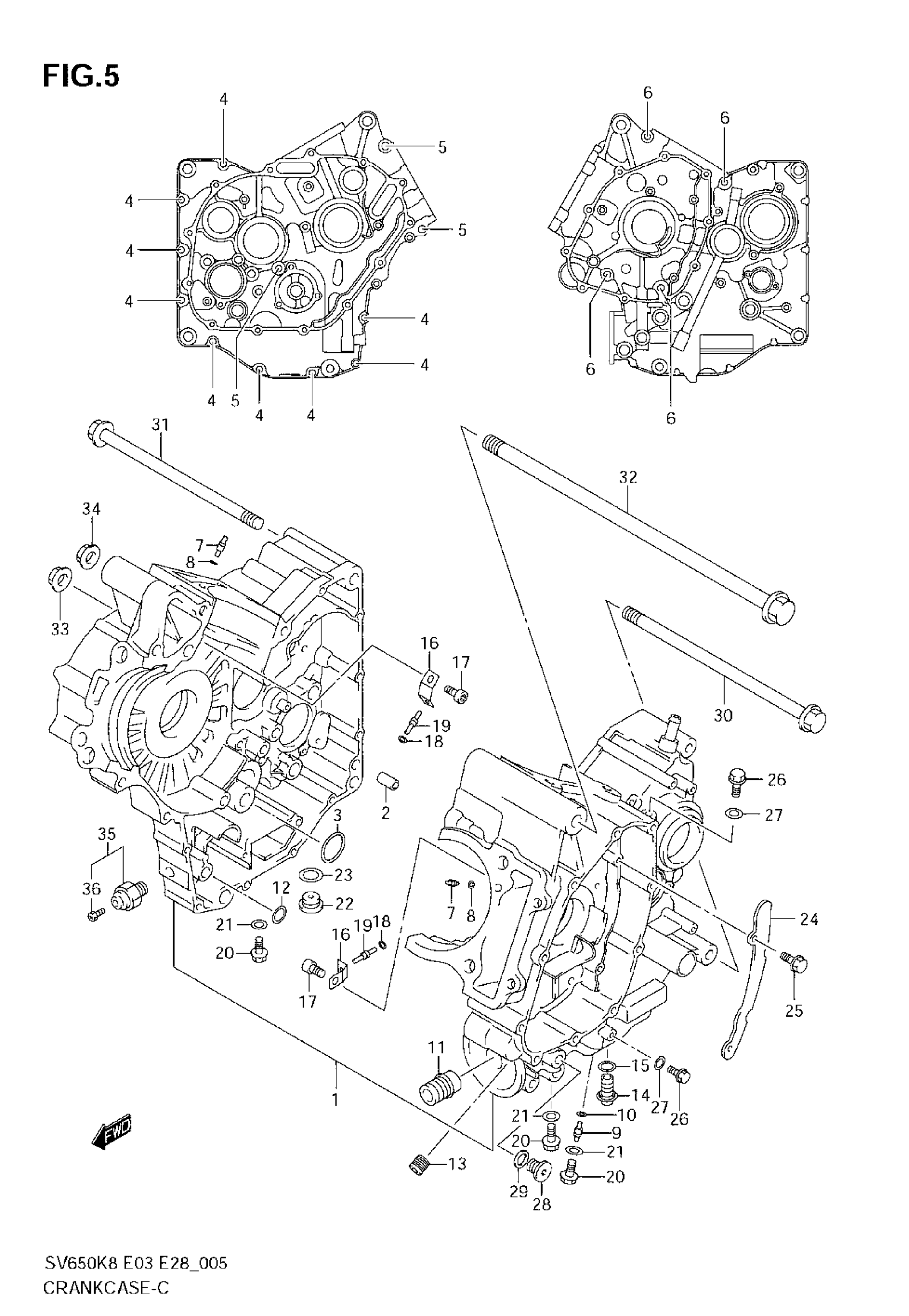

Suzuki SV650 (2008) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 12 This part replaces 11301-20882.

11301-20883

Unavailable

2

PIN (11X20)

09206-11007

$2.63

3

O-RING (D:2.4,ID:15.8)

09280-15007

$1.71

4

BOLT

01547-0650A

$2.51

5

BOLT

07120-0855A

$4.70

6

BOLT

07120-0880A

$5.17

7

JET, OIL GALLERY CYLINDER

09493-28010

$18.00

8

O RING (D:1.2,ID:4.0)

09280-04004

$1.76

9

JET, OIL GALLERY MISSION

09493-28010

$18.00

10

O RING (D:1.2,ID:4.0)

09280-04004

$1.76

11

UNION,OIL STAND

16591-06B01

$6.45

12

O RING (D:1.9,ID:12.6)

09280-12009

$2.87

13

JET, OIL GALLERY

11329-17G00

Unavailable

14

PLUG

09247-12011

$4.19

15

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

16

PLATE,PISTON COOLING JET

16438-19F00

Unavailable

17

BOLT (6X12)

09106-06075

$2.50

18

O RING (D:1.2,ID:4.0)

09280-04004

$1.76

19

JET (13)

09493-26007

Unavailable

20

BOLT (8X12)

01550-0812A

$2.31

21

GASKET (8.2X14X1)

09168-08016

$1.64

22

PLUG

09248-16012

$4.19

23

GASKET (16X22X2)

09168-16002

$1.89

24

PLATE,OIL SEPARATOR

11323-19F00

Unavailable

25

BOLT

01547-0612A

$2.01

26

BOLT

01550-0610A

$1.97

27

GASKET (5.8X13X1.2)

09168-06023

$2.01

28

PLUG

09247-12006

$2.80

29

GASKET

09168-12017

$1.97

30

BOLT (10X255)

09103-10137

$15.42

31

BOLT (10X225)

09103-10205

$21.22

32

BOLT (12X310)

09103-12054

$19.97

33

NUT

09159-10115

$3.21

34

NUT

09159-12054

$9.50

35

SWITCH ASSY,OIL PRESSURE | Includes Item(s) 36 This part replaces 37820-33D10.

37820-33D11

$27.58

36

BOLT

37822-33D00

$4.92
