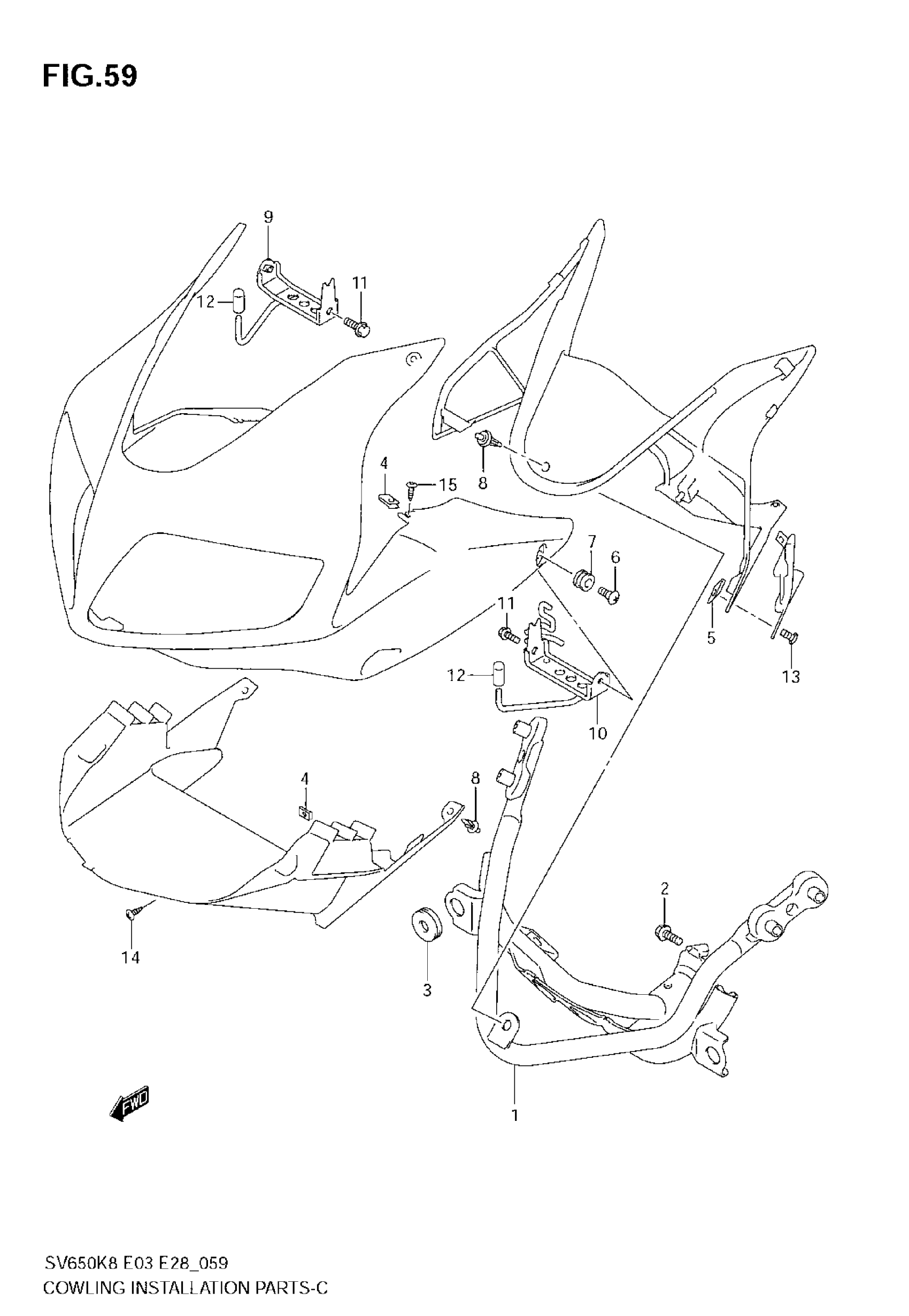

Suzuki SV650 (2008) COWLING INSTALLATION PARTS (SV650S/SA) Diagram

#

Description
Price

1

BRACE, COWLING

94510-16G01

$419.05

2

BOLT

01550-0820B

$2.83

3

CUSHION

09320-08028

$3.04

4

NUT COWL

94484-24F00

$4.03

5

NUT

09148-05038

$1.97

6

SCREW, COWL SIDE

09139-06126

$4.04

7

CUSHION

09320-09016

$1.97

8

CLIP (BLACK)

09409-08308-5ES

$1.97

9

BRACKET, SIDE RH

94530-16G00

$26.38

10

BRACKET, SIDE LH

94540-16G10

$35.44

11

BOLT, BRACKET

01550-0612B

$2.39

12

CUSHION

09251-04003

$3.30

13

SCREW, LID

09132-05053

$2.28

14

SCREW, INNER COVER

03241-0512B

$1.60

15

SCREW, METER PANEL

09139-05064

$2.57
