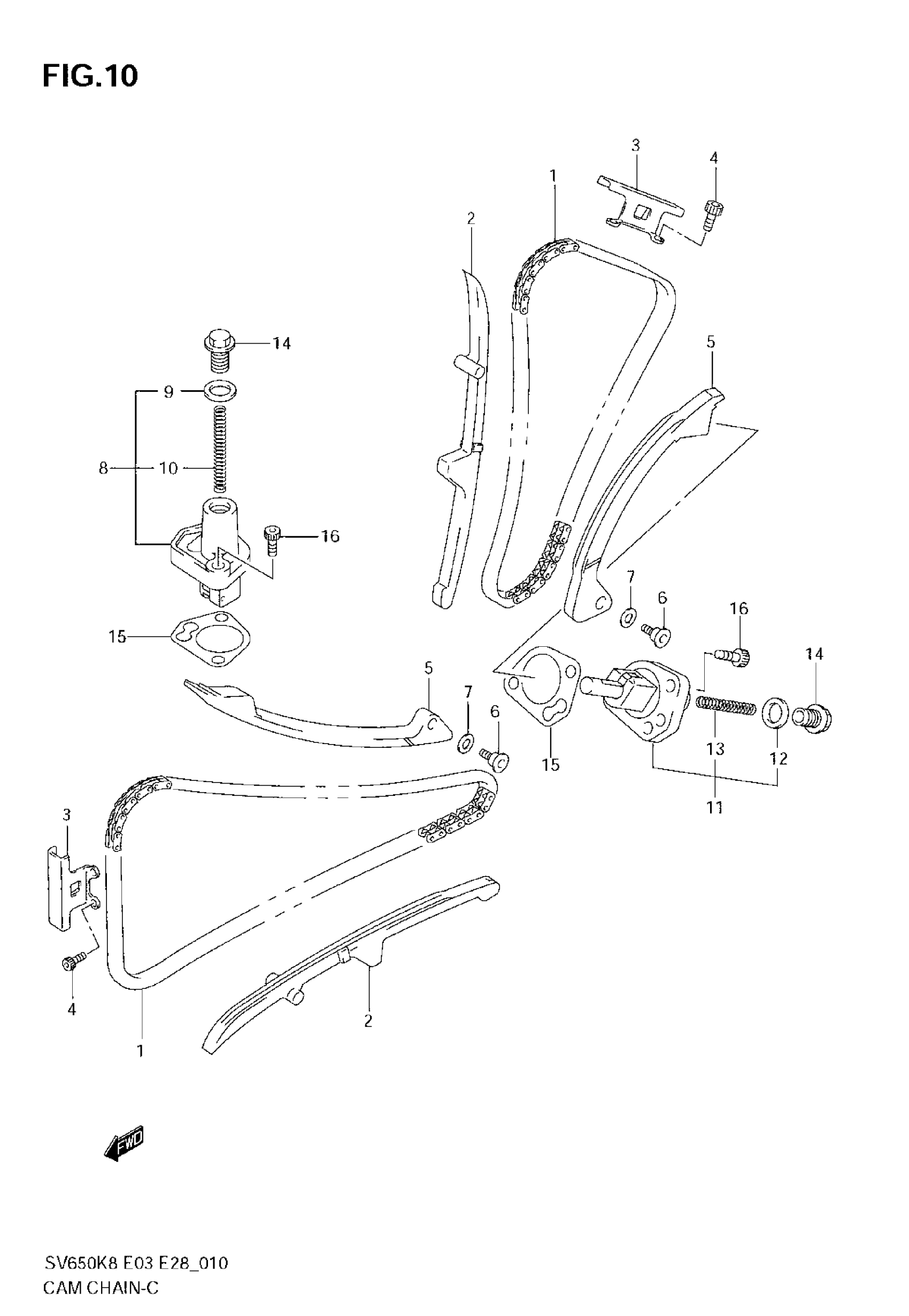

Suzuki SV650 (2008) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAMSHAFT DRIVE This part replaces 12760-19F00.

12760-19F01

$197.58

2

GUIDE,CAM CHAIN This part replaces 12771-19F00.

12771-19F01

$50.08

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-19F00.

12782-19F01

$44.38

4

.BOLT

07130-0612B

$3.05

5

TENSIONER,CAM CHAIN This part replaces 12811-17G00.

12811-17G01

$73.27

6

BOLT,CAM CHAIN TENSIONER

12812-35C00

$8.73

7

WASHER

08211-06181

$1.80

8

ADJUSTER ASSY,TENSIONER FR | Includes Item(s) 9 - 10

12830-27G00

$117.30

9

GASKET, TENSIONER ADJUSTER

12837-24F10

$4.78

10

SPRING

12831-39F00

$5.77

11

ADJUSTER ASSY,TENSIONER RR | Includes Item(s) 12 - 13

12830-27G10

$119.50

12

GASKET, TENSIONER ADJUSTER

12837-24F10

$4.78

13

SPRING

12831-39F00

$5.77

14

PLUG, TENSIONER ADJUSTER

12833-17G00

$7.87

15

GASKET, TENSIONER ADJUSTER

12837-27G00

$4.72

16

BOLT

07130-0625B

$3.04
