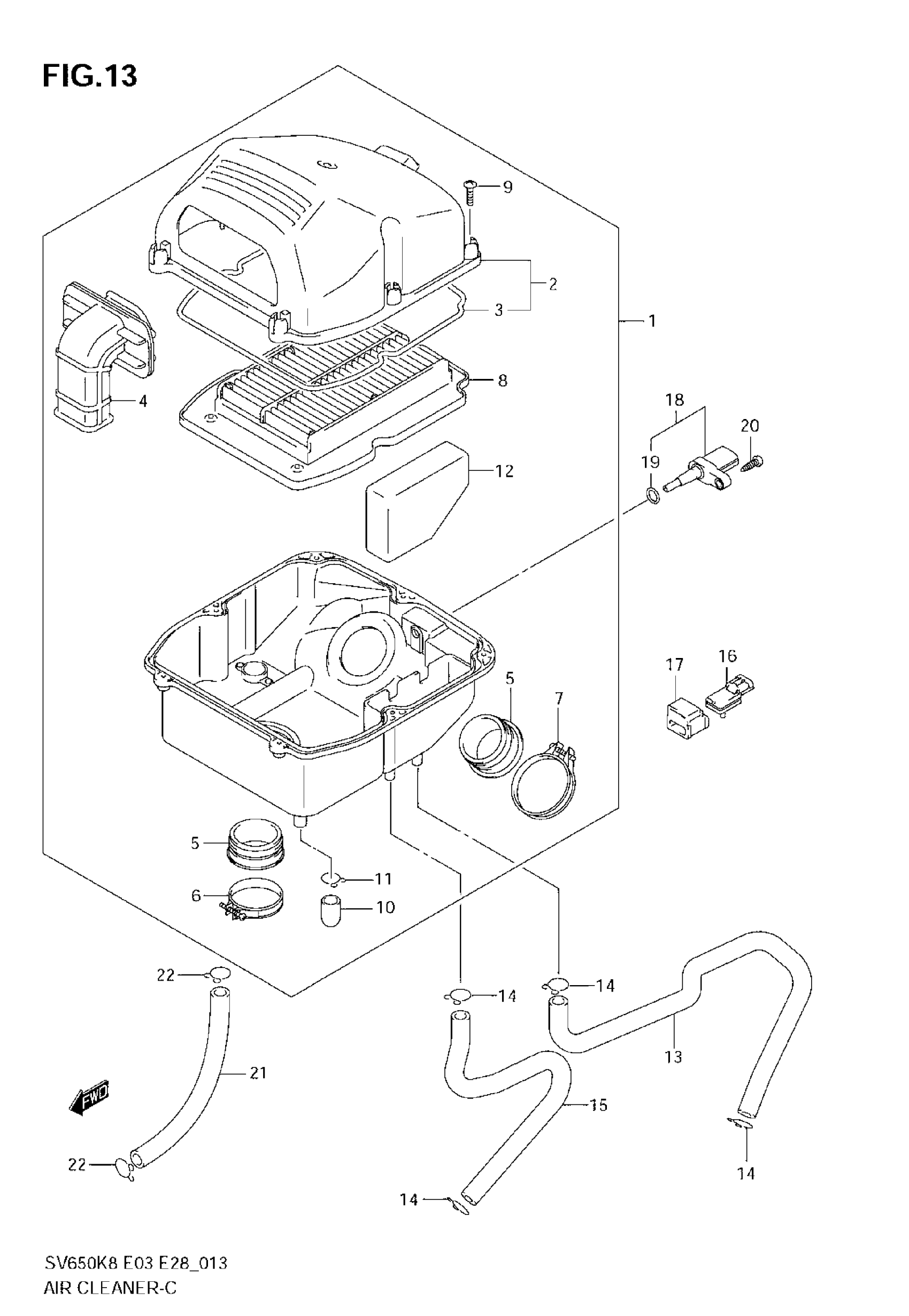

Suzuki SV650 (2008) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 12

13700-17G10

Unavailable

2

CAP,AIR CLEANER This part replaces 13740-16G00.

13740-16G01

$43.12

3

GASKET

13746-16G00

$8.13

4

TUBE,INLET This part replaces 13891-17G00.

13891-17G01

$49.22

5

TUBE,OUTLET This part replaces 13881-17G00.

13881-17G01

$10.66

6

CLAMP, OUTLET TUBE FRONT

13826-17G00

$5.64

7

CLAMP, OUTLET TUBE REAR

13826-17G00

$5.64

8

FILTER, AIR CLEANER

13780-16G00

$33.23

9

SCREW

03541-0520B

$2.63

10

.PLUG

13859-41B10

$7.38

11

CLIP

09401-14301

$2.35

12

FILTER, BREATHER

13788-17G00

$9.69

13

TUBE, BREATHER CRANKCASE

13851-17G00

$23.07

14

CLIP

09401-15101

$2.26

15

TUBE, BREATHER CYLINDER

13851-17G10

$18.58

16

SENSOR, BOOST

18591-41F00

Unavailable

17

HOLDER

18595-41F00

Unavailable

18

SENSOR AIR TEMP | Includes Item(s) 19

13650-41F10

$63.25

19

O-RING

13655-41F10

Unavailable

20

SCREW

03511-0516A

$1.86

21

HOSE, ISC VALVE

13865-17G00

Unavailable

22

CLIP

09401-15101

$2.26
