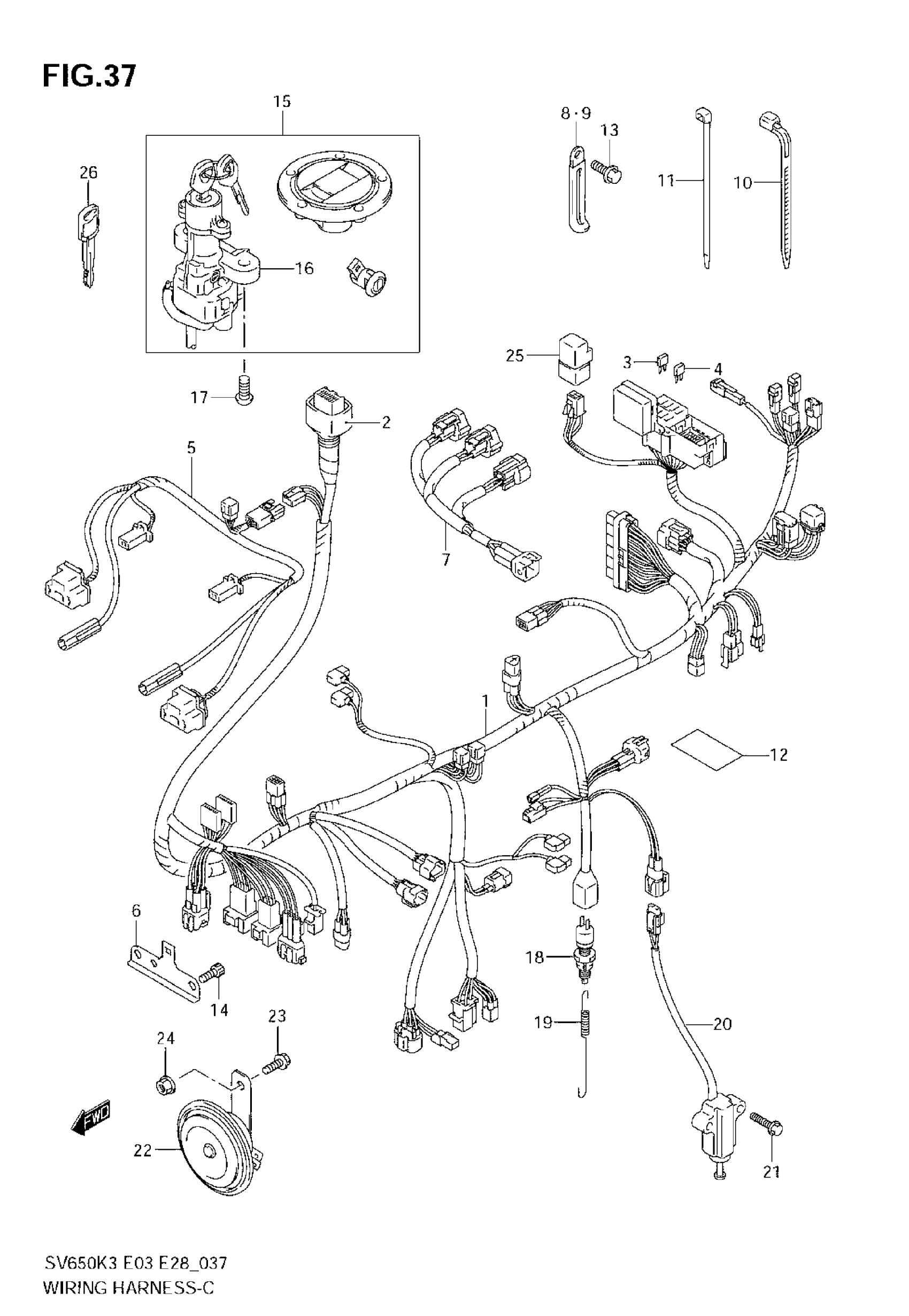

Suzuki SV650 (2007) WIRING HARNESS (SV650SK3/SK4) Diagram

#

Description
Price

1

HARNESS,WIRING | MODEL K3 This part replaces 36610-17G30.

36610-17G10

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K4; Includes Item(s) 2 - 4 This part replaces 36610-17GD0.

36610-17GC0

Unavailable

2

CAP

36618-33E00

$9.90

3

FUSE (10A)

09481-10501

$2.07

4

FUSE (15A)

09481-15501

$2.07

5

HARNESS,WIRING This part replaces 36620-16G10.

36620-16G11

$179.25

6

HOLDER, COUPLER

36687-17G00

Unavailable

7

WIRE, INJECTOR LEAD

36859-16G00

Unavailable

8

CLAMP (L:45)

09404-06429

$1.82

8

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

9

CLAMP This part replaces 09404-08207.

09404-08212

$1.63

10

CLAMP (L:125)

09407-14403

$2.24

10

CLAMP (L:165)

09407-18402

$2.21

11

CLAMP (L:145)

09407-14407

$2.80

12

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.42

13

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

14

BOLT, NO.3 This part replaces 07130-06103.

07130-0610B

$1.23

15

LOCK SET This part replaces 37000-16840.

37000-16844

$425.42

15

LOCK SET | E33; Includes Item(s) 16 This part replaces 37000-16850.

37000-16852

$429.22

16

LOCK ASSY,STEER This part replaces 37100-16G00.

37100-16G02

$210.22

17

BOLT (8X20)

09139-08016

$3.04

18

SWITCH ASSY, STOP LAMP | MODEL K3

37740-24A00

$16.66

18

SWITCH ASSY, STOP LAMP | MODEL K4

37740-45D00

$20.62

19

SPRING | MODEL K3

09443-06005

$3.67

19

SPRING | MODEL K4

09443-06016

$3.58

20

SWITCH ASSY,SID This part replaces 37840-26X50.

37840-26X52

$98.18

20

SWITCH ASSY,SID This part replaces 37840-16G00.

37840-16G01

$99.15

21

BOLT (6X25) | MODEL K3

09103-06211

$3.62

21

BOLT | MODEL K4

01550-06257

$2.31

22

HORN ASSY

38500-17G00

Unavailable

23

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.31

24

NUT This part replaces 08316-10083.

08316-1008B

$2.65

25

RELAY ASSY, FUEL PUMP

38740-24X50

$41.38

26

KEY, BLANK | OPT

37146-33E00

$19.42
