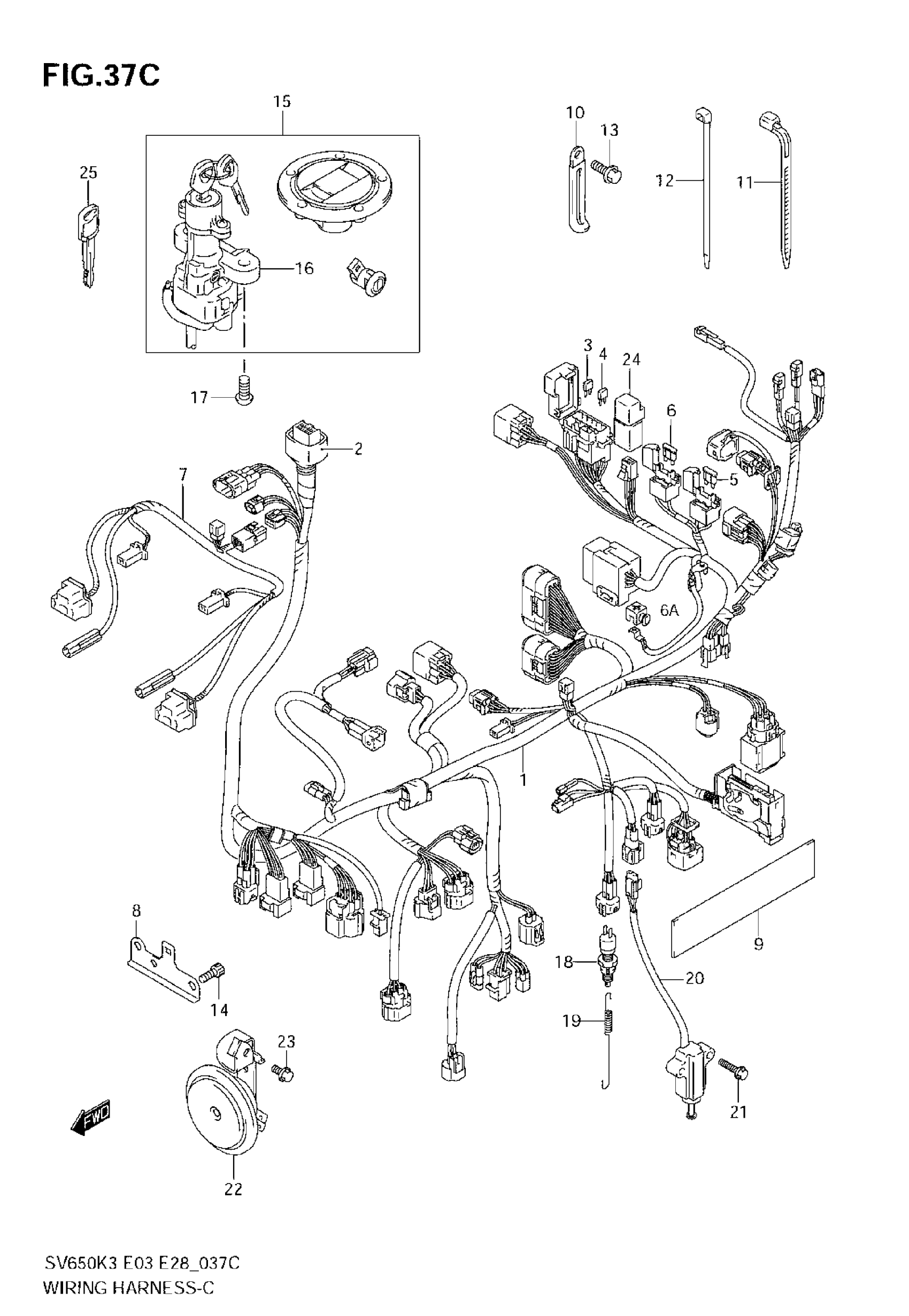

Suzuki SV650 (2007) WIRING HARNESS (SV650SAK7) Diagram

#

Description
Price

1

HARNESS, WIRING, NO.1

36610-17GR0

Unavailable

1

HARNESS, WIRING, NO.1 | E33; Includes Item(s) 2 - 6A

36610-17GQ0

Unavailable

2

CAP

36618-33E00

$8.77

3

FUSE (10A)

09481-10501

$2.06

4

FUSE (15A)

09481-15501

$2.02

5

.FUSE (25A) This part replaces 09481-25101.

09481-25103

Unavailable

6

FUSE (40A)

09481-40101

$9.35

6A

CAP, BATTERY (+)

33624-16G00

$5.78

7

HARNESS,WIRING This part replaces 36620-16G10.

36620-16G11

$161.08

8

HOLDER, COUPLER

36687-17G10

Unavailable

9

PROTECTOR,20X90X1.0 (20X90X1.

33652-26E00

$3.70

10

CLAMP (L:45)

09404-06429

$1.83

10

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

11

CLAMP (L:95)

09407-11401

$2.63

11

CLAMP (L:125)

09407-14403

$2.26

11

CLAMP (L:165)

09407-18402

$2.19

12

CLAMP (L:145)

09407-14407

$3.57

13

BOLT, WIRING HARNESS

01550-0612A

$1.97

14

BOLT, NO.3 This part replaces 07130-06103.

07130-0610B

$3.21

15

LOCK SET This part replaces 37000-16840.

37000-16844

$386.02

15

LOCK SET | E33; Includes Item(s) 16 This part replaces 37000-16850.

37000-16852

$409.95

16

LOCK ASSY,STEER This part replaces 37100-16G00.

37100-16G02

$188.90

17

BOLT (8X20)

09139-08016

$3.37

18

SWITCH ASSY, STOP LAMP

37740-45D00

$18.27

19

SPRING

09443-06016

$3.30

20

SWITCH ASSY,SID This part replaces 37840-16G00.

37840-16G01

$88.27

21

BOLT

01550-06257

$2.30

22

HORN ASSY This part replaces 38500-17G10.

38500-17G11

$92.83

23

BOLT, HORN

01550-0612A

$1.97

24

RELAY ASSY, FUEL PUMP

38740-24X50

$45.20

25

KEY, BLANK | OPT

37146-33E00

$21.21
